Product details

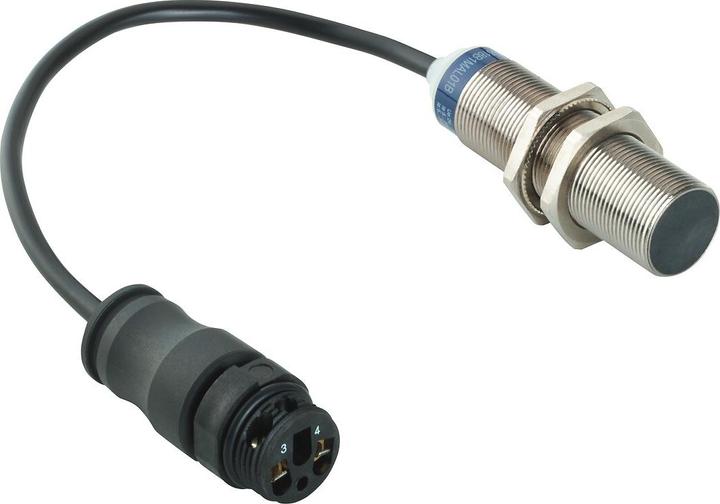

TE Sensors Proximity switch inductive XS618B1MAL01B Manufacturer :TE Sensors Designation :Proximity switch inductive M18, Sn8mm Type :XS618B1MAL01B Length of sensor :62 mm Diameter of sensor :18 mm Mechanical installation condition for sensor :flush Switching distance :8 mm Suitable for safety functions :no Version of switching function :N/O contact Version of switching output :2-wire Version of electrical connection :screw connection Number of semiconductor outputs with signalling function :1 Type of actuation :metallic target Version of interface :without Design of the interface for safety-related communication :without Enclosure type :cylinder, thread Coating of enclosure :nickel-plated Cascadable :no SIL according to IEC 61508 :without Performance level according to EN ISO 13849-1 :without Max. output current at the safe output :200 mA Output current at safe output :200 mA Supply voltage :24..240 V Rated control supply voltage Us at AC 50 Hz :24..240 V Rated control supply voltage Us at AC 60 Hz :24..240 V Rated control supply voltage Us at DC :24...240 V Voltage type :AC/DC Switching frequency :1000 Hz With monitoring function of downstream devices :no Enclosure material :Metal Flameproof :no Explosion protection category for gas :none Explosion protection category for dust :none Immunity to magnetic fields :interference resistant against magnetic direct and alternating field TE Sensors proximity switch inductive XS618B1MAL01B: further details XS6 inductive proximity switch in cylindrical design M18, length 62mm, brass, switching distance Sn 8mm, power supply 24-240 V, 0.15m connection cable + terminals. , EAN: 3389119026789.
