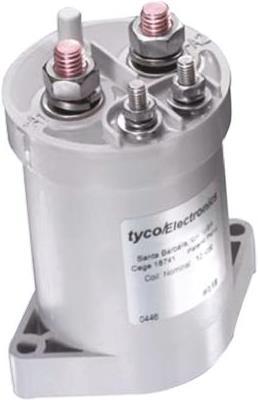

TE Connectivity Contactor,Relay,ElectroMechanical,100A

Ratings
BrandMore from TE Connectivity
Delivered between Wed, 8.4. and Mon, 13.4.
More than 10 pieces in stock at third-party supplier
Supplied by
free shipping

Output voltage2

Product details

Area: Kilovac
Series: LEV100
Number of poles: 1
Rated contact current: 100 A
Contact configuration: 1 normally open
Connection type: Screw fastening
Length: 57.396 mm
Depth: 39.5 mm

High-performance relay from the LEV100 series. Applications include the separation of power and control circuits in motors, circuit protection, safety in industrial systems, as well as switching and transferring vehicle batteries. Compact housing, occupying only 65.5 cm³. Airtight and intrinsically safe. With a voltage withstand of 8 kV between open contacts, the relay is suitable for high voltages and for maintaining circuit separation. Maximum rated voltage: 900 V DC. 15-inch connection wires for coil connection.

Key specifications

Relay type
Power contactor
Output voltage
24 V
Electric current output
100 A
Output current type
DC
Number of poles
1x

General information

Item number
10103568
Manufacturer
TE Connectivity
Category
Relays
Manufacturer no.
LEV100A5ANG 9-1618389-8
Release date
13.11.2018
External links
Manufacturer's site (de)

Relay properties

Relay type
Power contactor
Output voltage
24 V
Electric current output
100 A
Output current type
DC
Number of poles
1x

Origin

Country of origin
Ireland

Voluntary climate contribution

CO₂ emissions
29.26 kg
Climate contribution
CHF 0.70

Product dimensions

Length
125 mm
Width
88 mm
Height
73 mm
