TBS Electronics DCM Link Plate 41mm

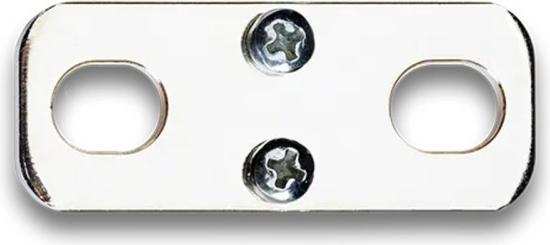

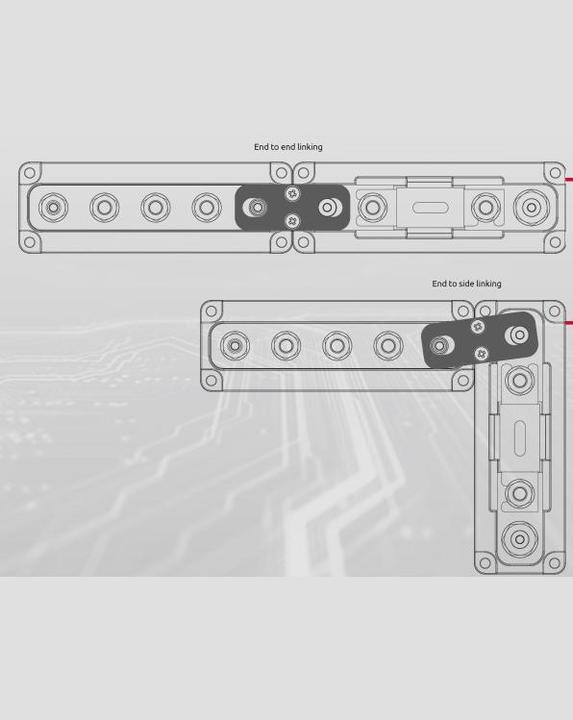

The TBS Electronics DC Modular Link Plate connectors are used in DC Modular systems and serve as connectors between components with the "Grid Optimised Footprint". The link plates are therefore an indispensable part of building a compact and clear installation with DC Modular components such as the TBS Electronics ANL fuse holders 600A, the TBS busbars or the TBS DC Modular battery monitor. The M4 screws and M4 washers are made of stainless steel and are therefore optimally protected against corrosion. The link plate or copper connector is made of tin-plated high-purity copper, which is an excellent conductor of electricity, generates little heat and therefore causes little resistance. The link plate can conduct up to 600A; this can be doubled by stacking two link plates. The version with two holes for M8 and M10 and a hole spacing of 41mm also has two M4 screws for connecting M4 ring cable lugs and is suitable for end-to-end linking and side-to-end linking. The dimensions are 63mm x 25mm x 4mm for the link plate with 41mm hole spacing. Additional information You will receive two link plates of the versions with 41mm hole spacing with your order.
