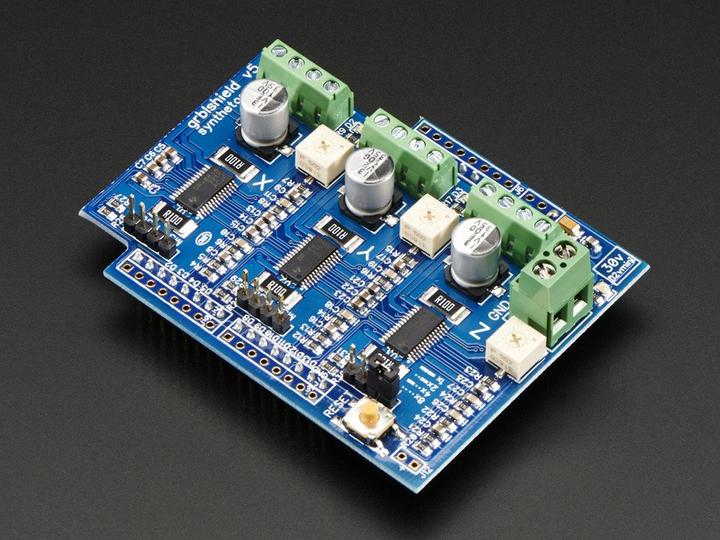

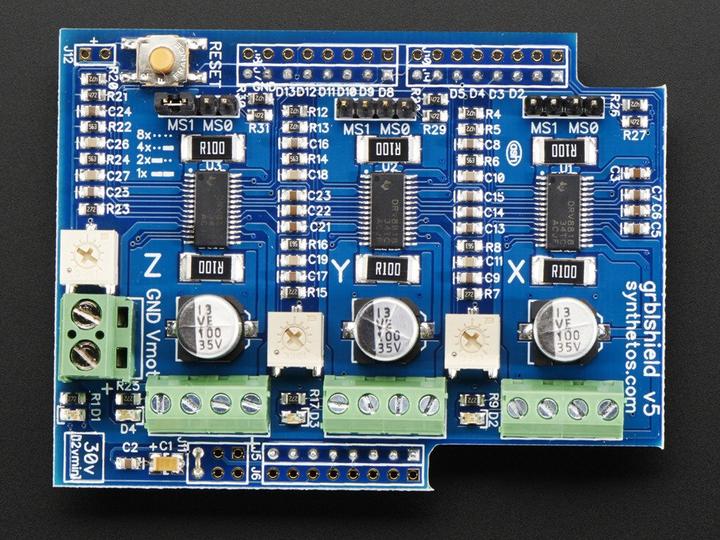

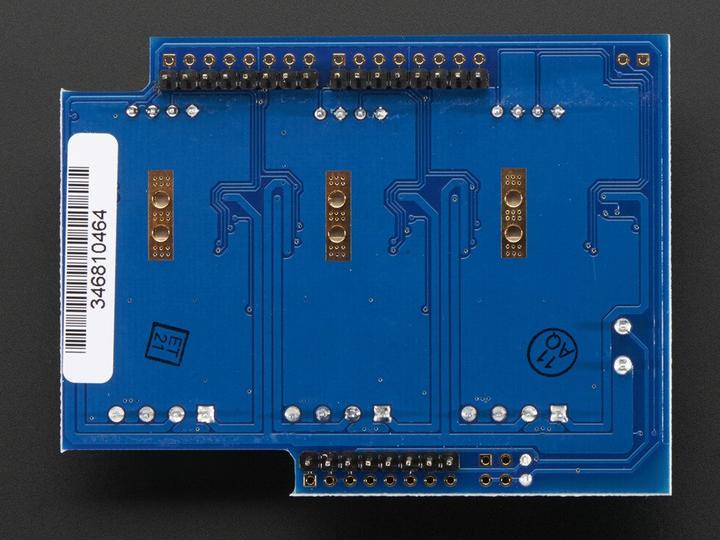

Synthetos gShield (grblShield) V5

Shield
Ratings
Delivered between Sat, 24.5. and Wed, 28.5.
Only 2 items in stock at supplier

Product details

Create your own Arduino-controlled 3-axis CNC machine with the gShield. The gShield for Arduino (formerly known as grblShield) is a complete hardware solution for the CNC motion control system of grbl. The gShield is compatible with the Uno and other 328p versions of the Arduino development platform. Version 5 is now compatible with TinyG, which runs on the Arduino Due. The v5 power bridge allows the gShield to operate as a native 3.3V device from the Due, rather than as a 5V device.

Features:

* 2.5 Amperes per coil
* 12-30 input voltage
* Open pin pass-through
* 8x microstepping
* Screw terminal for voltage input
* Hardware for 3 axes (x, y, z)
* 3 robust stepper drivers TI DRV8818

Technical:

* Dimensions: 58mm x 78mm / 2.3" x 3.1"
* Board thickness: 2mm / 0.08"
* Weight: 31g.

Key specifications

Compatible hardware
Various
Item number
5998546

General information

Manufacturer
Synthetos
Category
Electronics modules
Manufacturer no.
ada-1750
Release date
2.6.2015

Compatibility

Compatible hardware
Various

Electronic module properties

Module type
Shield

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
58.42 mm
Width
78 mm
Height
58 mm
Weight
31 g

Package dimensions

Length
9 cm
Width
7 cm
Height
2 cm
Weight
32 g
