Swit S-4611 Heavy Duty SDI to DVI Converter

The S-4611 is a mini converter for SDI to DVI conversion (DVI-D, 18+1 connector), designed to display up to 3Gb/s broadcast SDI video on DVI monitors, televisions, LED boards, or projectors.

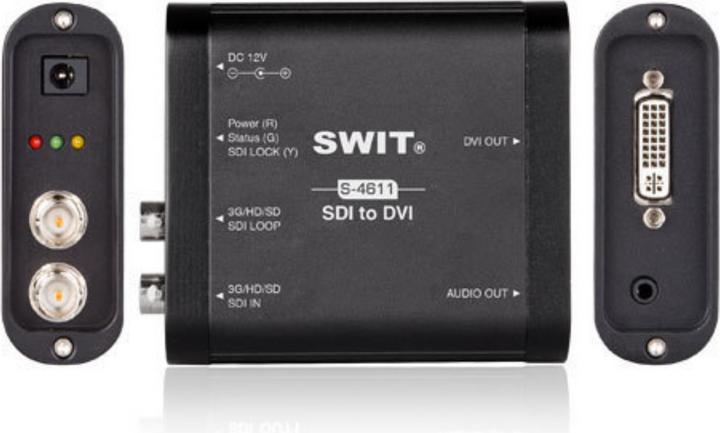

Input and Output:
The S-4611 offers:

• 1× 3G/HD/SD-SDI input
• 1× 3G/HD/SD-SDI loop output (reclocked)
• 1× DVI-D output
• 1× 3.5mm audio output (the SDI to DVI supports the same format conversion only)

Embedded Audio Output:
Via 3.5mm socket, the SDI embedded audio channels 1 and 2 can be converted to analog audio and output through the 3.5mm headphone socket, supporting a 48kHz sample rate.

Status Indicators:

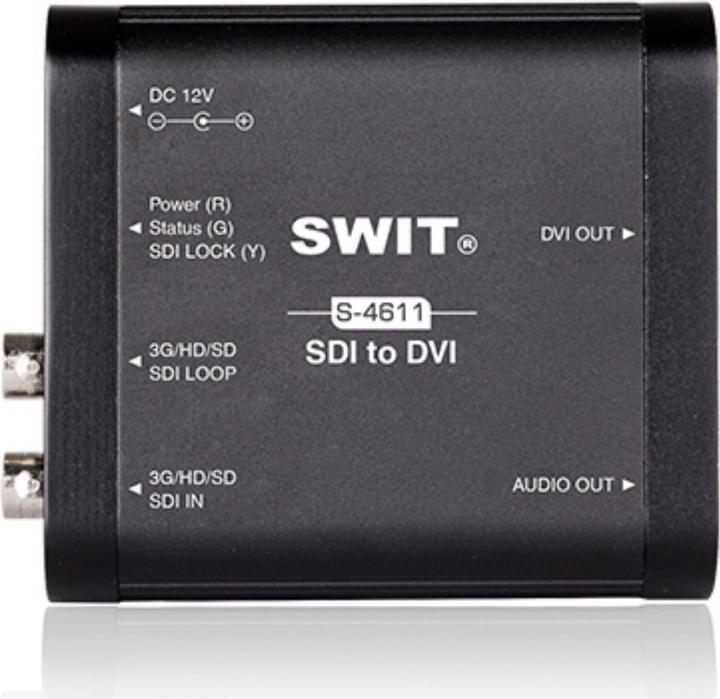

The S-4611 provides three LED indicators to check if the power is connected and if the input/output signal is delivered.

Power Supply:
The mini converter is powered by a pole-tap DC socket. The package includes an AC-DC power adaptor, and you can also connect a DC cable from 6-18V batteries.

Heavy Duty Housing:

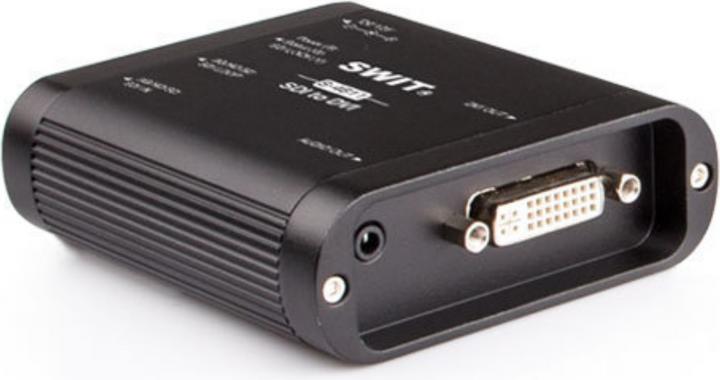

The S-4611 mini converter features a unibody aluminum alloy housing, making it strong for field use and effectively protecting the BNC connectors.

Installation:
The S-4611 provides a bottom 1/4-inch screw thread for fixing on cameras, and an installation plate (A-IP00) is supplied in the package for wall mounting and binding the BNC/DVI cables.

Standard Package:
The standard package includes:

• 1x AC-DC power adaptor (A-PA03)
• 1x Install plate (A-IP00).
