Swit HB-C420S | 420Wh 500W Super-High-load 28V Battery, V-Mount, also ideal for long term use or hig

Battery with V-Mount connection for lights

The HB-C420S offers the world's largest capacity: a 420 Wh portable V-Mount battery and the world's highest constant power load: 500 W, to operate high-performance cinema lights for extended periods. For example, 2 HB-C420S batteries can power the Aputure LS 600C PRO at 100% output for at least 1.2 hours.

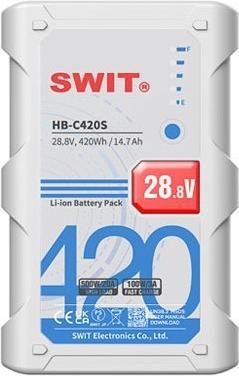

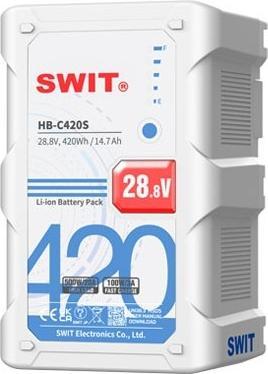

28.8 V, 420 Wh, 500 W load

The HB-C420S consists of 24 lithium-ion cells, 28.8 V (22-33.6 V) high voltage, 420 Wh capacity, and 500 W constant load. Do not use the battery in devices that do not support a 22-33.6 V input.

500 W constant high load

The HB-C420S delivers a high load of at least 500 W even at 1% capacity (peak load up to 650 W) to power high-performance equipment such as film lights.

48 V 750 W power supply solution

With the dual battery tripod adapter SWIT TD-R230S, 2 HB-C420S batteries can provide 48 V 750 W to operate cinema lights like the Skypanel S30/60/120, Orbiter, Creamsource Vortex 4 and Vortex 8, Aputure Nova P300/P600, etc.

Powering the Creamsource Vortex 8

The 2x HB-C420S and TD-R230S power adapter can deliver 48 V 750 W DC to fully power the Creamsource Vortex 8 light, which requires 650 W. The two batteries have a total capacity of 840 Wh, comparable to that of a large floor battery, but are mounted on a lamp holder for easier transport, providing power to the Vortex 8 for at least 1 hour and 20 minutes.

100 W fast charging

The HB-C420S supports 33.6 V DC 100 W fast charging with the PC-P461S charger, saving over 60% of charging time. The 420 Wh battery can be charged from 0 to 80% in 3.9 hours and fully charged in 5.3 hours. Note: The HB-C420S batteries can only be charged with the PC-P461S charger.
