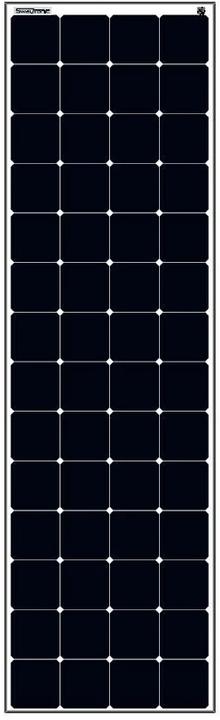

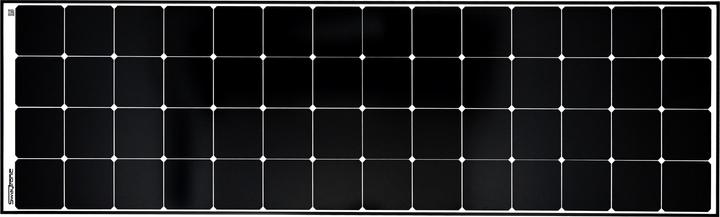

Swaytronic Solar panel rigid 210Watt High Performance

210 W, 9 kg
Delivered between Tue, 7.4. and Wed, 8.4.
More than 10 pieces in stock at supplier
free shipping

Product details

SWAYTRONIC - Solar panel rigid 210Watt High Performance
The advantages at a glance:

  • Rigid solar panel for stationary as well as mobile use- Monocrystalline solar cells from Sunpower® with a very high efficiency of over 22.5%- Rear contact cells ensure maximum possible solar output
  • Pre-assembled solar twin cable with a length of 3.5m

Use:
The Swaytronic solar panels are equipped with monocrystalline solar cells from Sunpower® with a very high efficiency of over 22.5%.The area of application is in the stationary, as well as mobile area. Can be used for caravans, boats, garden houses, stand-alone systems, etc. The connection box is IP65 protected and therefore dustproof and protected against water jets from any angle. 3.5m long connection cable of the solar panel, the panel can be connected directly to the solar charge controller in most applications without additional extension.A series connection of the panels up to 1000V is possible and the solar panels can be connected in parallel to increase the output. In combination with a solar charge controller and a storage battery (LiFePO4) from Swaytronic, a self-sufficient energy system can be realised without much prior knowledge.
Sunpower® back-contact cells:
By using back-contact solar cells from Sunpower®, the maximum solar yield is achieved. With cell efficiencies of over 22.5%, these solar cells are among the top products on the market. Due to the back contacts, the entire cell surface of the solar cell can be used. The Sunpower® solar cells use a broader range of the light spectrum. The result: the module produces power earlier in the morning and also works longer in the evening.
Scope of delivery:
1 x Solar panel rigid 210Watt High Performance.

Key specifications

Cell type
Monocrystalline
Nominal power
210 W
Length
183 cm
Width
53 cm

General information

Item number
21925808
Manufacturer
Swaytronic
Category
Solar panels
Manufacturer no.
7640370545485
Release date
28.3.2023

Colour

Colour
Black
Exact colour description
Black
Frame colour
White

Solar Technology properties

Protection type (IP code)
IP65

Solar panel properties

Cell type
Monocrystalline
Solar panel design
Permanently installedRigid
Nominal power
210 W
Voltage (MPP)
34.70 V
Rated current (MPP)
6.06 A
Short circuit current
6.42 A
Open circuit voltage (UMPP)
40.80 V
Cable length
3.50 m

Battery properties

Battery type
LiFePO4

Voluntary climate contribution

CO₂ emissions
596.07 kg
Climate contribution
CHF 14.17

Product dimensions

Length
183 cm
Width
53 cm
Height
3.50 cm
Weight
9 kg

Package dimensions

Length
185 cm
Width
58 cm
Height
6 cm
Weight
13 kg
