Supermicro SYS-620P-TRT, DDR4-SDRAM, SATA III, DVD-ROM, 120 W, Rack (2U)

Ratings
BrandMore from Supermicro
Delivered between 12.3.2026 and 28.4.2026
Supplied by
free shipping

Product details

The Supermicro Barebone Mainstream SuperServer SYS-620P-TRT is a powerful server solution designed for demanding applications. With support for the Intel Xeon Scalable processor family and a maximum memory capacity of up to 4096 GB DDR4 SDRAM, this server offers high flexibility and performance. It is equipped with two sockets (LGA 4189) that allow for a dual-CPU configuration and features numerous expansion options through multiple PCI-Express slots. The hot-swappable fans ensure efficient cooling, while the redundant power supply enhances reliability. With a compact 2U rack form factor, the SYS-620P-TRT is ideal for data centers and businesses that require a space-saving yet powerful server solution. Support for SATA III and an integrated DVD-ROM drive expand the options for data storage and management.

  • Supports up to 4096 GB DDR4 SDRAM with ECC functionality
  • Two sockets for Intel Xeon Scalable processors
  • Hot-swappable fans for optimal cooling
  • Six PCI-Express slots for expansion options
  • Redundant power supply for increased reliability.

Key specifications

Socket
Socket P+
Processor family
Xeon 3000
Max. memory slots
16
Max. RAM
4096 GB
Number of CPU sockets
2x
Number of rack units
2 U
Item number
17762751

General information

Manufacturer
Supermicro
Category
Server barebones
Manufacturer no.
SYS-620P-TRT
Release date
7.12.2021

Hardware form factor

Design
Rack Server
Number of rack units
2 U

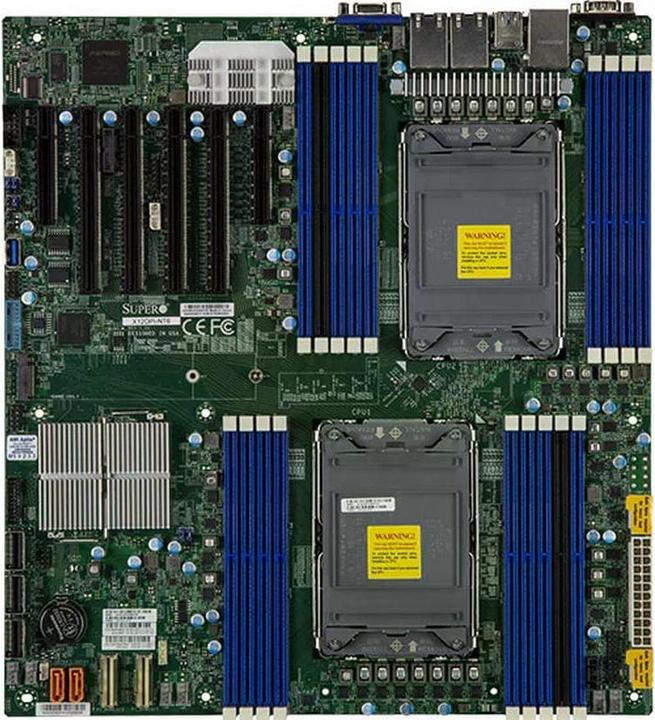

Motherboard properties

Manufacturer
Intel
Chipset
Intel C621
Number of CPU sockets
2x
Socket
Socket P+
Processor family
Xeon 3000

Memory

Memory type
DDR4-RAM
Memory form factor
DIMM
Max. memory slots
16
Max. RAM
4096 GB
RAM speed
3200 MHz
RAM error correction
ECC

Data storage controller

Possible raid configuration
0, 1, 10, 5
Data storage controller
Intel C621

Hard drive slots

Max. number of hard disks
8
Form factor
3.5"
Interface
SATA
Interface version
SATA III

External interfaces

USB ports
USB-A
Exact USB ports
USB-A 2.0 (2x)
Data ports
PS/2 (2x)
Connectivity
Ethernet, Serial

Internal interfaces

Expansion slot
PCI Express x16 (4x), PCI Express x8 (2x)
PCI express version (max.)
4

Network

Network connections
RJ45 (2x)
Ethernet controller
Intel X550
Ethernet controller brand
Intel

Video connections

Video connections
DVI-I (1x), VGA (1x)

Optical drive properties

Optical drive type
DVD-ROM

Mains supply properties

Number of power supply units
2x
Max. number of power supply units
2

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
647 mm
Width
437 mm
Height
89 mm
Weight
16.50 kg
