Supermicro Server BAB SYS-510P-M

Ratings
BrandMore from Supermicro
Delivered between Thu, 2.10. and Wed, 22.10.
Supplied by
free shipping

Product details

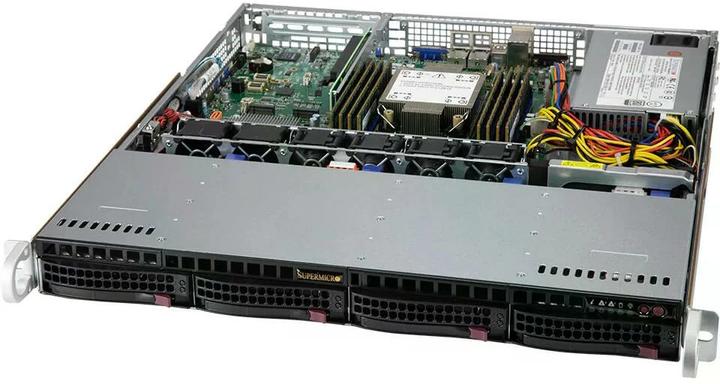

The Supermicro Barebone UP SuperServer SYS-510P-M is a powerful rack server designed for demanding applications. It supports the Intel Xeon Scalable processor family and offers a variety of expansion options. With a compact form factor of 1U, this server is ideal for environments where space is limited. The SYS-510P-M features multiple drive bays that allow for flexible data storage, as well as numerous RAM slots that support high memory capacity. The integrated network ports ensure reliable connectivity and fast data transfer. This barebone server is an excellent choice for businesses that require a scalable and high-performance server solution.

  • Supports up to 3072 GB DDR4 ECC RAM with 8 slots

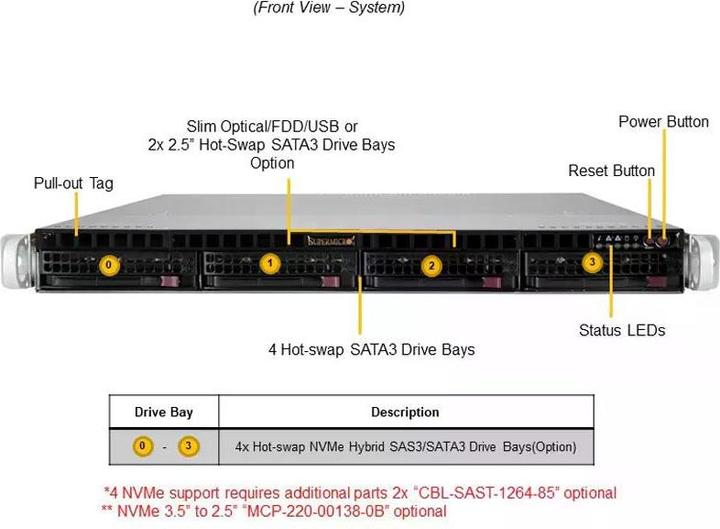

  • Offers 4 hot-swap 3.5'' hybrid SATA3/NVMe drive bays
  • Integrated Intel Ethernet Controller i350 with 2x 1GbE RJ45 ports
  • Expandable with 1 PCI-Express 4.0 x16 slot
  • Compatible with Intel Xeon Scalable processors in LGA 4189 socket.

Key specifications

Number of CPU sockets
1 x
Socket
Socket P+
Processor family
Xeon
Max. memory slots
8
Item number
21421523

General information

Manufacturer
Supermicro
Category
Server barebones
Manufacturer no.
SYS-510P-M
Release date
25.7.2023

Hardware form factor

Design
Rack Server
Number of rack units
1 U

Motherboard properties

Manufacturer
Supermicro
Motherboard model
Supermicro X12STH-SYS
Chipset
Intel C621A
Number of CPU sockets
1 x
Socket
Socket P+
Processor family
Xeon

Memory

Memory type
DDR4-RAM
Memory form factor
LR-DIMM
Max. memory slots
8
Max. RAM
3000 GB
RAM speed
3200 MHz
RAM error correction
ECC
RAM buffer
Unbuffered

Data storage controller

Possible raid configuration
0, 1, 10, 5

Hard drive slots

Max. number of hard disks
12
Form factor
3.5"
Interface
Mini PCI Express

External interfaces

USB ports
USB-A
Exact USB ports
USB-A 3.1 Gen 1 (3x)
Data ports
PS/2 (6x)
Connectivity
Ethernet

Internal interfaces

Internal connection options
M.2 (2x)
Expansion slot
PCI Express x16 (1x)

Network

Network connections
RJ45 Gigabit Ethernet (2x)
Ethernet controller
Intel i350
Ethernet controller brand
Intel

Video connections

Video connections
VGA

Optical drive properties

Optical drive type
No drive

Operating system

Operating system
No operating system

Mains supply properties

Number of power supply units
1 x
Max. number of power supply units
1
Power
500 W

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
43 mm
Width
507 mm
Height
507 mm
Weight
8 kg
