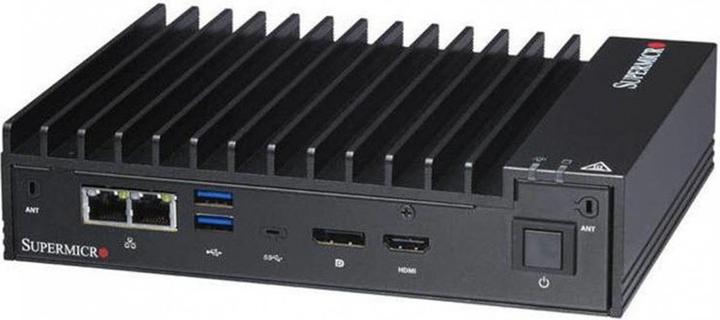

Supermicro E100-9S-E: Intel i5-7300U

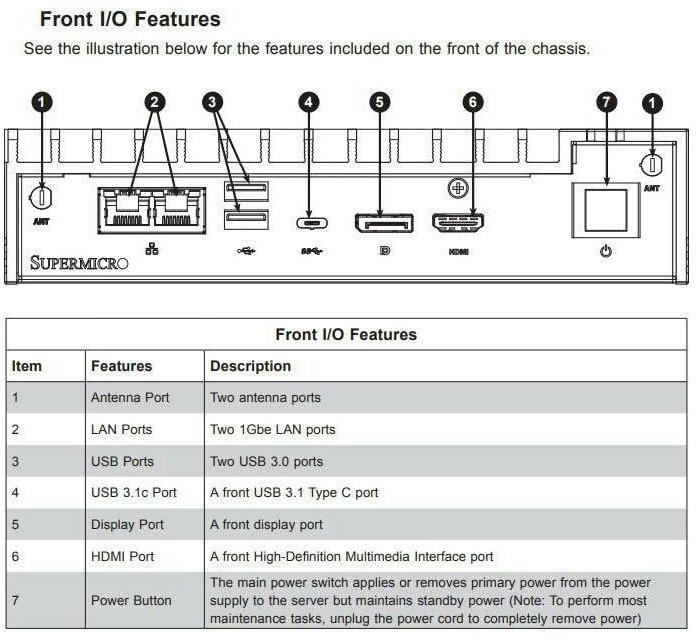

Slim/Nettop barebone. 1x LGA 1356 socket, pre-installed processor: Yes, 7th generation Intel Core i5-7300U. 2x DDR4 DIMM slots, supporting up to 32 GB. 0x M.2 drive bays, M.2 connections: 1. 1x M.2 B-Key 2280 for SATA or PCIe SSD, 1x Full Size Mini-PCI-E. Fanless. Lockable 12V DC 60W power supply. The SuperServer E100-9S-E from Supermicro is a server barebone that can offer ample space and high performance despite its compact dimensions. This barebone is the perfect foundation for use as a kiosk system, interactive information system, or environmental monitor. Processor and memory: The installed board features an Intel Core i5-7300U processor with 3.5 GHz. Additionally, there are two DIMM slots available, allowing you to install up to 32 GB of non-ECC SO-DIMM DDR4 2133 MHz memory. On-board devices: The board includes two Gigabit Ethernet ports. One port with Intel I210IT chip and one port with Intel PHY I219LM chip, enabling you to set up a LAN connection immediately and store data on the server. For high-resolution image rendering, the Intel HD Graphics 620 graphics chip is also already on board. Furthermore, there is an M.2 B-Key 2280 port for an M.2 SSD. The Supermicro brand: Supermicro designs, develops, and manufactures optimized server solutions based on the x86 architecture. The company's extensive product range includes the industry's most comprehensive selection of server, high-end workstation, and storage systems, as well as energy-efficient server components, known as Server Building Blocks Solutions, which encompass server boards, chassis, and power supplies. Additionally, Supermicro offers powerful Universal I/O (UIO) expansion card technology and other system accessories. Special emphasis is always placed on energy efficiency to provide effective solutions optimized for a wide range of customer applications.
