Supermicro Barebone IoT SuperServer SYS-E200-12A-8C

Ratings
BrandMore from Supermicro
Currently out of stock
Free shipping starting at 50.–

Product details

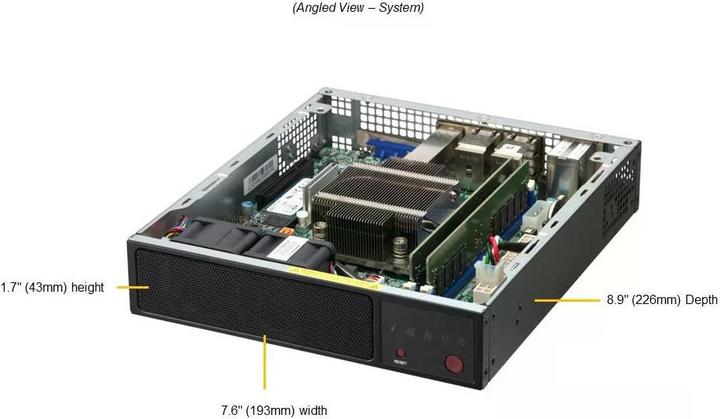

The Barebone IoT SuperServer SYS-E200-12A-8C from Super Micro Computer is a powerful and compact server solution specifically designed for IoT applications. Equipped with an Intel Atom processor and a BGA 2106 socket, this server offers high efficiency and reliability. The SYS-E200-12A-8C supports up to 128 GB of DDR4 ECC RAM, making it ideal for memory-intensive applications. With a variety of network connections, including two 10GbE SFP+ and four GbE RJ45 ports, it enables flexible and fast network connectivity. The server is designed for use in demanding environments and delivers robust performance in a compact form factor of 225.8 mm in depth. The ability to integrate M.2 drives expands the storage capacity and flexibility of the system.

  • Supports up to 128 GB of DDR4 ECC RAM for enhanced data integrity

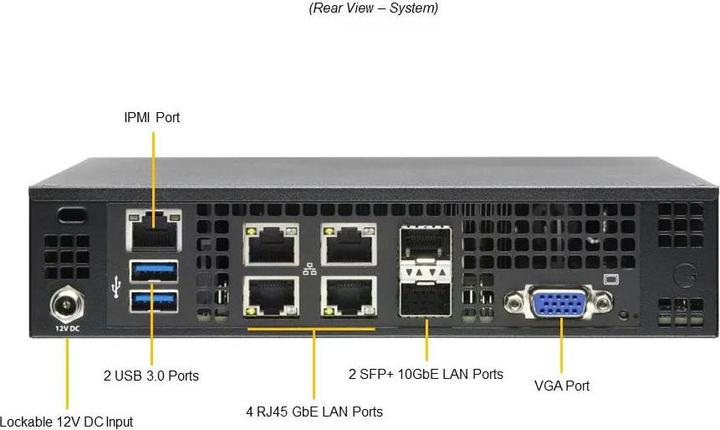

  • Two 10GbE SFP+ LAN ports for high network speeds
  • Dedicated LAN for IPMI for remote management
  • Compatible with M.2 drives for expandable storage
  • Lockable 12V DC 150W power adapter for secure power supply.

Key specifications

Number of CPU sockets
1x
Socket
BGA 2106
Max. memory slots
2
Max. RAM
128 GB

General information

Item number
46922896
Manufacturer
Supermicro
Category
Server barebones
Manufacturer No.
SYS-E200-12A-8C
Release date
27.6.2024
External links
Manufacturer's site (de)

Motherboard properties

Manufacturer
Supermicro
Chipset
Intel SoC
Number of CPU sockets
1x
Socket
BGA 2106
Form factor
Mini-ITX

Memory

Memory type
DDR4-RAM
Memory form factor
R-DIMM
Max. memory slots
2
Max. RAM
128 GB
RAM speed
2933 MHz
RAM error correction
ECC
RAM buffer
Registered

Data storage controller

Data storage controller
Intel SoC

Hard drive slots

Max. number of hard disks
1
Form factor
M.2
Interface
Mini PCIe, SATA

External interfaces

USB ports
USB-A
Exact USB ports
USB-A 3.0 (2x)
Connectivity
Ethernet, LAN, USB

Internal interfaces

Internal connection options
M.2 (1x)

Network

Network connections
RJ45 Gigabit Ethernet (4x), SFP+ (2x)
Max. port speed
10000 Mbit/s

Video connections

Video connections
VGA (1x)

Optical drive properties

Optical drive type
No drive

Operating system

Operating system
No operating system

Mains supply properties

Number of power supply units
1x
Max. number of power supply units
1

Product dimensions

Length
225.80 mm
Width
195 mm
Weight
3.40 kg
