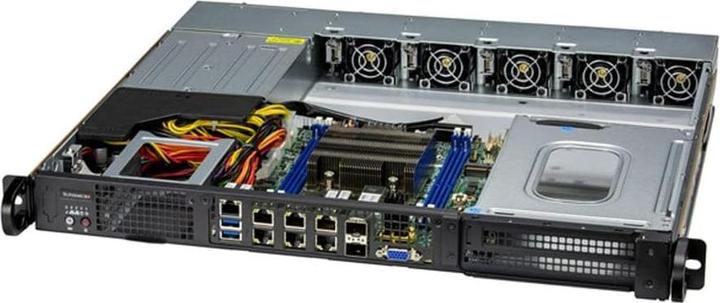

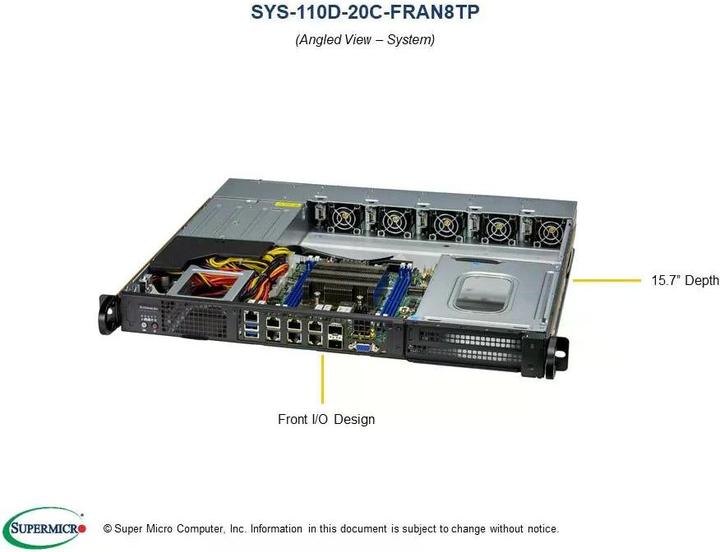

Supermicro Barebone IoT SuperServer SYS-110D-20C-FRAN8TP

Ratings
BrandMore from Supermicro
Currently out of stock
Free shipping starting at 50.–

Product details

The Barebone IoT SuperServer SYS-110D-20C-FRAN8TP from Super Micro Computer is a powerful server solution specifically designed for IoT applications. Equipped with an Intel Xeon D processor and a maximum RAM capacity of 512 GB, this server offers high processing power and reliability. Support for ECC RAM ensures improved error correction, which is particularly important in critical applications. The server features multiple Ethernet ports, including 1G RJ45 and 25G SFP28, allowing for flexible network connectivity. With two 2.5-inch drive bays and an M.2 slot, the SYS-110D-20C-FRAN8TP provides ample storage options. Its compact design and rack-mountable capability make it an ideal choice for businesses needing a space-saving and high-performance server solution.

  • Supports up to 512 GB DDR4 ECC RAM with 4 LRDIMM slots
  • Equipped with an Intel Xeon D-2796NT processor with 120W TDP
  • Offers multiple Ethernet ports for flexible networking options
  • Two 2.5-inch drive bays and an M.2 slot for expandable storage
  • Supports RAID configurations 0, 1, 5, and 10 for enhanced data security.

Key specifications

Rack height units
1 U
Number of CPU sockets
1x
Processor family
Xeon D
Max. memory slots
4
Max. RAM
512 GB

General information

Item number
46922879
Manufacturer
Supermicro
Category
Server barebones
Manufacturer no.
SYS-110D-20C-FRAN8TP
Release date
27.6.2024

Hardware form factor

Design
Rack Server
Rack height units
1 U

Motherboard properties

Manufacturer
Supermicro
Number of CPU sockets
1x
Processor family
Xeon D

Memory

Memory type
DDR4-RAM
Memory form factor
LR-DIMM
Max. memory slots
4
Max. RAM
512 GB
RAM speed
2933 MHz
RAM error correction
ECC
RAM buffer
Registered

Data storage controller

Possible raid configuration
0, 1, 10, 5
Data storage controller
Intel SoC

Hard drive slots

Max. number of hard disks
2
Form factor
2.5"
Interface
SATA
Interface version
SATA III

External interfaces

USB ports
USB-A
Exact USB ports
Micro USB-B 3.1 (2x)
Data ports
PS/2 (4x)
Connectivity
LAN, Serial

Internal interfaces

Internal connection options
M.2 (1x), S-ATA (8x), USB 2.0 Header (4x)
Expansion slot
PCI Express x16 (1x)
PCI express version (max.)
4

Network

Network connections
RJ45 10 Gigabit Ethernet (2x), RJ45 Gigabit Ethernet (4x), SFP28 (2x)
Ethernet controller
Intel I350-AM4, Intel SoC, Intel X550-AT2
Ethernet controller brand
Intel
Max. port speed
25000 Mbit/s

Video connections

Video connections
DisplayPort (1x)

Mains supply properties

Number of power supply units
2x
Max. number of power supply units
2
Power
800 W

Product dimensions

Length
399 mm
Width
437 mm
Weight
8.16 kg
