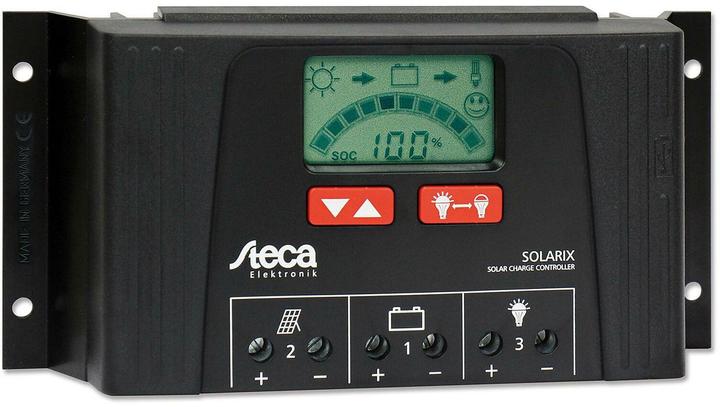

State of charge determination and modern charging technology for battery maintenance and monitoring. PWM control and automatic voltage adjustment. Protection class IP30, negative grounding of one or positive grounding of multiple terminals possible. Overcharge and undercharge protection as well as reverse polarity protection for module, load, and battery. Input voltage always 2 V above the battery voltage. Module and load current 25 A, system voltage 12 V (24 V).
Nominal voltage | 24 V |
Nominal current | 25 A |
Safety function | Anti-tilt, Overload, Overvoltage |
Item number | 17686746 |
Manufacturer | Steca |
Category | Charge controller |
Manufacturer no. | PR3030 |
Release date | 16.7.2021 |
Nominal voltage | 24 V |
Nominal current | 25 A |
Power output | 25000 W |
Safety function | Anti-tilt, Overload, Overvoltage |
Display type | Digital |
Protection type (IP code) | IP30 |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |

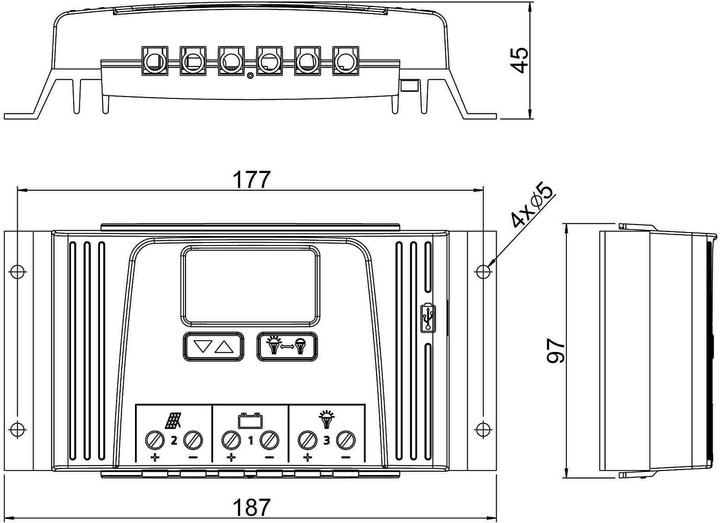

Length | 4.50 cm |
Width | 18.70 cm |
Height | 9.70 cm |
Weight | 350 g |
