Stahl 8040/1380X-54C06SA70

Stahl Control Device System 130903

Manufacturer: Stahl
Designation: Control Device System Series ConSig 8040
Type: 130903
Number of control points: 3
Number of push buttons: 2
Number of indicator lights: 1
Number of mushroom buttons: 1
Suitable for emergency stop: yes
Rated control supply voltage Us at AC 50 Hz: 0..690 V
Rated control supply voltage Us at AC 60 Hz: 0..690 V
Rated control supply voltage Us at DC: 0..110 V
Color of the housing top: gray
Material of the housing: plastic
Number of contacts as normally closed: 2
Number of contacts as normally open: 2
Protection class (IP): IP66
Protection class (NEMA): 4X

With the control device system of the 8040 series from R. Stahl, you can clearly organize control devices. The 3 combinable sizes and modular design offer flexibility. There is a standard version and individual variants available.

Control device system, Series ConSig 8040, explosion-proof, Type: 8040/1380X-54C06SA70-23D01SA05-09XXXSA05,
Rated operating voltage AC: 690 V,
Rated operating current: 10 A,
Housing material: polyester resin,
Application area (zones): 1, 2, 21, 22,
Gas explosion protection: II 2 G Ex db eb IIC T6 Gb,
Dust explosion protection: II 2 D Ex tb IIIC T80 °C Db,
Minimum ambient temperature: -60 °C,
Maximum ambient temperature: +40 °C,
Protection class (IP): IP66,

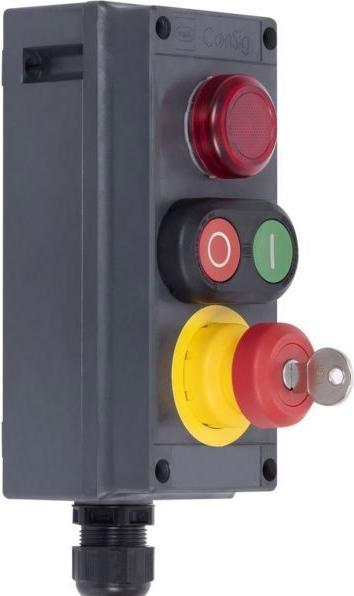

Installation position top: indicator light attachment, all colors,
Installation element top: LED indicator light,
Installation position middle: double push button, red "0", green "I",
Installation element middle: contact element,
Switching arrangement middle: normally open / normally closed,
Installation position bottom: emergency stop mushroom key button,
Installation element bottom: contact element,
Switching arrangement bottom: normally open / normally closed,
Cable entry bottom: 1 x M25 Ø 7 ... 17 mm,
Flanges and plates: without flanges, without plates.
