Stäubli Y-splitter cable MC4 EVO2 - 2xM 1xF (2-/+)

Solar system mounting material
Delivered Wed, 9.7.
10 pieces in stock at third-party supplier
Supplied by
Free shipping starting at 50.–

Product details

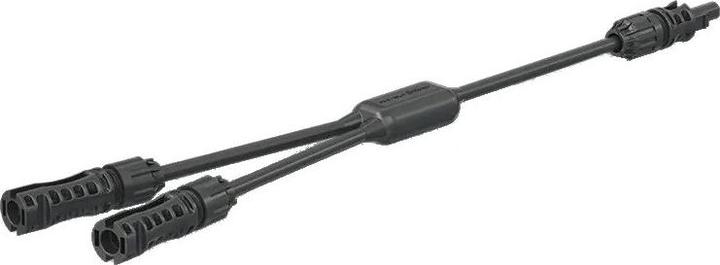

MC4-Evo 2 Y-splitter cable (PV-K/SPL-Y)

The Y-splitter cables or Y-pieces MC4 Evo 2 feature 2x sockets (W) and 1x plug (M) for parallel or parallel-serial installation of solar modules.

We supply the original MC4 plugs and sockets from Stäubli / Multi Contact. MC4 is the most commonly used coupling in the solar sector, with many solar modules and solar charge controllers supplied with MC4 contacts as standard.

Our DC cabling system offers first-class quality and outstanding functionality. The unique manufacturing process with vulcanization provides the highest IP protection and ensures excellent performance even under harsh climatic conditions.

Technical data

Connector system: MC4-Evo2

Rated voltage: 1500 V DC

Rated current (TÜV - 2PfG 1913): 53A (6mm2)

Ambient temperature range: -40°C to +85°C

Protection class (mated, unplugged): IP65/IP68 (1m, 1h), IP2X

Installation material: PA, EVA, XLPE

Contact material: Copper, tin-plated

Max. contact resistance of the connector: < 0.5 mOhm

Certified according to TÜV Rheinland 2PfG 1913 R 60164319

Type: PV-K/SPL-Y-6-15/15-15EPP/ES-0050
Art. No. 32.0333.

Key specifications

Item number
49909093

General information

Manufacturer
Stäubli
Category
Solar energy equipment
Manufacturer no.
15.320.333ES
Release date
4.10.2024

Material

Material
EVAPOLYAMIDEXlpe

Solar Technology properties

Solar technology type
Solar system mounting material
Protection type (IP code)
IP65IP68
Plug type
MC4

Solar panel properties

Cable length
0.50 m

Power supply

Electric current output
53 A

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

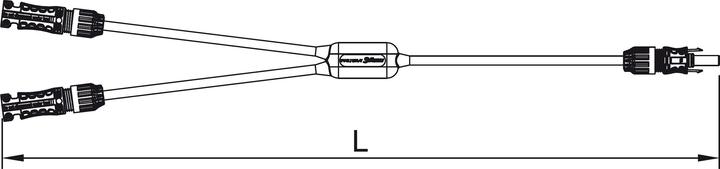

Length
50 cm

Package dimensions

Length
45 cm
Width
4 cm
Height
4 cm
Weight
114 g
