Product details

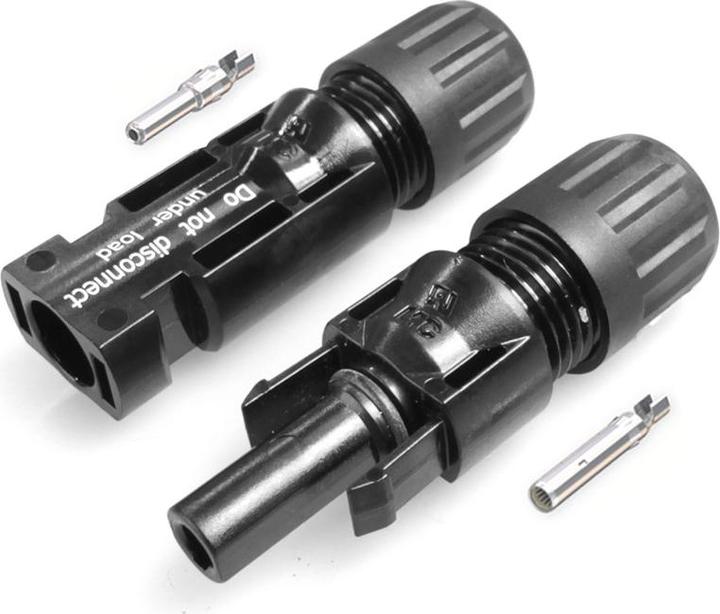

MC4 plug and socket pair for solar cables with 10mm² wire cross-section and an outer diameter of 5.5-9.0mm.
In 12V solar applications, large line losses can occur due to insufficient cable cross-sections. Therefore, we offer the proven MC4 connector system for 10mm² cables.
Important technical properties:
- For solar cables with an outer diameter of 5.5 - 9.0mm
- Contact protection, unplugged IP2X
- Protection class, plugged in IP67
- Temperature application range -40° to 90° C
- Maximum current: 42A
- Cable strain relief according to IEC 61984 (06.2001)
- Contact system with MC contact lamellae
- Contact material: copper, tin-plated
- System voltage up to 1000V
Other versions available:
- MC4 connector for 4-6mm solar cables
Scope of delivery:
1x pair of Stäubli MC4 connectors for 10mm cables, PV-KST4/10II + PV-KBT4/10II.
Item number | 34729236 |
Manufacturer | Stäubli |
Category | Solar energy equipment |
Release date | 17.5.2023 |
Sales rank in Category Solar energy equipment | 23 of 2447 |
Material group | Metal |
Material | Copper, Tinned |
Solar technology type | Solar connector |
Protection type (IP code) | IP67 |
Plug type | MC4 |
Socket type | MC4 |
Electric current output | 42 A |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 2 x |
Length | 1 cm |
Width | 0.90 cm |
Height | 0.90 cm |
Length | 10 cm |
Width | 9 cm |
Height | 2 cm |
Weight | 24 g |
