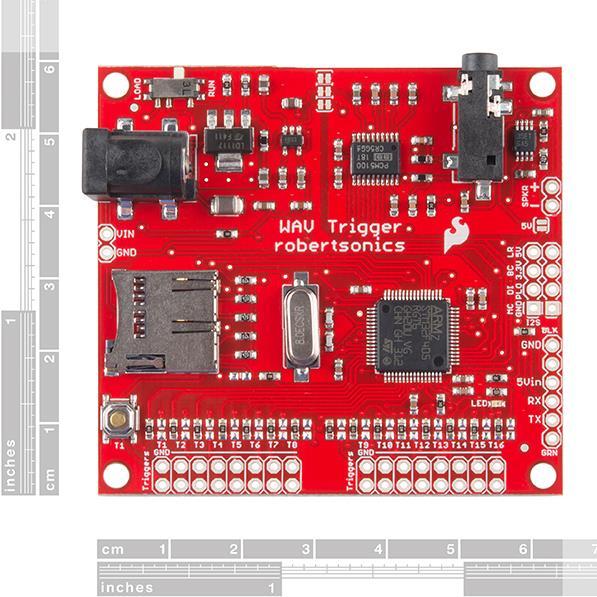

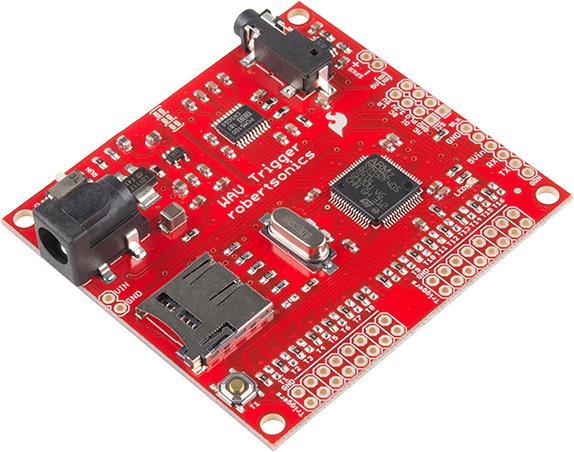

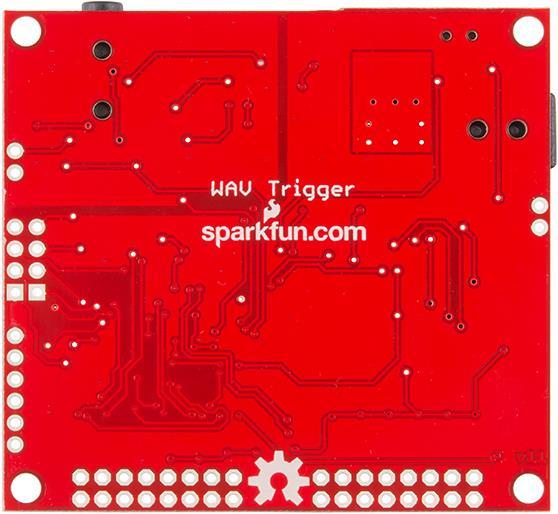

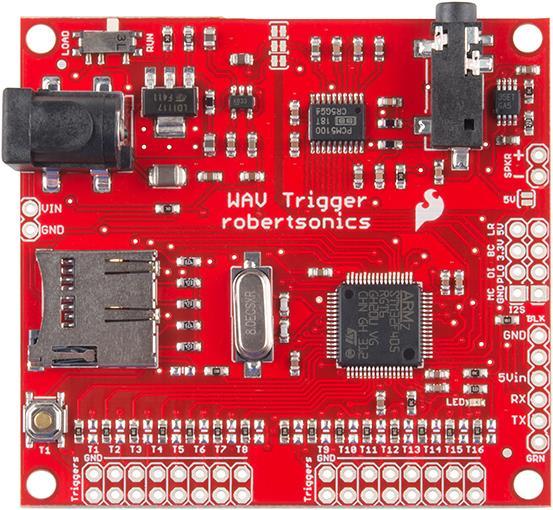

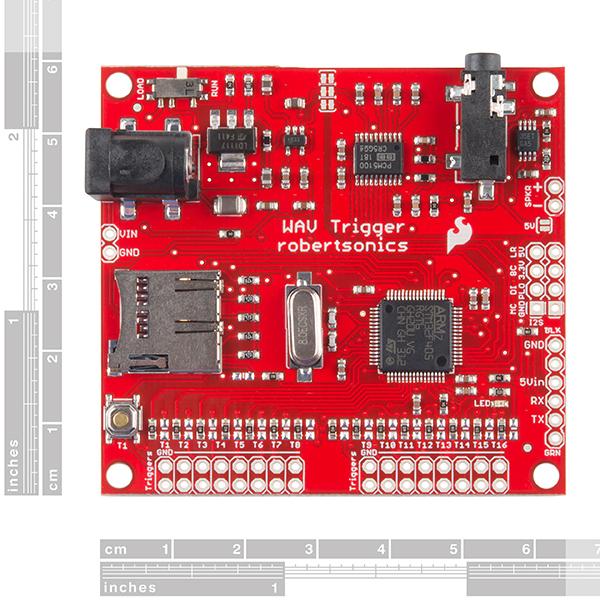

SparkFun WAV Trigger

Art-Nr 5999148
 only 1 piece(s) in our warehouse

Availability

Mail delivery

  • only 1 piece(s)
    in our warehouse

PickMup

Collection

  • Basel: today at 13:10
  • Bern: today at 12:45
  • Dietikon: today at 14:30
  • Geneva: today at 13:30
  • Kriens: today at 11:20
  • Lausanne: today at 15:40
  • St Gallen: today at 15:30
  • Winterthur: today at 13:30
  • Wohlen: today at 11:00
  • Zurich: today at 12:30

If ordered immediately.
Information subject to change.

View details

Description

The WAV Trigger is a high-fidelity polyphonic audio player that allows
you to do more than just add music and sound effects to your project.
The WAV Trigger plays and blends up to 14 uncompressed 16-bit, stereo,
44.1kHz wav files - the same quality as audio CD's. The board has a
line-level stereo audio output jack for use with headphones or
external amplifiers and an on-board mono audio amplifier with a 2-pin
connector for driving a speaker directly.

Tracks can be controlled using 16 trigger inputs or a serial control
port that supports a rich serial command protocol, as well as MIDI.
Trigger inputs can be connected directly to switches and buttons, or
to digital outputs from sensors or another microcontroller. Alternate
functions allow triggers to play sequential or random tracks, pause
and resume groups of tracks and even control volume.

The serial control protocol allows complex functions like controlling
the volume of individual tracks, starting multiple tracks in
sample-sync and smooth cross-fading between tracks. An Arduino library
makes it easy to do real-time control and audio mixing.

The serial port even supports MIDI protocol, meaning that you can use
the WAV Trigger to build a polyphohonic sampling synthesizer to play
your own sounds. MIDI Channels and Note numbers are mapped to track
numbers, and MIDI Controllers adjust volume as well as attack and
release times. The WAV Trigger audio engine implements voice stealing
(oldest playing voices are used for new MIDI Notes when all 14 voices
are being used), note attack (fade-in), note release (fade-out) and
latency averages less than 10 ms.

Check the link in the documents below to keep up with the latest
Firmware updates!

Note: This product is a collaboration with Robertsonics. A portion of
each sales goes back to them for product support and continued
development.

Features:

* Input voltage: 6-12VDC
* Current Consumption: 80mA idle, 120-200mA playing
* Low Power option: ~5mA idle.
* File system: FAT16/FAT32
* Audio out: 1/8" stereo headphone jack
* Audio out: On-board 2W mono amplifier speaker output
* Trigger inputs: 3.3-5V, default active low inputs with internal
pull-ups
* Serial: Full duplex, 8N1, 57.6K baud, MIDI
* Trigger Latency: ~8ms, 12ms max
* Polyphonic: Play and mix up to 14 stereo tracks independently and
simultaneously

Links:

* User Guide [1]
* Demo Video [2]
* Firmware Updates and Utilities [3]

Links:
------
[1] http://robertsonics.com/wav-trigger-online-user-guide/
[2] http://www.youtube.com/watch?v=UUkcs_XL5x0
[3] http://robertsonics.com/wav-trigger-downloads/
more

Specifications

Click 'show more' to display specifications.

General information

Manufacturer SparkFun
Product type Electronics modules
Item number5999148
Manufacturer no.WIG-13660
