SparkFun RedBot Mainboard

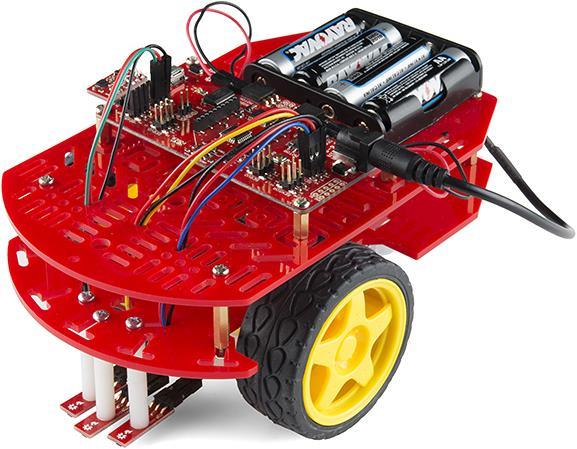

The RedBot mainboard is a robot development platform that works with the Arduino IDE. The RedBot is a combination of a motor driver and Arduino with various headers and connections, eliminating the need for stacking multiple shields. By using the RedBot accessory boards and your own chassis, you can build a robot tailored to your needs.

The RedBot comes pre-programmed with the Optiboot (Uno) bootloader. Simply connect a USB Mini-B cable, and you can use it in the Arduino IDE with our or your own example code. Optional sensor systems are attached to the mainboard via 6-pin headers or jumper cables to enhance its capabilities.

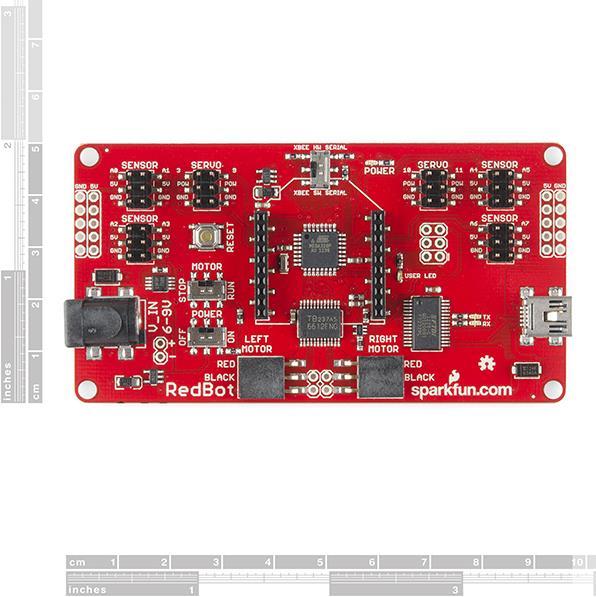

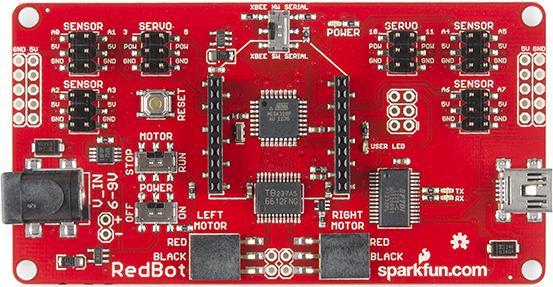

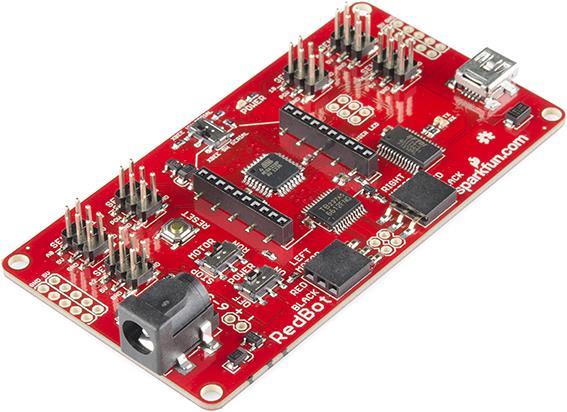

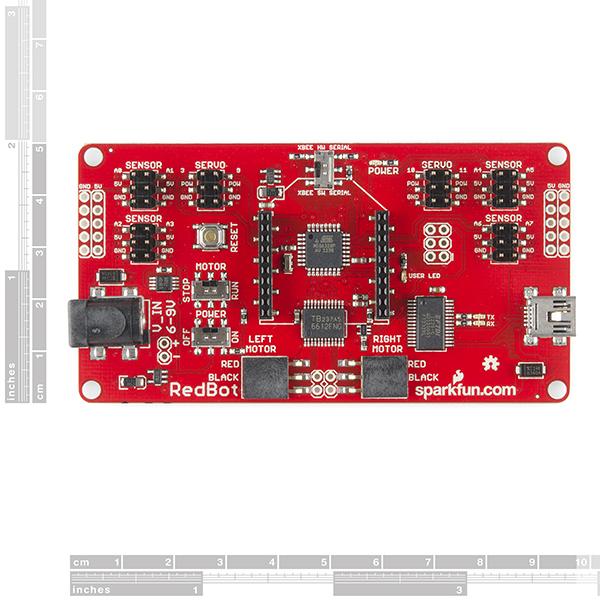

Features:

* 5V logic
* 6-9V input voltage via barrel jack or 2-pin header
* ATmega328P (pre-programmed)
* TB6612FNG dual DC motor driver
* USB programmable via FTDI
* XBee connection with serial HW/SW switch
* 2x 3-pin motor connectors (female)
* 2x 6-pin connectors (optional) for servo head
* 4x 6-pin connectors for optional sensor head

Documents:

* Quick Start Guide
* GitHub.
