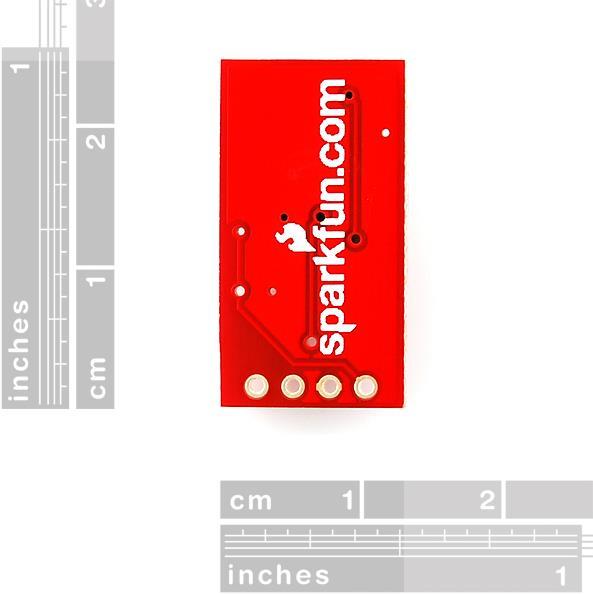

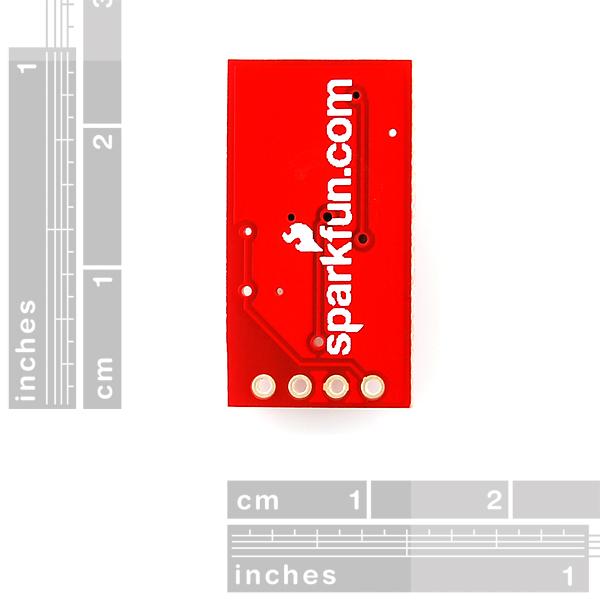

SparkFun LMV358 OpAmp Breakout

Various
Save CHF1.20
Ratings
Delivered between Sat, 28.6. and Wed, 2.7.
Only 3 items in stock at supplier
Free shipping starting at 50.–

Product details

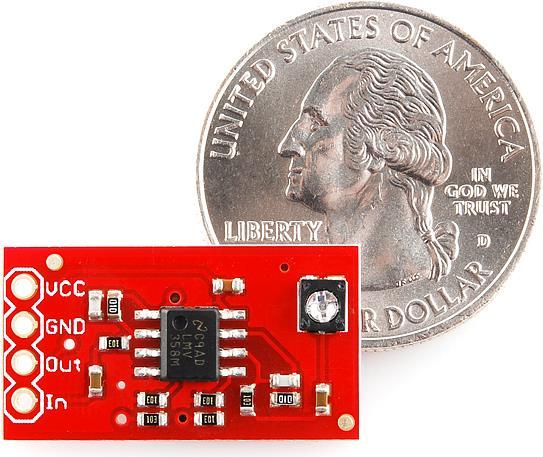

This is a simple Op Amp breakout board, set up as a 2-stage amplifier
with a gain of 100 (gain of 10 for each stage).

The on-board trim pot sets the signal level between the stages, not
the feedback path. The bandwidth is set to 15.9kHz by a pair of
feedback capacitors, or over 100kHz with the caps removed. The LMV358
opamp can source up to 160mA and works well as a low impedance
driver/buffer.

Key specifications

Compatible hardware
Various
Item number
5998698

General information

Manufacturer
SparkFun
Category
Electronics modules
Manufacturer no.
BOB-09816
Release date
7.5.2014
Sales rank in Category Electronics modules
18 of 6580

Compatibility

Compatible hardware
Various

Electronic module properties

Module type
Various

Voluntary climate contribution

CO₂-Emission
Climate contribution

Package dimensions

Length
9.50 cm
Width
5.70 cm
Height
0.40 cm
Weight
2 g

30-day right of return
24 Months Warranty (Bring-in)
