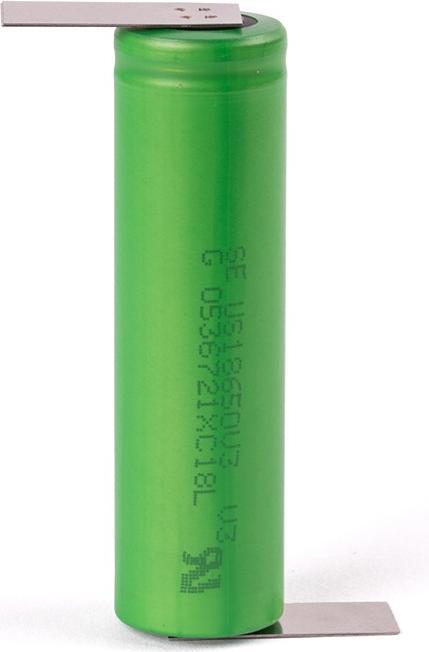

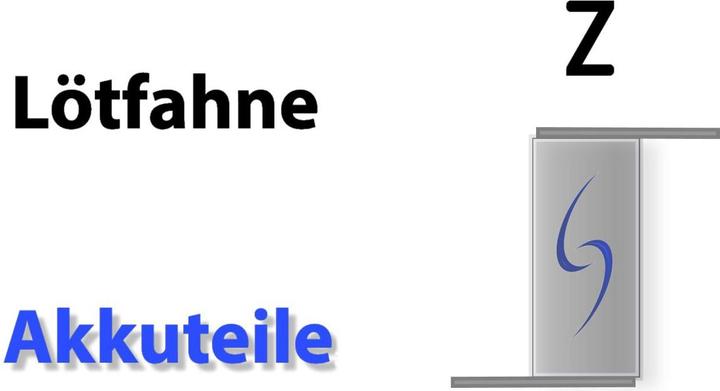

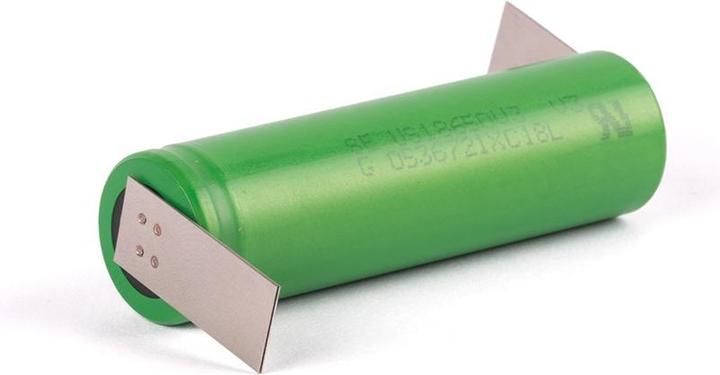

Sony US18650V3 - 2250mAh, 3.6V - 3.7V + Z solder tag

Sony US18650V3 unprotected - solder tag Z max. current output 10A. These items are custom made and are excluded from exchange.

Typical capacity: 2250mAh
Minimum capacity: 2150mAh
Nominal voltage: 3.7V - 3.6V
Discharge voltage: 4.2V
End discharge voltage: 2.5V
Max. current output: 4C = 10A
Chemical current output: 4C = 10A
Chemical additives: LiNiMnCoO2
Protective circuit: none
Plus pole (structure): flat (Flat Top)
Diameter: 18 mm ± 0.05 mm
Height: 64.8 mm ± 0.05 mm
Weight: 46 g ± 0.01 g
Charge method: CC-CV

Safety instructions: Lithium cells may only be operated with protective electronics. Please note that lithium cells may only be used by authorized personnel. Incorrect handling or short-circuiting can lead to fire or explosion.

Further characteristics: Lithium-ion batteries are thermally stable and are not subject to memory effect. They are based on lithium and have a high energy density.

Technical data for "Sony US18650V3 - 2250mAh, 3.6V - 3.7V + Z-soldering lug":

Notes: A special charger is required for charging lithium-ion batteries, which charges the batteries using a special charging method (CCCV = constant current, constant voltage). The batteries must not be charged above a voltage of 4.2 volts, otherwise there is a risk of fire and explosion. It is advantageous to charge the batteries only up to approximately 4.1 volts, as this significantly increases the service life or the number of charging cycles (possibly up to double). Only lithium-ion chargers may be used for charging. However, cheap chargers sometimes have the disadvantage that they do not switch off safely at the end of the charging process, but continue to charge the batteries with a small charging current, which can be dangerous.

Furthermore, rechargeable batteries and batteries do not belong in the household waste. Please dispose of them as prescribed by law in the municipal collection points or in the containers provided by retailers.
