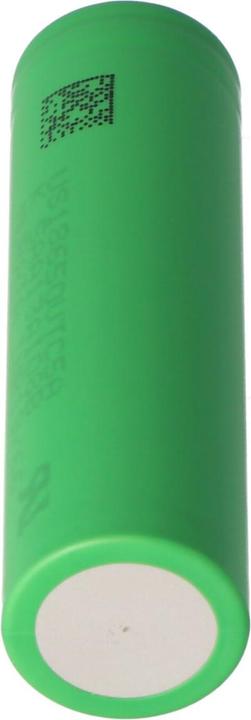

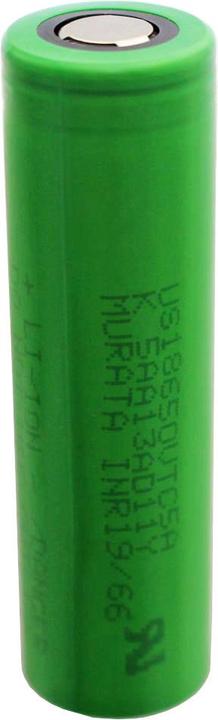

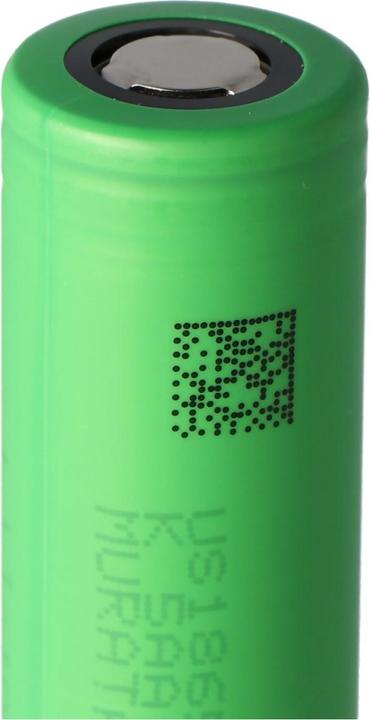

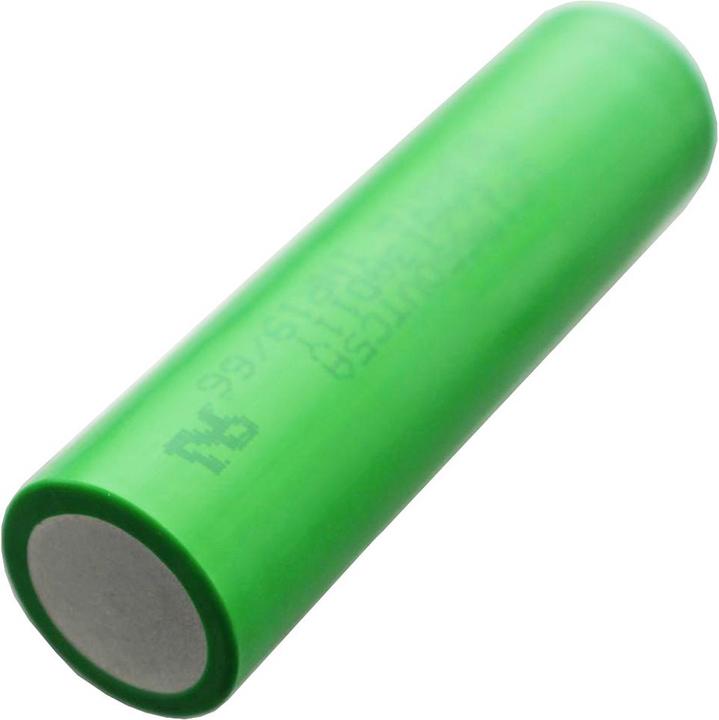

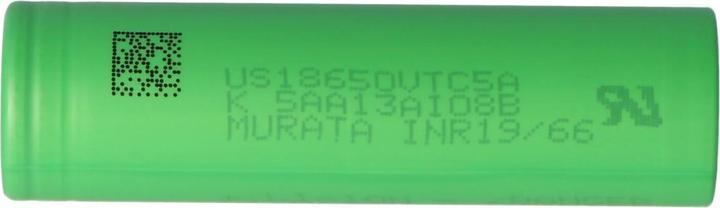

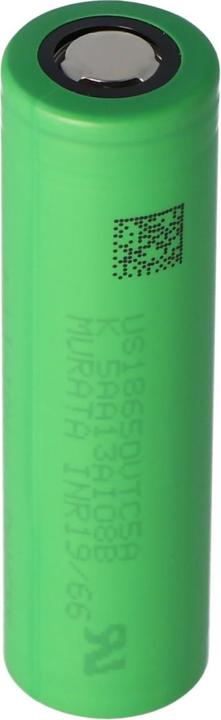

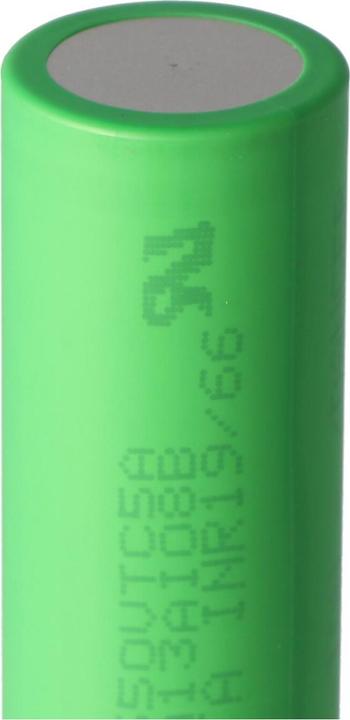

Sony Konion US18650VTC5A (Flat Top)

The successor to the well-known Sony US18650VTC5. A new high-quality high-drain cell developed by Sony with an even higher discharge current of up to 35A! Perfectly suited for tools and industry. Sony Konion US18650 VTC5A unprotected.

Type:
Capacity: 2600mAh
Min. Capacity: 2500mAh
Nominal Voltage: 3.6V - 3.7V
Charge Termination Voltage: 4.2V ± 0.05V
Discharge Termination Voltage: 2V
Charge Current: 0.25A - 2.5A
Max. Charge Current: 6A
Max. Continuous Discharge Current: 35A
Chemical Composition: LiNiMnCoO2
Protection Circuit: no

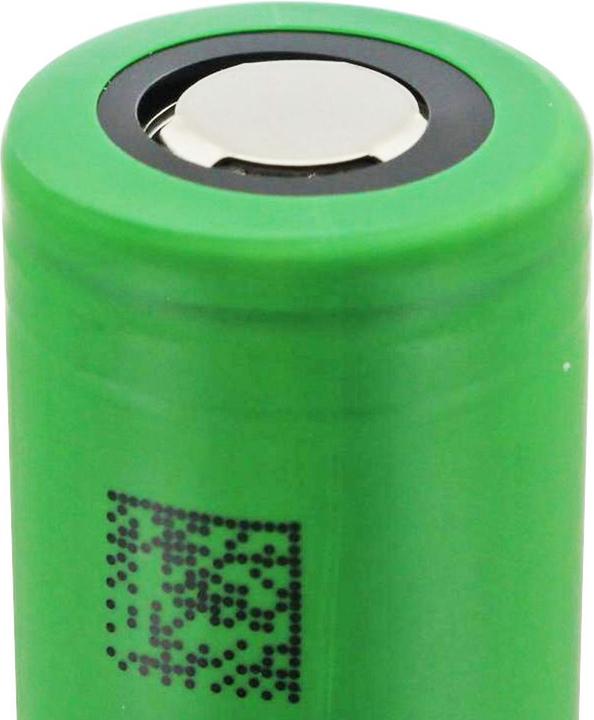

Positive Terminal: flat (Flat Top)
Diameter: 18.2 mm ± 0.05 mm
Height: 65.0 mm ± 0.15 mm
Weight: 45 g ± 0.1 g
Charging Method: CC-CV

Test Results (Discharge Curve): Dampfakkus
Test Results: Lygte-Info

Safety Instructions: Lithium cells should only be operated with protective electronics! Please note that lithium cells may only be used by authorized professionals. Improper handling or short circuits can lead to fire or explosion.

Additional Features: Lithium-ion batteries are thermally stable and do not suffer from the memory effect. They operate on the basis of lithium and are characterized by a high energy density.

Technical Data for "Murata / Sony Konion US18650VTC5A - 2600mAh, 3.6V - 3.7V (Flat Top)":
Normal Charge Current/Charging Time: 2500mA/3h
Max. Charge Current/Charging Time: 4000mA/2.5h
Operating Temperature for Charging: 0 °C - 45 °C
Operating Temperature for Discharging: -20 °C - 60 °C

Notes: Charging lithium-ion batteries requires a special charger that charges the batteries using a specific charging method (CCCV = constant current, constant voltage). The batteries must not be charged above a voltage of 4.2 volts, as this poses a risk of fire and explosion. It is advantageous to charge the batteries only up to about 4.1 volts, as this significantly increases their lifespan or number of charge cycles (potentially up to doubling). Only lithium-ion chargers should be used for charging.
