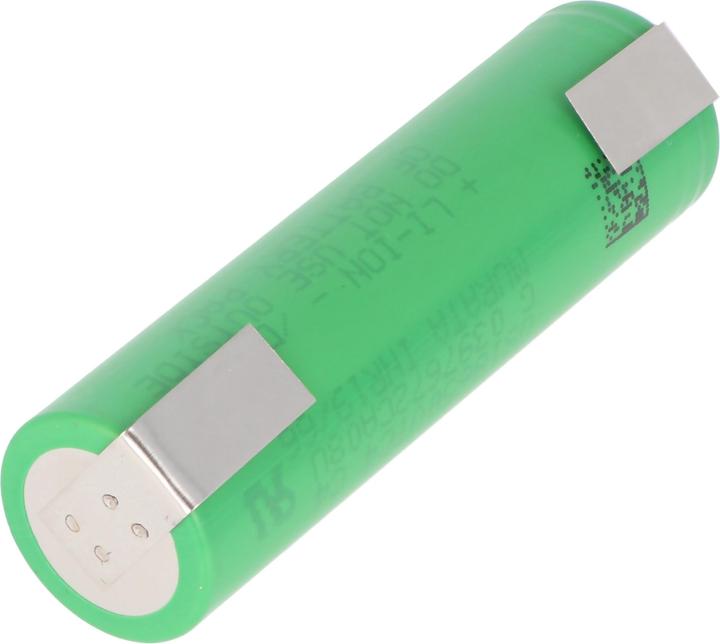

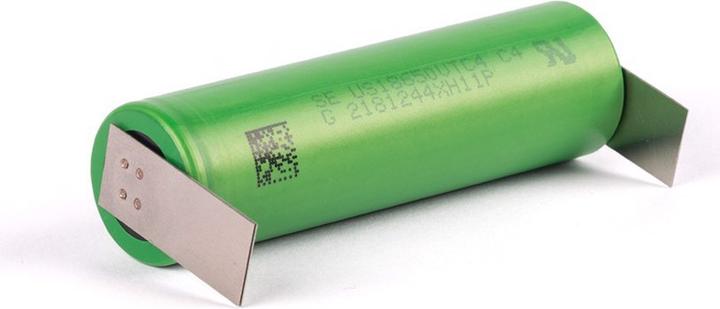

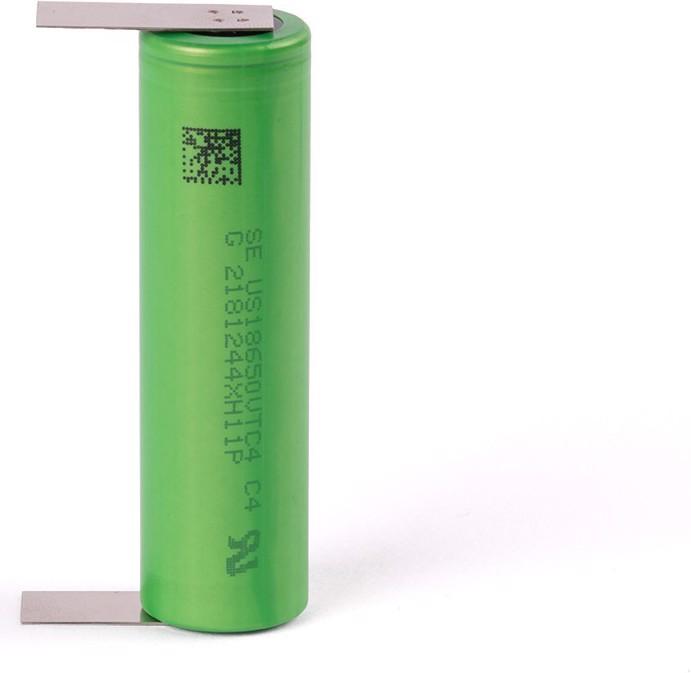

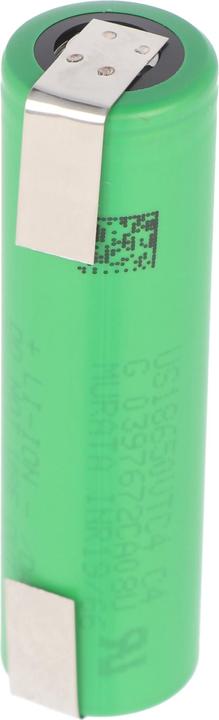

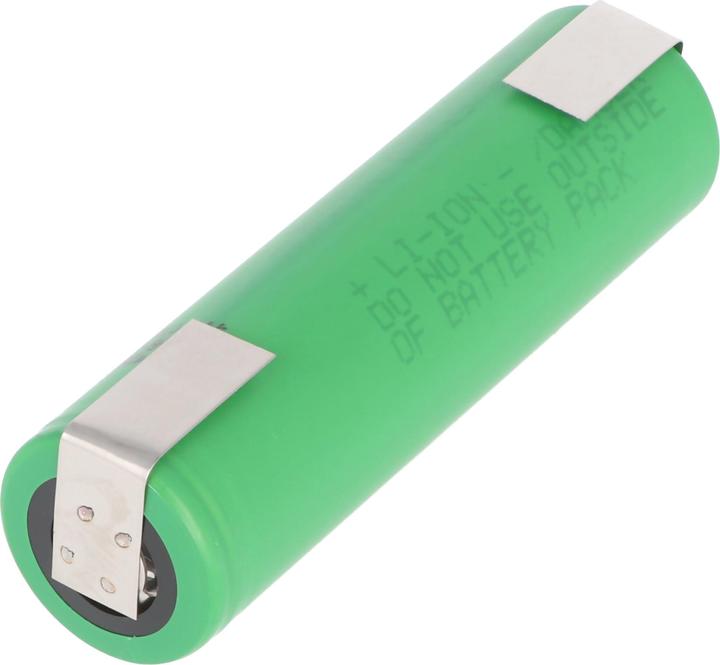

Sony Konion US18650 VTC4 battery - solder tag U

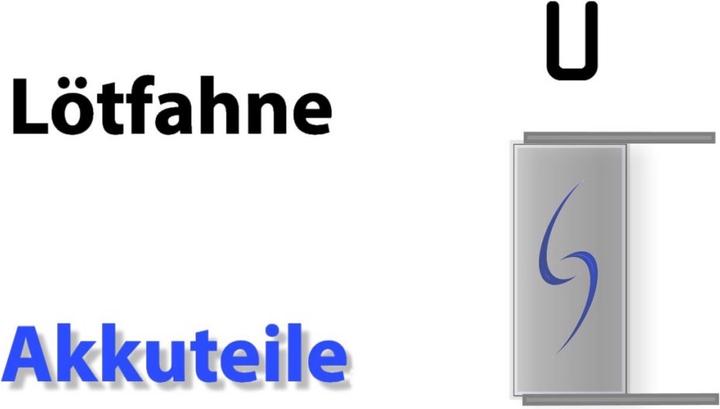

A high-quality high-current cell developed by Sony with a discharge current of up to 30A (15C). Ideal for tools and industrial applications. The Hilumin solder tab is spot-welded and measures: Width: 10 mm, Length: 25 mm. These items are custom-made and are non-returnable.

Type. Capacity (mAh): 2100mAh
Min. Capacity (mAh): 2000mAh
Nominal Voltage (Volt): 3.6V
Charge End Voltage (Volt): 4.2V ± 0.05V
Discharge End Voltage (Volt): 2.5V
Max. Charge Current (Amperes): 4A
Max. Discharge Current: 15C = 30A
Chemical Composition: LiNiMnCoO2
Protection Circuit: no
Positive Terminal (Design): flat (Flat Top)
Diameter (mm): 18.2 mm ± 0.05 mm
Height (mm): 65.1 mm ± 0.15 mm
Weight (g): 46 g ± 0.01 g
Charging Method: CC-CV
Test Results (Discharge Curve): Dampfakkus

Safety Notes: Lithium cells should only be operated with protective electronics. Please note that lithium cells may only be used by authorized personnel. Improper handling or short circuits can lead to fire or explosion.

Additional Features: Lithium-ion batteries are thermally stable and do not suffer from memory effect. They operate based on lithium and are characterized by high energy density.

Technical Data for "Sony Konion US18650 VTC4 - 2100mAh, 3.6V + Solder Tab U":

Notes: Charging lithium-ion batteries requires a special charger that charges the batteries according to a specific charging method (CCCV = constant current, constant voltage). The batteries must not be charged above a voltage of 4.2 volts, as this poses a risk of fire and explosion. It is advantageous to charge the batteries only up to about 4.1 volts, as this increases their lifespan.
