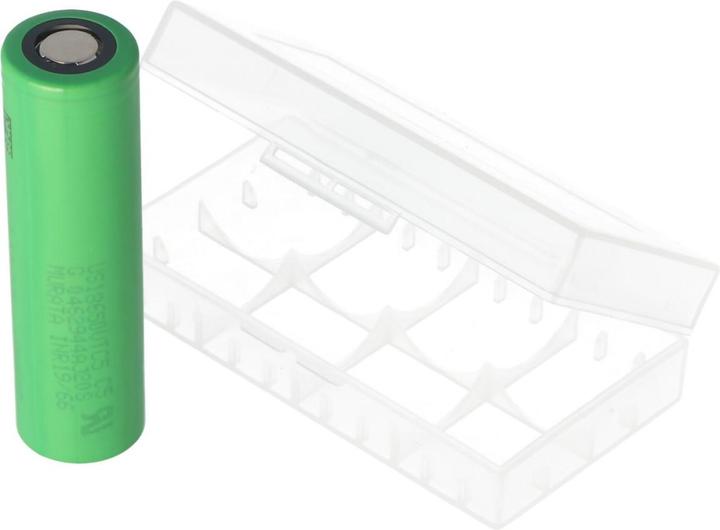

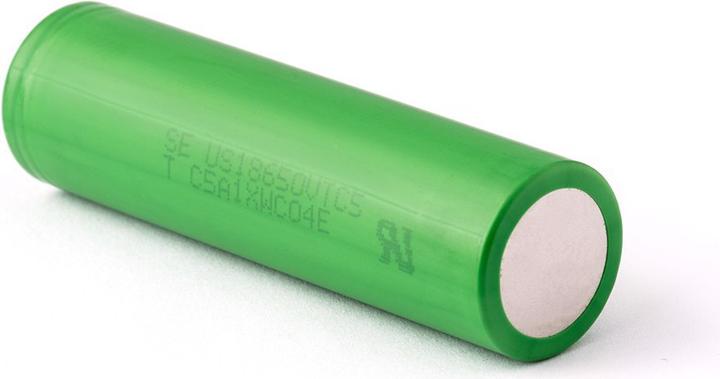

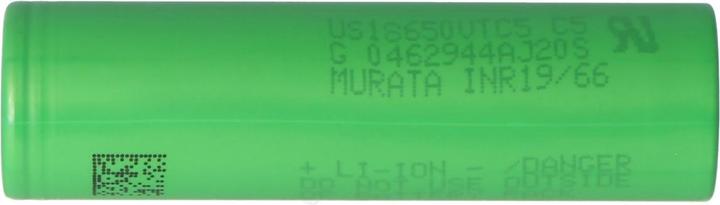

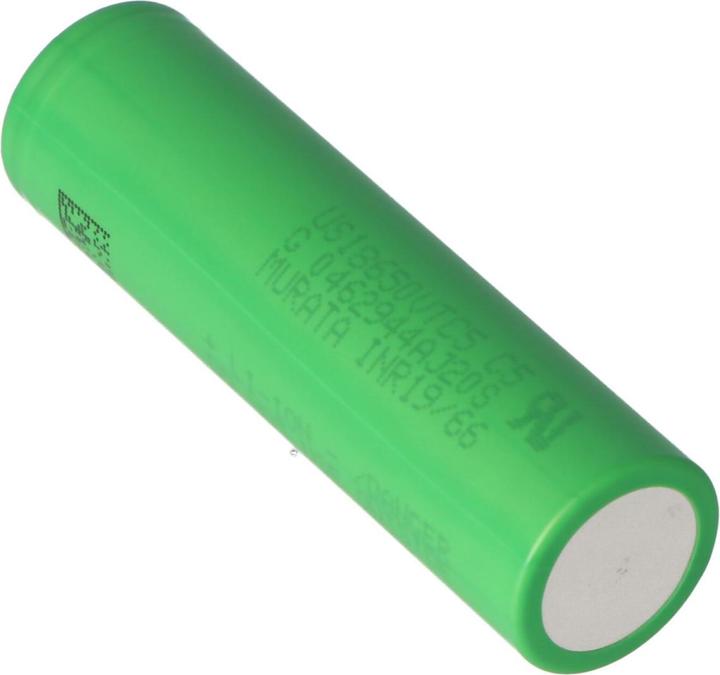

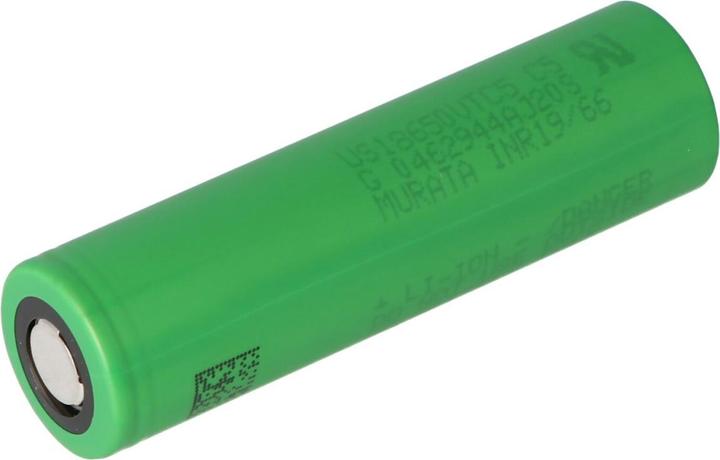

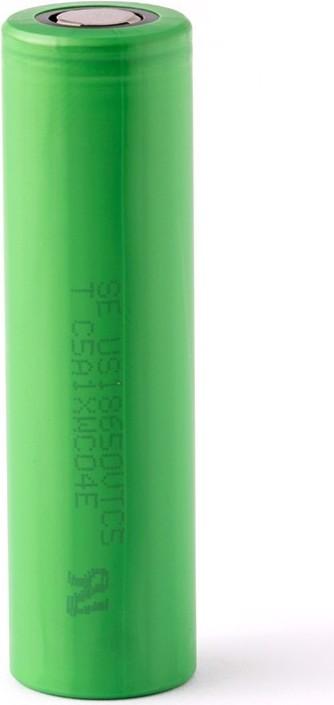

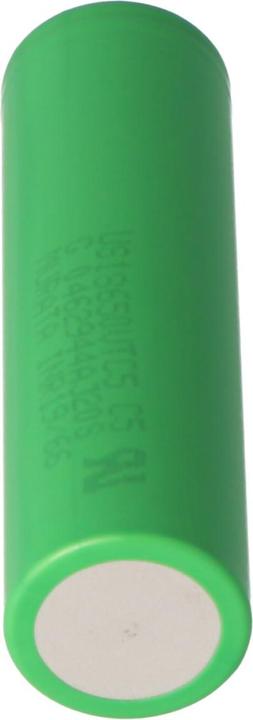

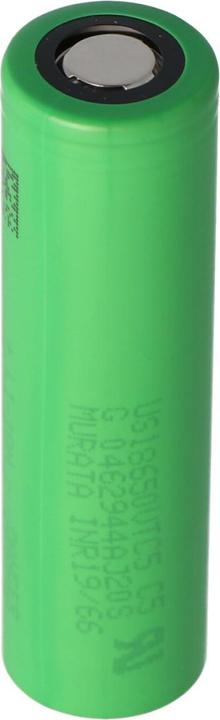

Sony Battery US18650VTC5 maximum 30A current output (flat top) incl. battery protection box

A high-quality high-drain cell developed by Sony, with a discharge current of up to 30A (12C). Ideal for tools and industrial applications. Sony Konion US18650 VTC5 unprotected.

Technical specifications:

• Capacity: 2600mAh
• Min. Capacity: 2500mAh
• Nominal voltage: 3.6V - 3.7V
• Charge termination voltage: 4.2V ± 0.05V
• Discharge termination voltage: 2.0V
• Charge current: 0.25A - 2.5A
• Max. charge current: 4A
• Max. constant discharge current: 12C = 30A
• Chemical composition: LiNiMnCoO2
• Protection circuit: no

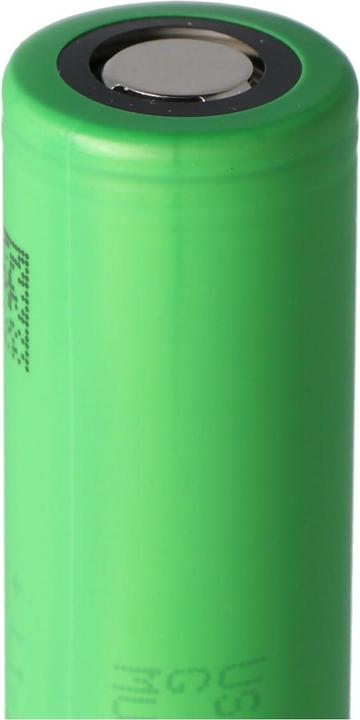

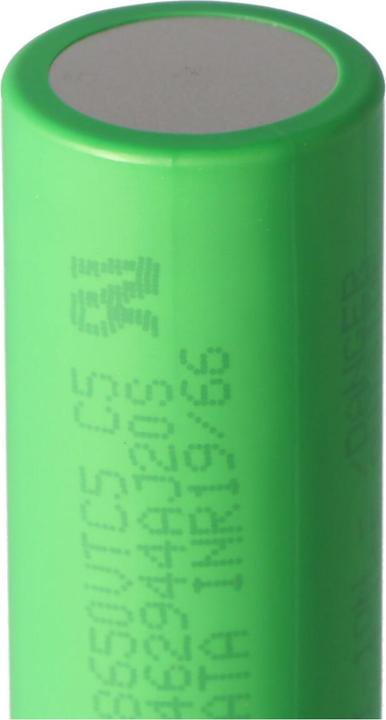

• Positive terminal: flat (Flat Top)
• Diameter: 18.2 mm ± 0.05 mm
• Height: 65.0 mm ± 0.15 mm
• Weight: 45 g ± 0.1 g
• Charging method: CC-CV

Safety notes: Lithium cells should only be operated with protective electronics. Please note that lithium cells should only be used by authorized personnel. Improper handling or short circuits can lead to fire or explosion.

Additional features: Lithium-ion batteries are thermally stable and do not suffer from memory effect. They operate on the basis of lithium and are characterized by high energy density.

Operating temperature for charging: 0 °C - 45 °C
Operating temperature for discharging: -20 °C - 60 °C

Notes: Charging lithium-ion batteries requires a special charger that charges the batteries using a specific charging method (CCCV = constant current, constant voltage). The batteries must not be charged beyond a voltage of 4.2 volts, as this poses a risk of fire and explosion. It is beneficial to charge the batteries only up to about 4.1 volts, as this significantly increases their lifespan and number of charge cycles. Only lithium-ion chargers should be used for charging.
