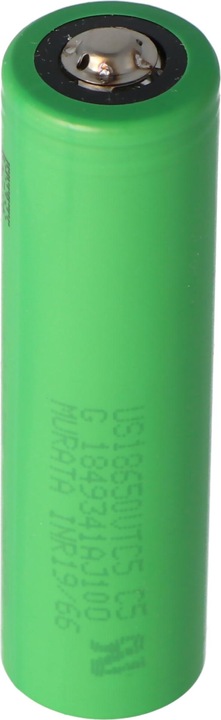

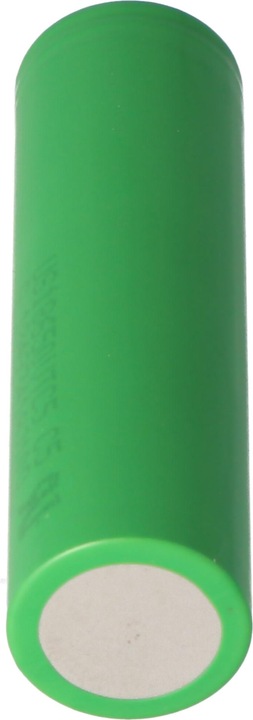

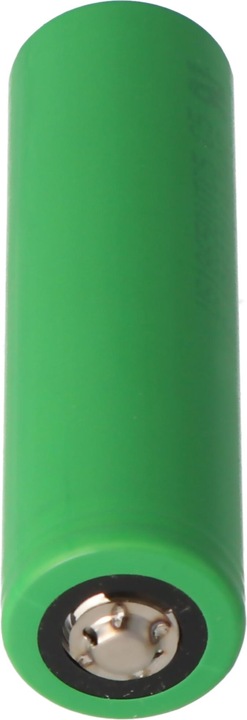

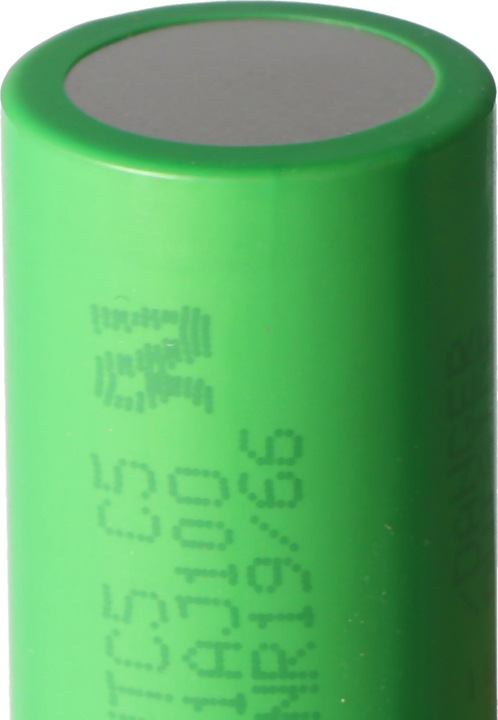

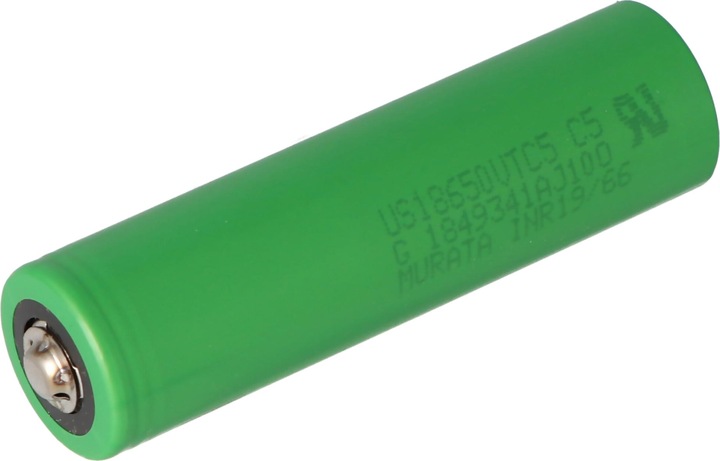

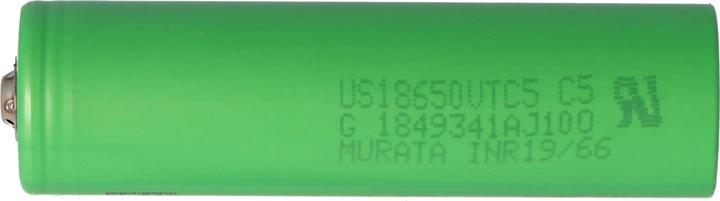

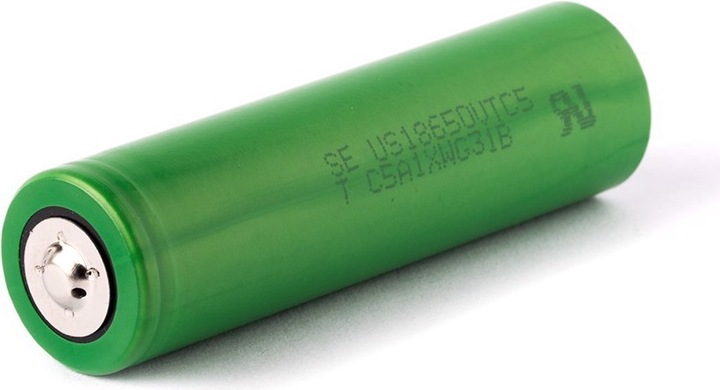

Sony Battery Konion US18650VTC5A (Button Top)

The successor to the well-known Sony US18650VTC5. A new high-quality high-drain cell developed by Sony with an even higher discharge current of up to 35A! Perfectly suited for tools and industrial use. Sony Konion US18650 VTC5A unprotected with an elevated positive terminal.

Capacity: 2600mAh
Min. Capacity: 2500mAh
Nominal Voltage: 3.6V - 3.7V
Charge Termination Voltage: 4.2V ± 0.05V
Discharge Termination Voltage: 2.0V
Charge Current: 0.25A - 2.5A
Max. Charge Current: 6A
Max. Continuous Discharge Current: 35A
Chemical Composition: LiNiMnCoO2
Protection Circuit: no

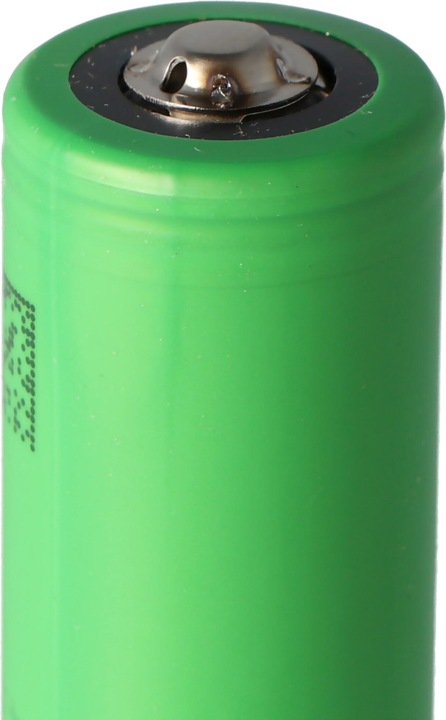

Elevated Positive Terminal (Button Top)
Diameter: 18.2 mm ± 0.05 mm
Height: 66.0 mm ± 0.15 mm
Weight: 46 g ± 0.1 g
Charging Method: CC-CV

Test Results: Dampfakkus, Lygte-Info

Safety Notes: Lithium cells should only be operated with protective electronics! Please note that lithium cells may only be used by authorized personnel. Improper handling or short circuits can lead to fire or explosion.

Additional Features: Lithium-ion batteries are thermally stable and do not suffer from memory effect. They operate on the basis of lithium and are characterized by a high energy density.

Technical Data for "Sony Konion US18650VTC5A - 2600mAh, 3.6V - 3.7V (Button Top)":
Normal Charge Current/Charging Time: 2500mA/3h
Max. Charge Current/Charging Time: 4000mA/2.5h
Operating Temperature for Charging: 0 °C - 45 °C
Operating Temperature for Discharging: -20 °C - 60 °C

Notes: Charging lithium-ion batteries requires a special charger that charges the batteries according to a specific charging method (CCCV = constant current, constant voltage). The batteries must not be charged above a voltage of 4.2 volts, as this poses a risk of fire and explosion. It is advantageous to charge the batteries only up to about 4.1 volts, as this significantly increases their lifespan or number of charge cycles (potentially up to doubling).
