Solara Semiflex S320P41 Marine

Semi-flexible up to 3% thanks to unique, stretchable flex connectors. Stability and maximum heat dissipation are ensured by an innovative aluminium sandwich carrier plate. The product is fully walkable and features a Teflon-like extremely resistant protective film on the front and back, with Nowoflon on both sides. It includes a cable outlet with strain relief that is bonded and screwed particularly flat, and the cable feed-through is directly prepared through the support plate. All materials withstand extreme heat, high humidity, sea, and salt water. A cell protector with external protective diodes is included in the scope of supply, and the product is manufactured exclusively in Germany. It offers a long service life even under extreme conditions and maximum daily yield due to additional individual cells. Extremely high yields are achieved through the use of crystalline high-performance cells, ensuring high yields at all times of the year, even on cloudy days. An external hotspot protector with bypass diodes against possible cell overheating is included in the scope of delivery.

Technical data:

• Nominal power (Pmpp): 80Wp
• Average daily yield in summer: 320Wh/d
• Voltage at max. power (Umpp): 21.82 V
• Power (Umpp): 21.82 V
• Current at max. power (Impp): 3.62 A
• Open circuit voltage (Uoc): 25.87 V
• Short circuit current (Isc): 3.84 A
• Number of cells: 41

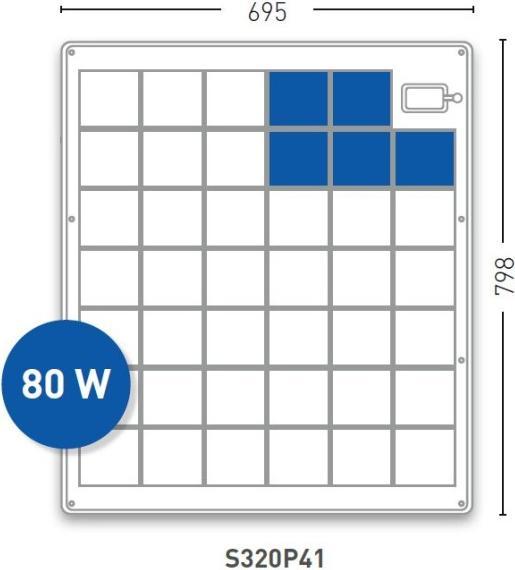

• Dimensions: 798x695x4mm
• Weight: 3.7kg.
