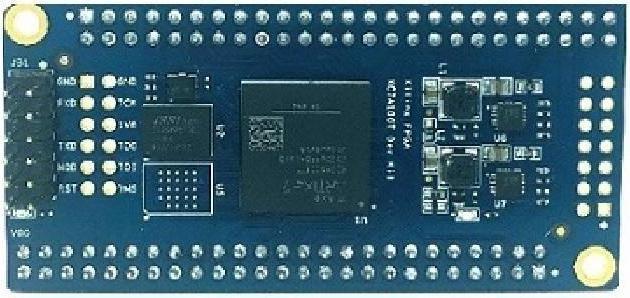

Sinovoip BPI-FPGA - FPGA Extend Board with Xilinx Artix-7 100T

Ratings
BrandMore from Sinovoip
Delivered between Wed, 17.6. and Wed, 29.7.
free shipping

Product details

BPI-FPGA - FPGA Expansion Board

The Trenz Electronic TE0725LP-01-100-2D is a cost-effective, compact FPGA module that integrates a Xilinx Artix-7 (15T-100T) and 32 MByte of Flash memory for configuration and operation. The 2x 50-pin headers with a standard pitch of 2.54 mm are perfect for breadboard or low-cost dual-layer PCBs.

  • Xilinx Artix-7 XC7A100T-2CSG324C/XC7A100T-2CSG324I
  • Commercial temperature grade
  • 32 MByte Flash memory
  • 2x 50-pin headers with 2.54 mm pitch, ideal for breadboard applications
  • 1.8 V single supply with on-board voltage regulators
  • 95 I/Os (42 + 42 + 3 + 8)
  • 25 MHz system clock
  • I2C EEPROM
  • 7.3 x 3.5 cm form factor
  • JTAG/UART interface
  • One user LED
  • Optional HyperRAM (8 to 32 MByte) or HyperFlash.

30-day right of return
24 Months Warranty (Bring-in)
