Silicone Soft Mount Kit

Soft mounting - the theory

The transition between hard and soft materials provides vibration absorption. By squeezing a soft piece of silicone between the motor and the frame, certain vibration frequencies will get attenuated. Without soft mounting, the vibration noise may saturate the gyro reading, making it impossible for the gyro to distinguish signal from noise. The end result is high frequency shakes or spastic movements of your quad, either at full throttle or mid throttle, that remain regardless of your PID values. In most cases, soft mounting the flight controller or motors will eliminate these issues. With the TBS soft-mount silicone kit, you'll get everything necessary to improve the flight handling of your quads.

Caveats

When soft mounting, you need to be aware of the advantages as well as the disadvantages. In essence, soft mounting is a vibration filtration technique. Every kind of filtering introduces latency. By allowing the motors to move just a tiny bit, we create a slower response from the quad. It will manifest itself as a smoother response to your control inputs, but also mean that your muscle memory may need to go through some minor re-adjustment. The downsides can be considered minimal; just don't expect to have your cake and eat it too.

Contents

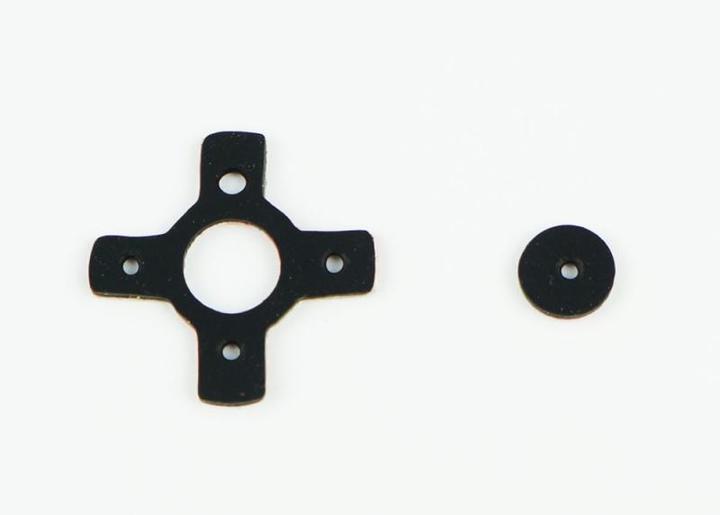

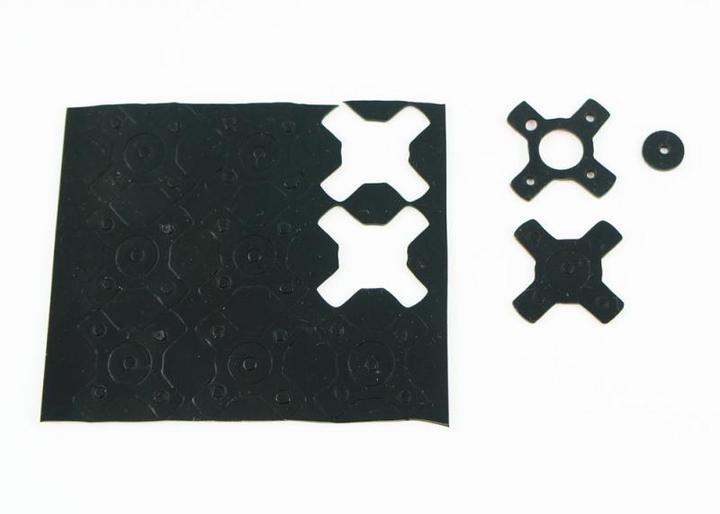

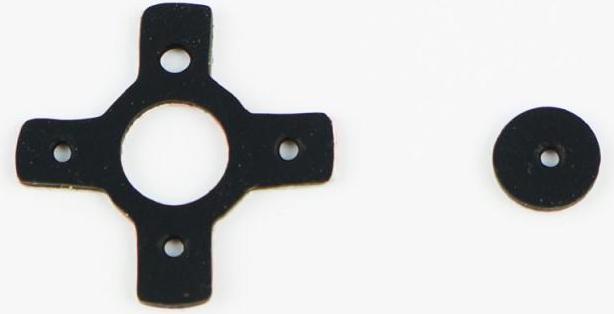

9x motor mount 16/19mm pattern
9x O-ring 5mm diameter, 3mm hole.
