Siga S24-12

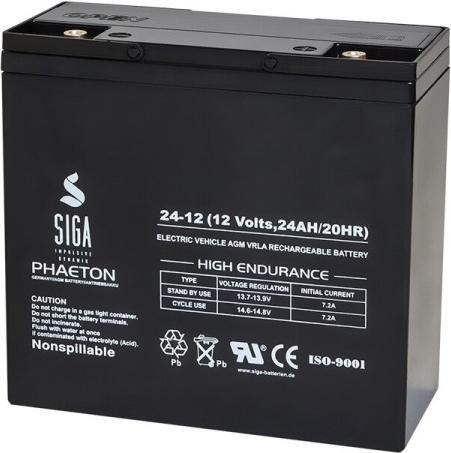

The Siga S24-1212V AGM lead-acid battery is suitable for small electric vehicles such as scooters or scooters for the elderly as well as for Kleist solar systems. Technical data Designation S24-12 Number of cells 6 Rated voltage 12V Capacity 24 Ah @ 20 h Discharge up to 1.75V per cell @ 25°C 20 Ah @ 2 h Discharge up to 1.75V per cell @ 25°C Weight Approx. 7 kg Maximum discharge current 240A (5 sec) Internal resistance Approx. 10 mOHM Temperature range discharge -20°C to 60°C Temperature range charge 0°C to 50°C Temperature range storage -20°C~60°C Nominal temperature 25°C±5°C Trickle charge voltage 13.7 to 13.9 VDC/unit at 25°C Maximum charging current 6 A Final charging voltage 14.6 to 14.8 VDC/unit at 25°C Temperature compensation -4mV per °C and cell Self-discharge The batteries can be stored for more than 6 months at 25°C. Self-discharge < 3% per monthThe batteries must be charged before use. At higher temperatures, the times become shorter Container Material ABS (UL94-HB) Data sheet AGM battery Siga 24Ah General information about batteries can be found at: Interesting facts about batteries General information about charging batteries can be found at: Interesting facts about charging batteries.
