Siemens Switch disconnector 3-pole black 9.5kW
Delivered Wed, 8.4.
More than 10 pieces in stock at third-party supplier
More than 10 pieces in stock at third-party supplier
Supplied by
Conrad CH
Free shipping starting at 50.–
Colour5
Max. Switching capacity4
Product details
Number of poles: 3
Current max: 25 A
Mounting type: Panel mounting
Power: 9.5 kW
Protection class: IP65
Padlock option: Yes
Operating voltage: 690 VAC
Electrical phases: 3
Switching capacity: 640 A
Length: 84 mm
Width: 67 mm
Depth: 92.5 mm
Operating temperature min: -25°C

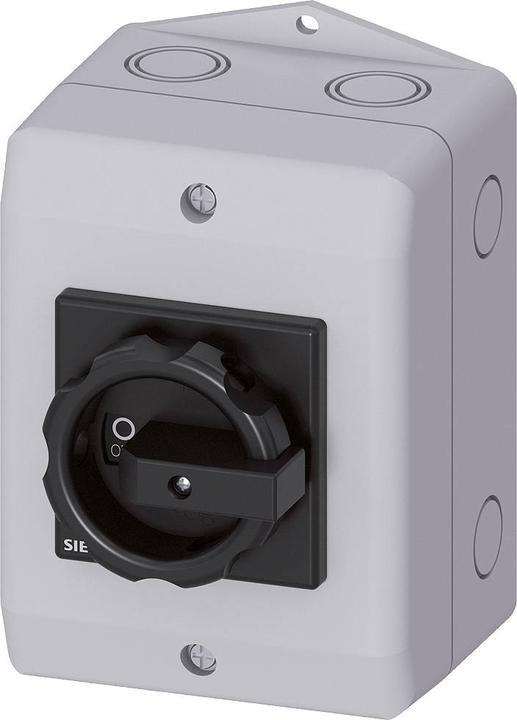

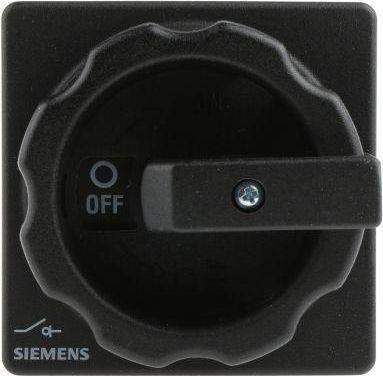

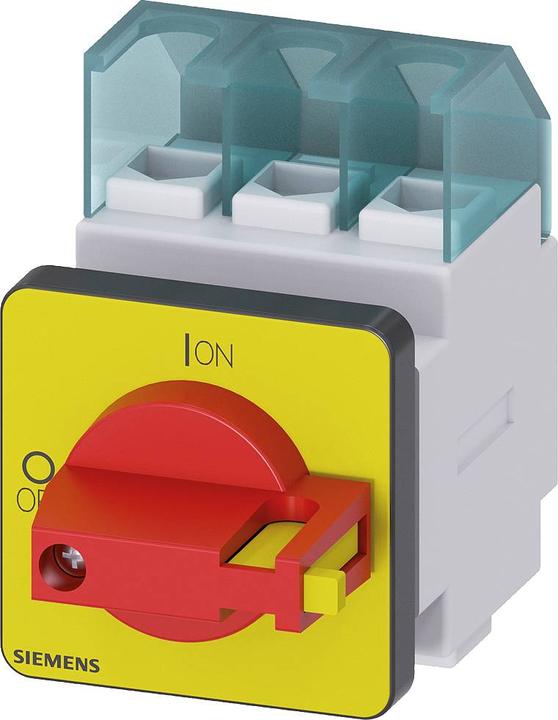

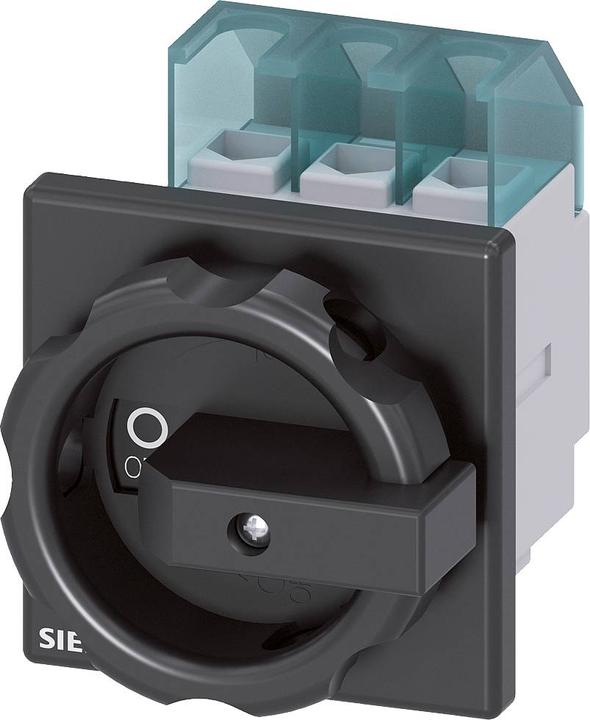

CE. Switch disconnector SENTRON LD. Main and emergency stop switch in 3-pole version. Actuating element available in black or red/yellow (emergency stop). Lockable in 0-position with a maximum of 3 padlocks. Protection class on the front side is IP65. Supply side features a terminal cover. Front panel mounting with four-hole mounting.
Colour | Black |
Switch + button type | Switch disconnector |
Width | 67 mm |
Diameter | 67 mm |
Item number | 9729527 |
Manufacturer | Siemens |
Category | Buttons + Switches |
Manufacturer no. | 3LD21030TK51 |
Release date | 24.9.2018 |
Colour | Black |
Exact colour description | Black |
Switch + button type | Switch disconnector |
Number of actuation levels | 1x |
Number of poles | 3x |
Nominal voltage | 690 V |
Nominal current | 25 A |
Max. Switching capacity | 9500 W |
Protection type (IP code) | IP65 |
Country of origin | Germany |
Manufacturer commitment | RE100, SBTi |
CO₂ emissions | 95.84 kg |
Climate contribution | CHF 2.04 |
Smart home | Not compatible |
Items per sales unit | 1 pcs. |
Scope of delivery | 400V, Main switch 3p. 25A 9.5kW |
Length | 92.50 mm |
Width | 67 mm |
Height | 84 mm |
Diameter | 67 mm |
Specifications may include unverified machine translations.
