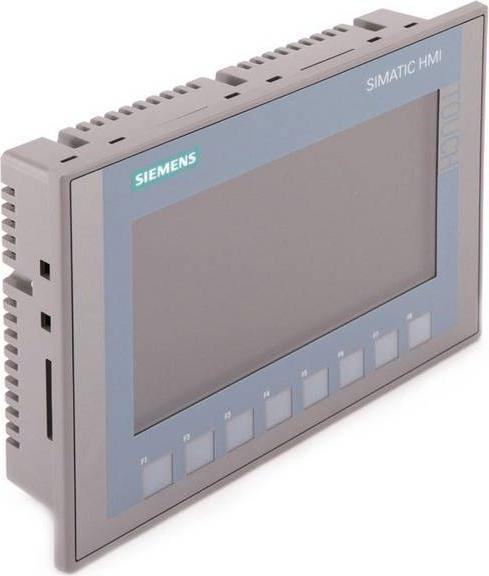

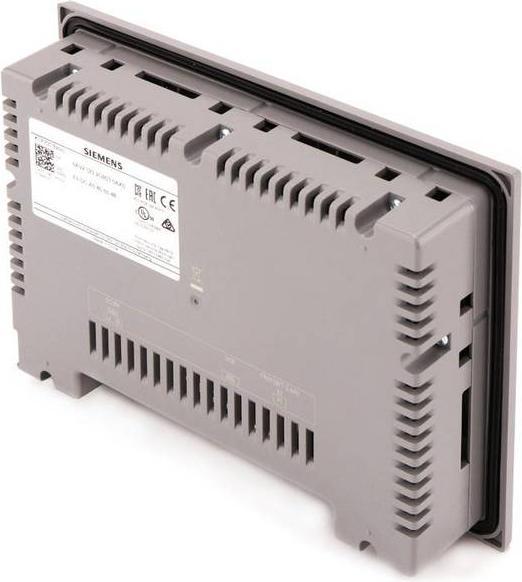

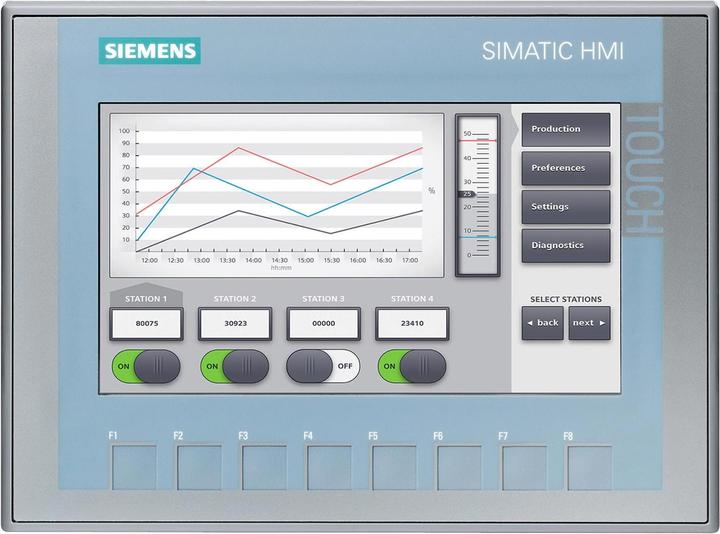

Siemens SIMATIC HMI, KTP700 Basic

Manufacturer Series: KTP 700
Display Type: TFT
Screen Size: 7 inches
Screen Resolution: 800 x 480 pixels
Display Color: Color
Number of Connections: 1
Connection Type: Ethernet
Memory on the Mainboard: 10 MB
Backlight: Yes
Supply Voltage: 24 V DC
Length: 214 mm

The Ethernet cable and MPI adapter are only included in certain cases – Ethernet cable (only for PN screens), MPI cable (only for DP devices) for downloads and tests. However, these are not included in the delivery and must be ordered separately. The SIMATIC MMS series KTP 400 / 600 / 700 / 1000 / TP1500 offers panels with 4, 6, 7, and 10-inch displays, keypad or touchscreen control, and comes with a 15-inch touchscreen for the base unit. Each SIMATIC base unit meets the IP65 protection class and is ideal for simple visualization tasks even in harsh environments. Additional benefits include integrated software features such as a reporting system, recipe management, or graphic functions. The ideal entry-level series from 3.8 to 15 inches for operating and monitoring simple machines and systems. Clear process representation thanks to displays with pixel graphics. Intuitive operation with touchscreen and touch-sensitive function keys. Equipped with all necessary basic functions such as alarm logging, recipe management, plots, vector graphics, and language switching. The device can be configured via WinCC flexible Compact or alternatively via the HMI configuration software STEP7 Basic Engineering for S7-1200. Easy connection to the controller via integrated Ethernet interface or separate version with RS485/422.
