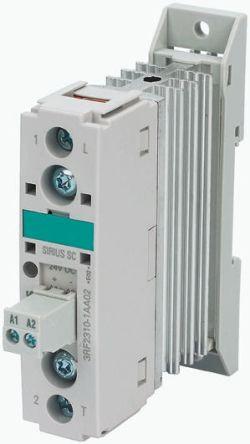

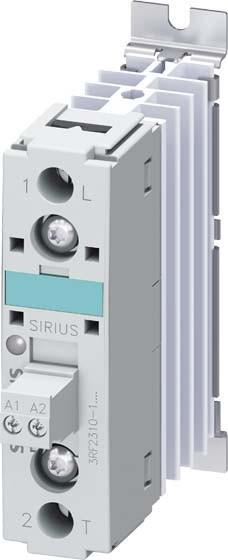

Siemens Digital Industry Semiconductor Relay 3RF2310-1BA02

Manufacturer: Siemens Digital Industry
Designation: Semiconductor Relay AC51 10A/AC15 6A
Type: 3RF2310-1BA02
Rated control supply voltage Us at DC: 15..24 V
Voltage type for operation: DC
Operating voltage: 24..230 V
Rated operational current Ie at AC-1: 10.5 A
Rated operational current Ie at AC-51: 10.5 A
Number of phases: 1
Suitable for rail mounting: yes

Further details:
Single-phase semiconductor relay 3RF2 AC 15 / 6 A / 40 °C 24-230 V / DC 24 V momentary switching. SIRIUS 3RF23 semiconductor relay for switching resistive and inductive loads, such as heaters or valves in a filling plant. The devices switch wear-free and silently, making them ideal for noise-sensitive areas like offices and hospitals. They are also extremely reliable at high switching frequencies. With the heat sink already integrated, they can be directly installed in the control cabinet. The compact design saves space on the DIN rail.

Additionally, the semiconductor relays can be easily expanded for various applications using the standardized function modules 3RF29 by simply snapping them on. The devices are globally certified, e.g., according to IEC and UL/CSA. The semiconductor relays are available as single-phase or three-phase devices and come in various power ratings and rated operational voltages. Designed for AC or DC operation, they are available with screw, spring-loaded, or ring terminal connections.

Accessories include not only the function modules 3RF29 but also control plugs and terminal covers. Simple, efficient, always up-to-date - the SIRIUS system modular concept.
EAN: 4011209572232.
