Siemens Industrial UPS system (DIN R

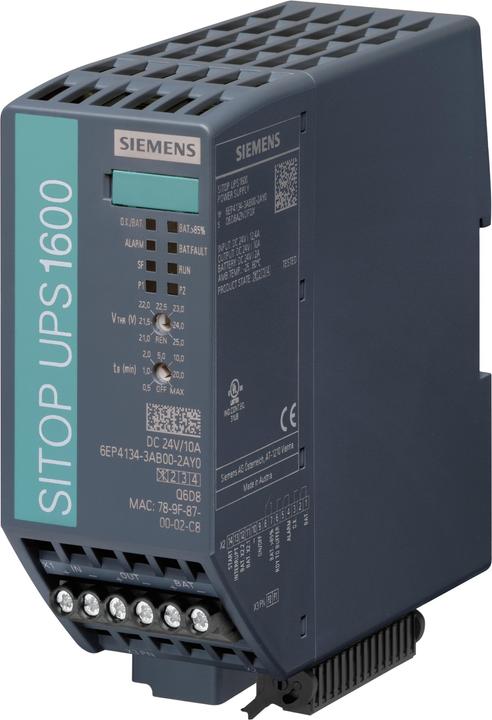

By combining a SITOP UPS1600 DC UPS module with at least one UPS1100 battery module and a SITOP power supply, longer power outages can be bridged without interruption. The intelligent battery management system automatically detects the UPS1100 energy storage, ensures optimal temperature-controlled charging, and continuous monitoring. The compact DC UPS modules are overload-capable, allowing them to provide the inrush current for industrial PCs, for example. For island operation, they enable startup from the battery.

The DC UPS communicates openly via USB or Ethernet/PROFINET. With the two Ethernet/PROFINET ports, it can be easily integrated into the PC or PLC environment. Full integration into TIA offers convenient engineering in the TIA Portal and is supported by pre-made function blocks for S7 user programs and WinCC faceplates for quick visualization.

With the SITOP UPS Manager, simple monitoring and configuration in PC systems is also possible, such as shutting down multiple PCs based on a master-slave principle. The integrated web server also allows for remote monitoring of the DC UPS.
