Siemens Contactor

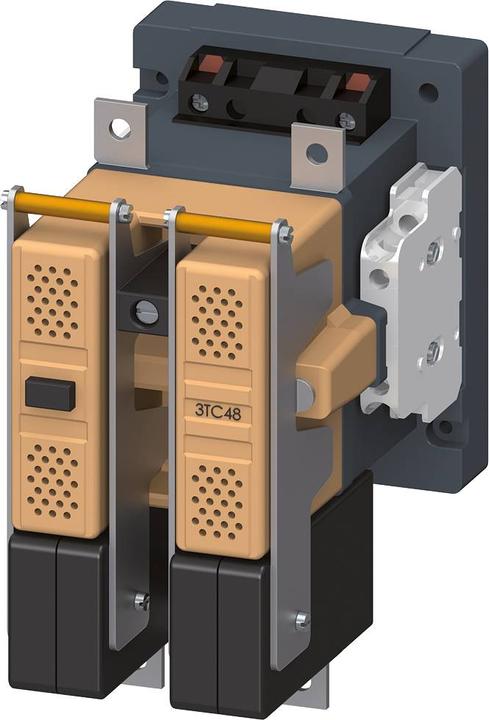

Siemens Digital Industry Contactor 3TC4817-0BU0

Manufacturer: Siemens Digital Industry
Designation: Contactor 75A
Type: 3TC4817-0BU0
Rated control supply voltage Us at AC 50 Hz: 240 V
Rated control supply voltage Us at AC 60 Hz: 288 V
Type of voltage for actuation: DC
Rated operational power at DC-3 / DC-5 at 440 V: 27 kW
Rated operational current Ie at DC-3 / DC-5 at 440 V: 75 A
Suitable for rail mounting: yes
Number of auxiliary contacts as normally closed: 2
Number of auxiliary contacts as normally open: 2
Connection type main circuit: screw connection
Number of normally closed contacts as main contacts: 2

Siemens Digital Industry Contactor 3TC4817-0BU0: additional details
Contactor, size 4, 2-pole, DC-3 and 5, 75A auxiliary switch 22 (2 NO + 2 NC) AC 240V 50Hz/AC 288V 60Hz AC actuation.
The 3TC contactor is suitable for switching direct current and impresses with high performance in a compact design and high contact reliability.
It is also characterized by an exceptionally long switching lifespan.
The devices are globally certified (e.g., IEC and UL/CSA).
They are available in AC and DC actuation, in various voltages, and with different auxiliary contacts.
Accessories such as arc chambers, magnetic coils, and surge protectors are available.
EAN: 4011209140622.
