Sick Rotary encoder
10 pieces in stock at third-party supplier
Product details

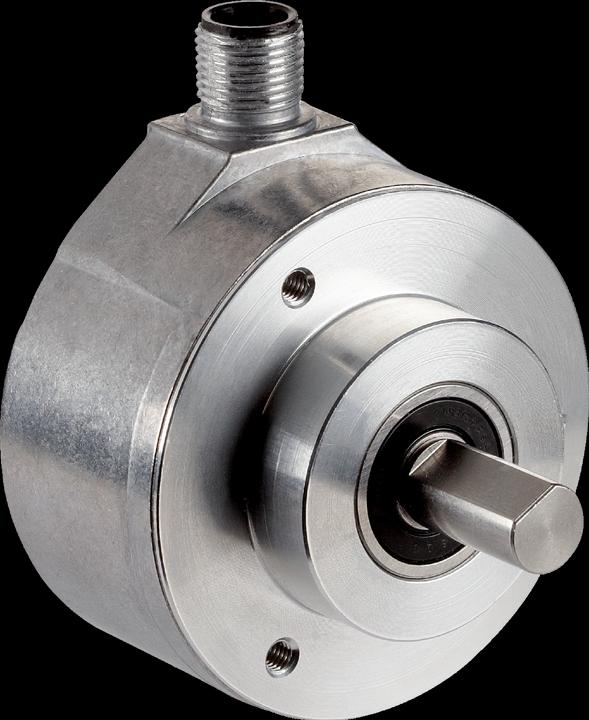

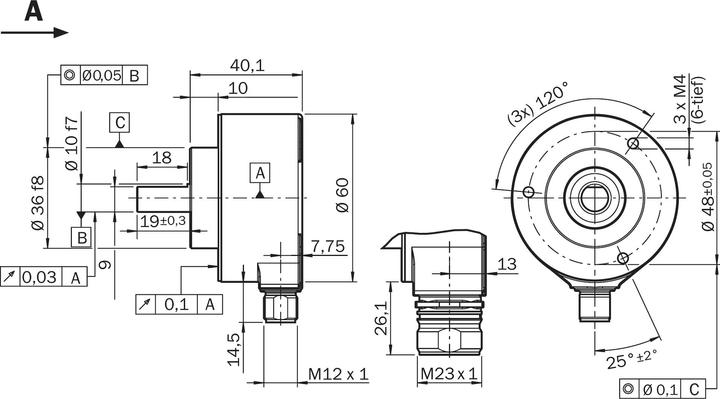

The DFS60B-S4PC10000 rotary encoder from Sick is a high-precision incremental encoder designed for a wide range of applications in automation technology. With a mechanical design that includes a solid shaft clamping flange with a diameter of 10 mm and a length of 19 mm, this electronic module offers a robust and reliable solution for position and speed measurement. The encoder supports a communication interface ranging from 4.5 V to 32 V and is compatible with both TTL and HTL, allowing for flexible integration into existing systems. Its programmable functionality enables customization to specific requirements, while the 8-pin M12 connector ensures easy and secure installation. With up to 10,000 pulses per revolution, the DFS60B-S4PC10000 provides precise and detailed information about rotational movement.
- Mechanical design with solid shaft clamping flange for high stability
- Programmable communication interface for flexible adjustments
- TTL and HTL compatible for versatile applications

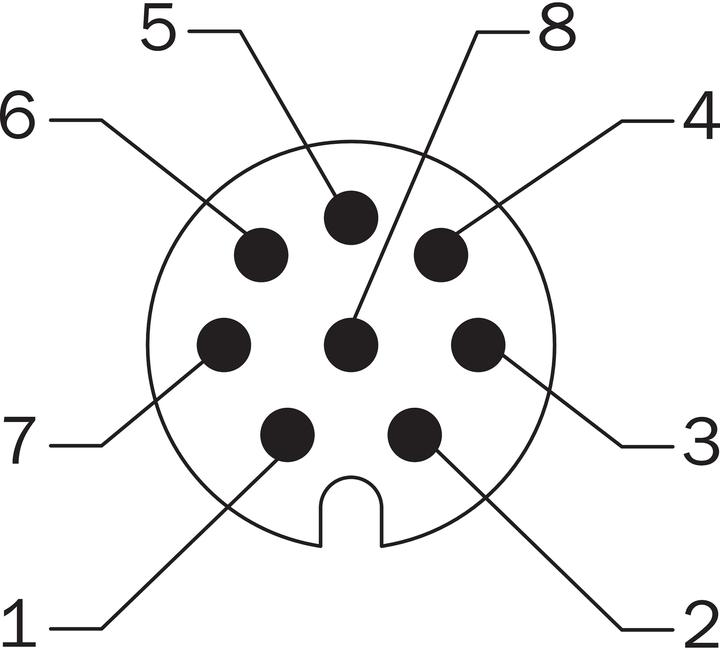

- Easy installation via 8-pin M12 connector
- High resolution with up to 10,000 pulses per revolution.
