Sick Measuring wheel encoder

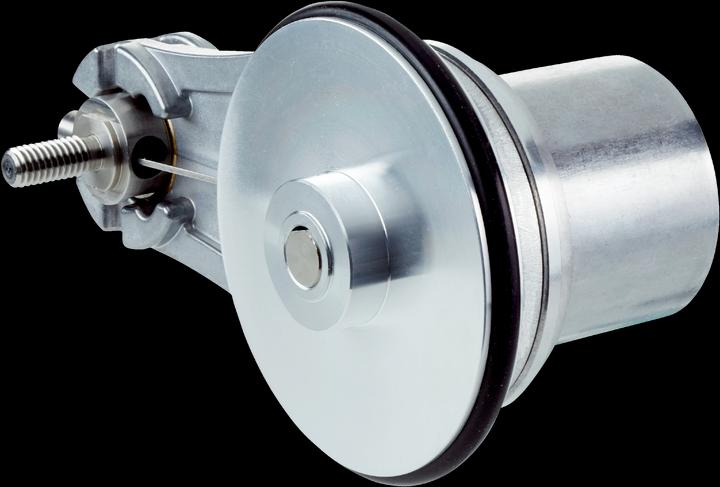

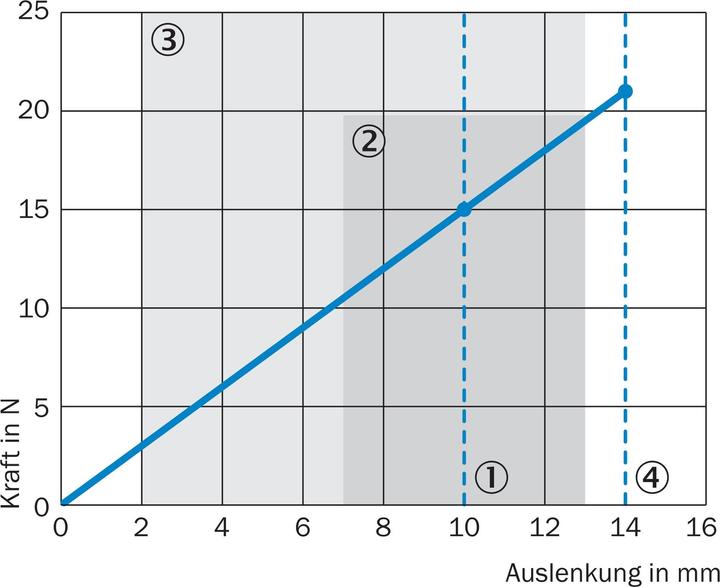

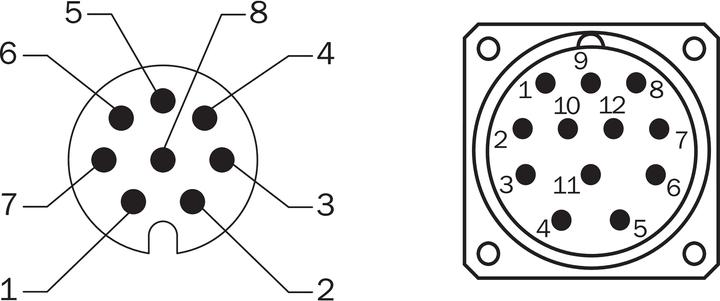

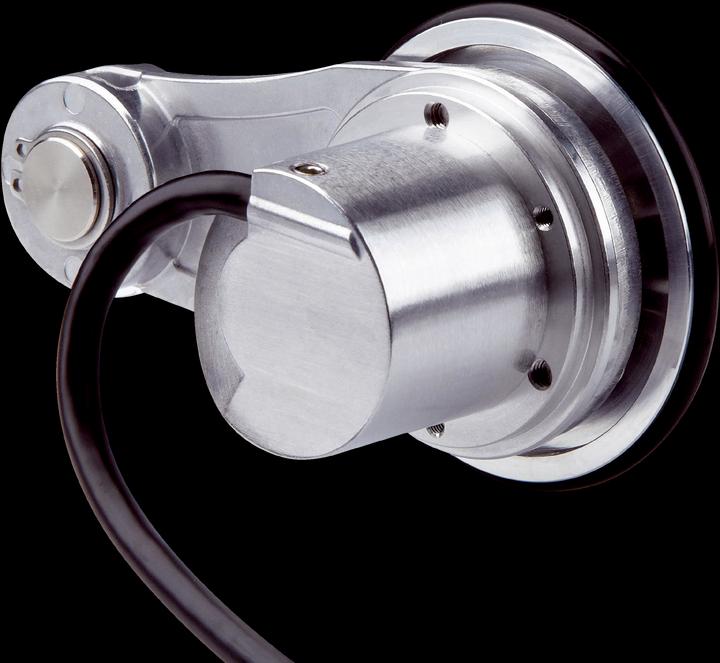

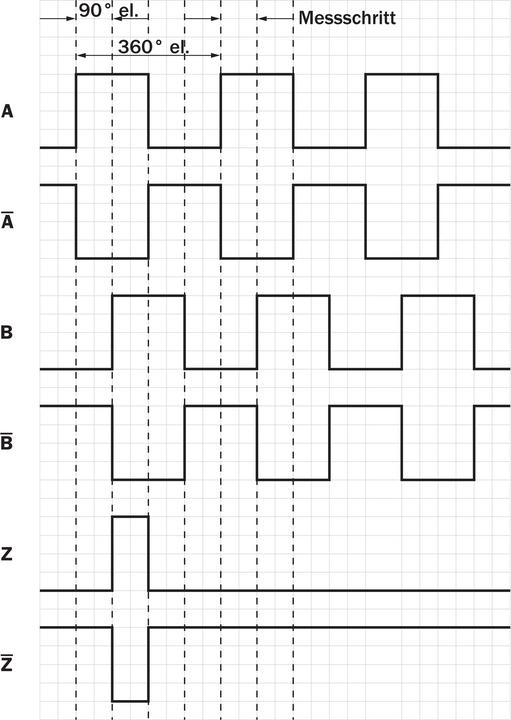

The measuring wheel encoder from Sick is a high-precision electronic module designed for linear measurement. With a measuring wheel circumference of 200 mm and a robust NBR70 O-ring surface, this device delivers reliable performance across various applications. The encoder operates with a supply voltage of 7 V to 30 V and supports incremental HTL signals. The communication interface allows for flexible integration into existing systems. The encoder is equipped with an 8-wire connection that enables universal connectivity over a cable length of 1.5 m. The high resolution of 1 pulse/mm ensures precise measurements, while the spring arm with a maximum deflection of 14 mm guarantees easy handling. The measuring wheel encoder is suitable for use in a wide temperature range of -20 °C to +85 °C and offers an IP65 protection rating, making it ideal for industrial applications.

• Maximum output frequency of ≤ 300 kHz
• Lifespan of the spring element of over 1.4 million cycles
• Operating temperature range of -20 °C to +85 °C
• Protection class IP65 for use in demanding environments

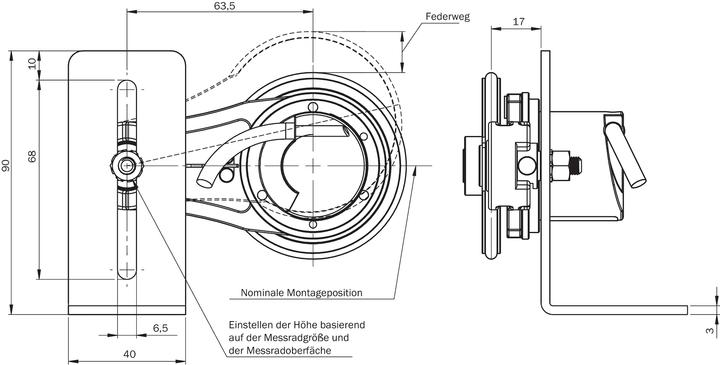

• Preferred mounting position relative to the measuring object from above, possible from below.
