Sick Inductive

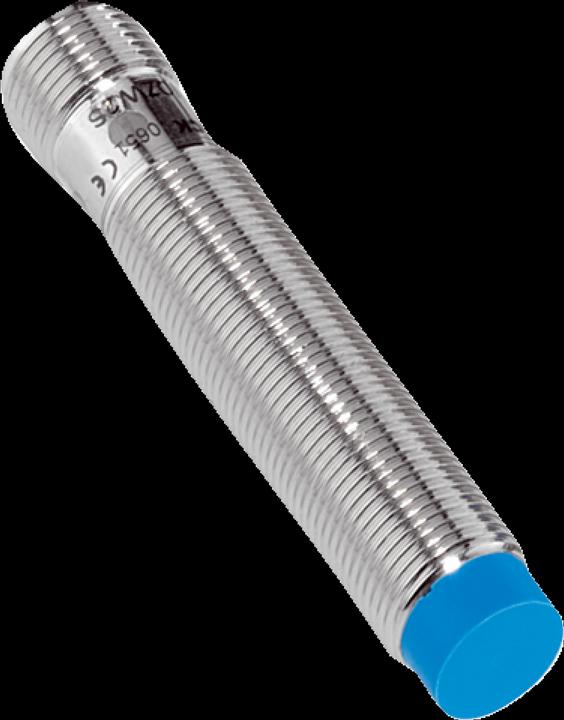

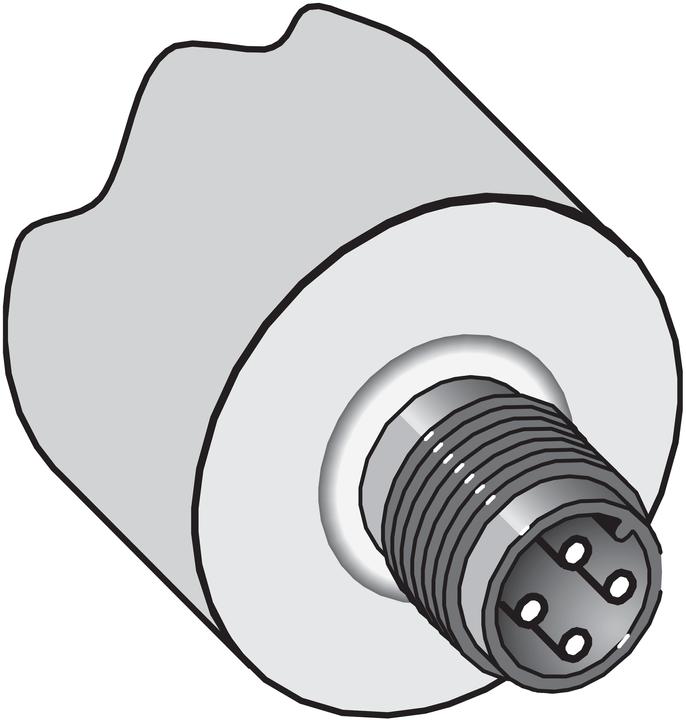

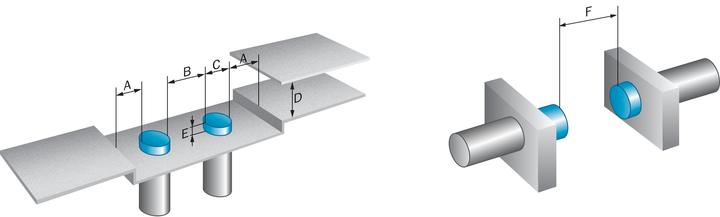

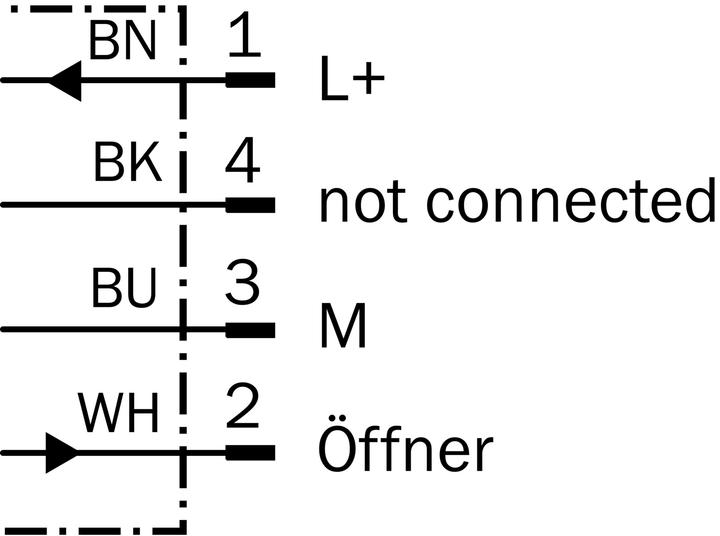

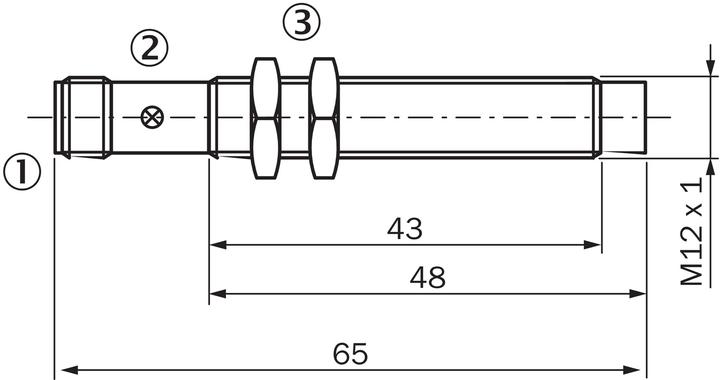

Sick Inductive proximity sensor IME12-08NPOZC0S Manufacturer :Sick Designation :Inductive proximity sensor IME series Type :IME12-08NPOZC0S Sensor diameter :12 mm Mechanical installation condition for sensor :not flush Switching distance :8 mm Switching function version :NC contact Type of switching output :PNP Type of electrical connection :M12 plug connector Type of interface :other Type of interface for safety-related communication :other Housing design :special design Max. output current at safe output :200 mA Max. output current at the safe output :200 mA Supply voltage :10...30 V Rated control supply voltage Us at AC 50 Hz :10 V Voltage type :DC Switching frequency :2000 Hz Housing material :Metal Sick inductive proximity sensor IME12-08NPOZC0S: more details Inductive proximity sensors, IME, IME12-08NPOZC0S, housing design: Standard design, Switching distance Sn: 8 mm, Installation in metal: Non-flush, Electrical design: DC 3-wire, Switching output: PNP, Switching function: NC contact, Connection type: M12 plug, 4-pin , EAN: 4047084260605.
