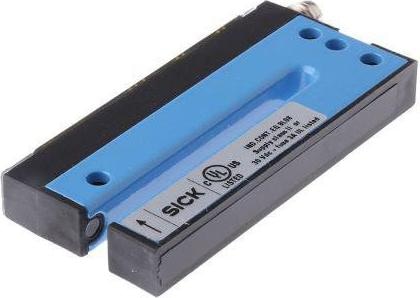

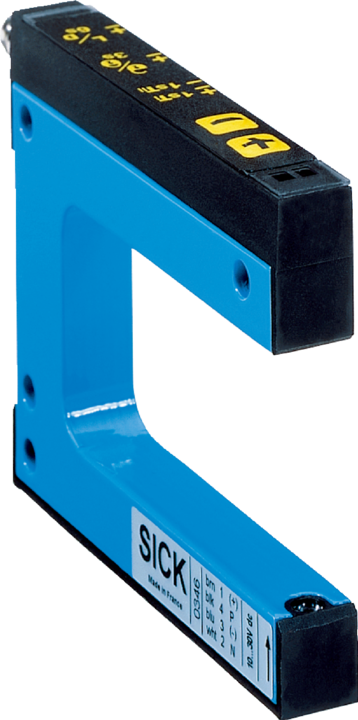

Sick Fork light barrier

The Sick fork light barrier, model WF5-60B416, is a high-precision optical sensor designed for reliable object detection in industrial applications. With a fork width of 5 mm and a detection depth of 59 mm, this sensor delivers excellent performance in detecting the smallest objects, with a minimum detectable object size of just 0.2 mm. The response time of 100 µs and a switching frequency of up to 10 kHz allow for quick and precise reactions to moving objects. The sensor is equipped with a PNP/NPN switching output and can be configured for both light-on and dark-on operation, making it versatile. Its robust aluminum construction and IP65 protection rating ensure high resistance to environmental influences, making it ideal for use in demanding industrial environments.

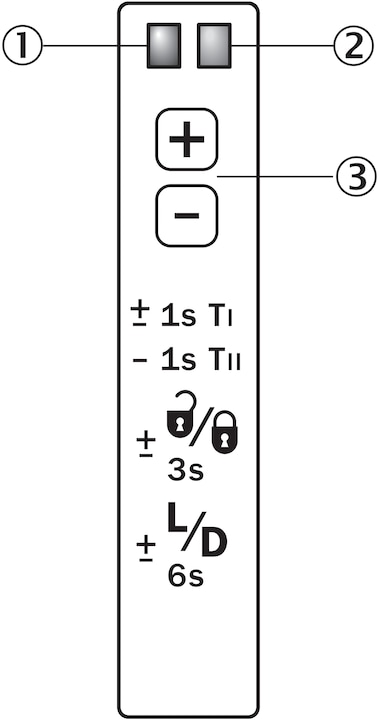

• Adjustment options via plus-minus button for easy handling
• Robust aluminum construction for increased durability
• IP65 protection rating for use in harsh environments
• Fast response time of 100 µs for precise detection

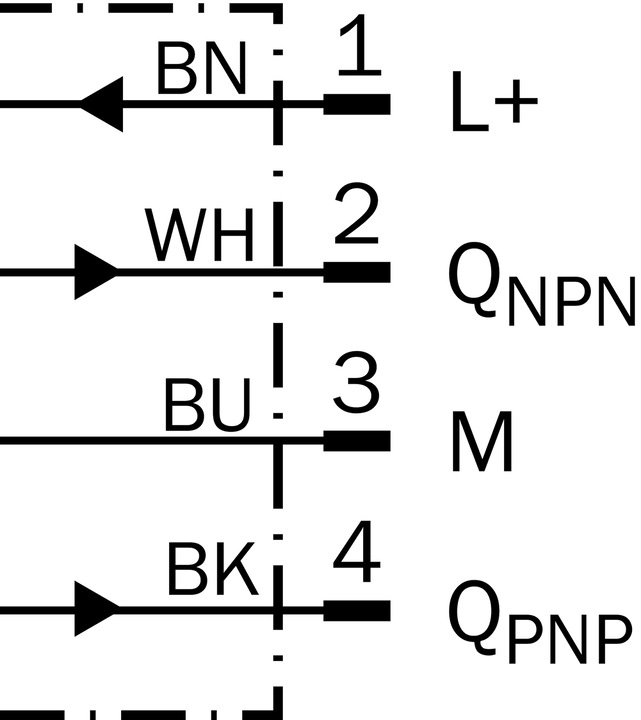

• Versatile connection options via 4-pin M8 connector.
