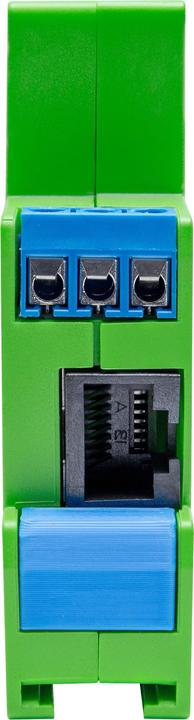

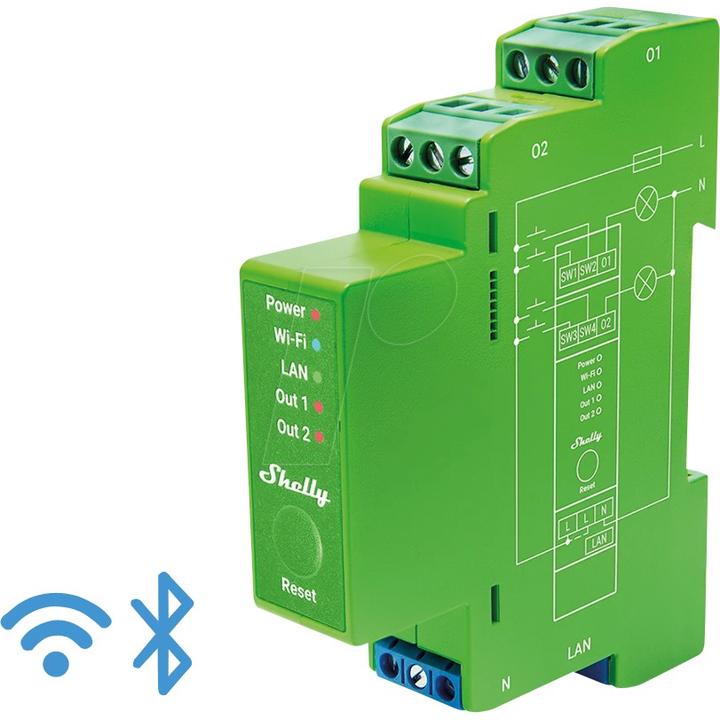

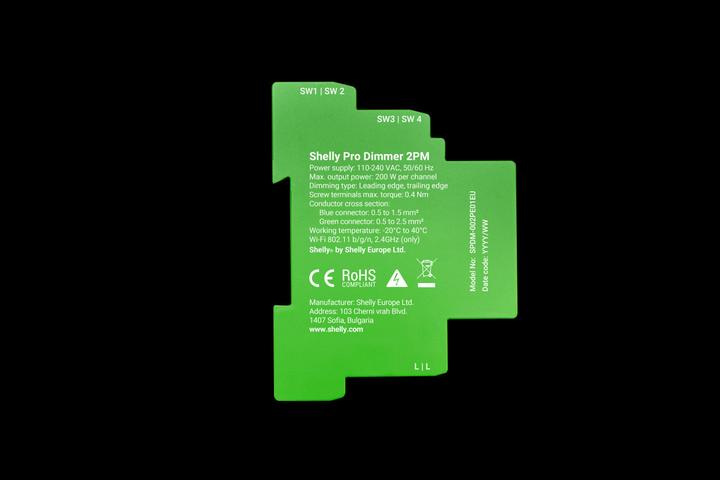

Shelly Pro Dimmer 2PM

7Ratings
BrandMore from Shelly
Delivered tomorrow
5 pieces in stock
Free shipping starting at 50.–

Product details

Shelly Pro Dimmer 2PM is a DIN rail mountable, intelligent two-channel dimmer with power monitoring. Use it to control, dim, and measure the power of a wide range of halogen lamps and dimmable LEDs.
Power supply

110-240 V ~50/60 Hz

Power consumption

2 W

Max. output power

200 W

Wi-Fi connectivity

802.11 b/g/n

Wi-Fi RF bandwidth

2401-2483 MHz

Max Wi-Fi RF power

20 dBm

Wi-Fi range

Up to 30 m indoors / up to 50 m outdoors

Bluetooth version

4.2

Bluetooth RF band

2400-2483.5 MHz

Max Bluetooth RF power

4 dBm

Bluetooth range

Up to 10 m indoors / up to 30 m outdoors

CPU

ESP32-D0WDQ6

Flash memory

8 MB

Max. number of schedules

20

Operating temperature

From -20°C to 40°C

Operating ambient humidity

Key specifications

input voltage
110 V
Electric current output
10 A

General information

Item number
42611020
Manufacturer
Shelly
Category
Relays
Manufacturer no.
Shelly_Pro_Dimmer_2PM
Release date
15.3.2024
Sales rank in Category Relays
3 of 15944

Relay properties

input voltage
110 V
Electric current output
10 A

Smart home features

Smart home
Compatible
Smart home ecosystem
Amazon Alexa, Google Assistant
Communication standard
Amazon Alexa, Google Assistant
Radio frequency
2400000000 Hz

Origin

Country of origin
China, Germany

Voluntary climate contribution

CO₂ emissions
10.33 kg
Climate contribution
CHF 0.25

Scope of delivery

Scope of delivery
1 piece

Product dimensions

Length
19 mm
Width
94 mm
Height
69 mm
Weight
75 g

Package dimensions

Length
10 cm
Width
7 cm
Height
2.50 cm
Weight
90 g
