Effortless smart home control with Shelly 1 Gen4

Take full control of your home automation with the Shelly 1 Gen4, a compact Wi-Fi relay switch that fits behind any wall switch or outlet. Designed for seamless integration and unrivalled versatility, this fourth generation Shelly module allows you to control lights, appliances or garage doors from anywhere - directly from your smartphone. Whether you're upgrading your smart home or starting from scratch, Shelly 1 Gen4 is your flexible, future-proof solution.

What makes it a must-have for every smart home

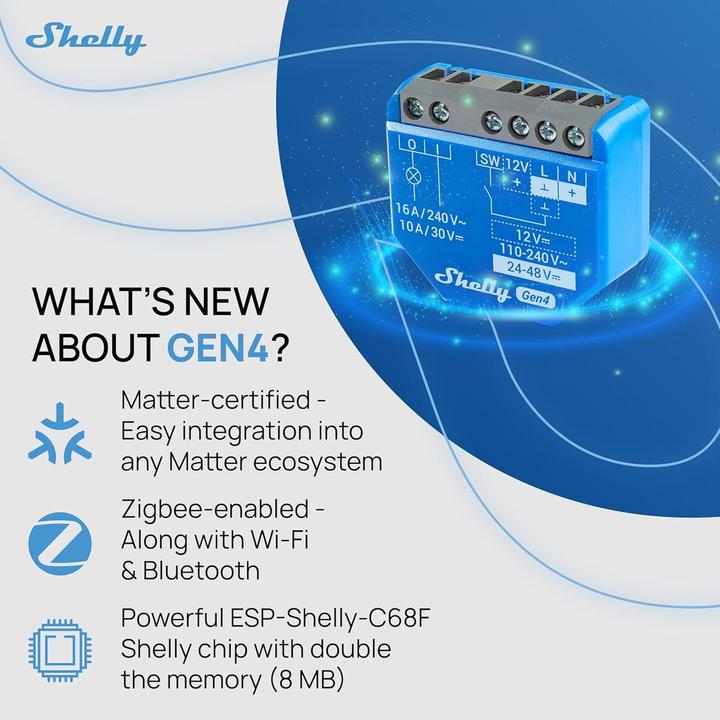

Next generation chipset: Equipped with a powerful ESP Shelly chip that ensures faster response time and improved performance.

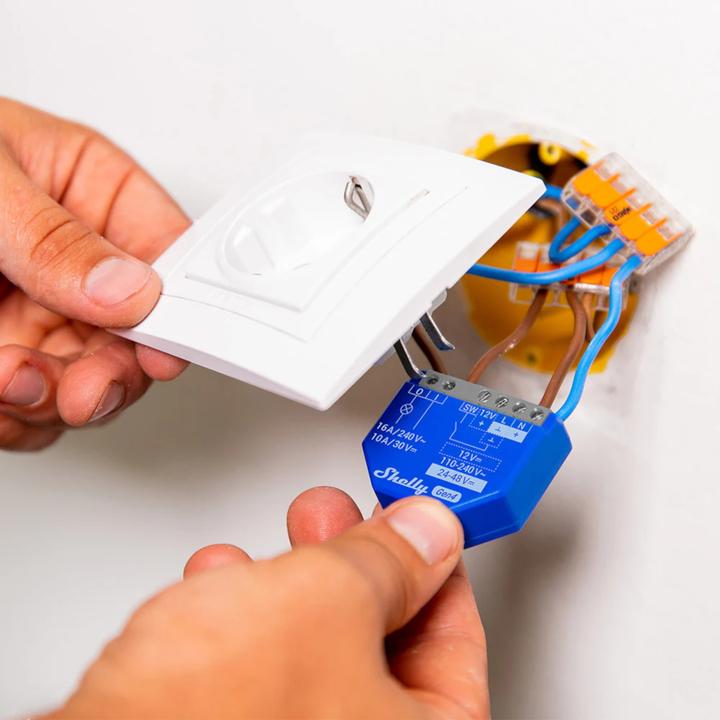

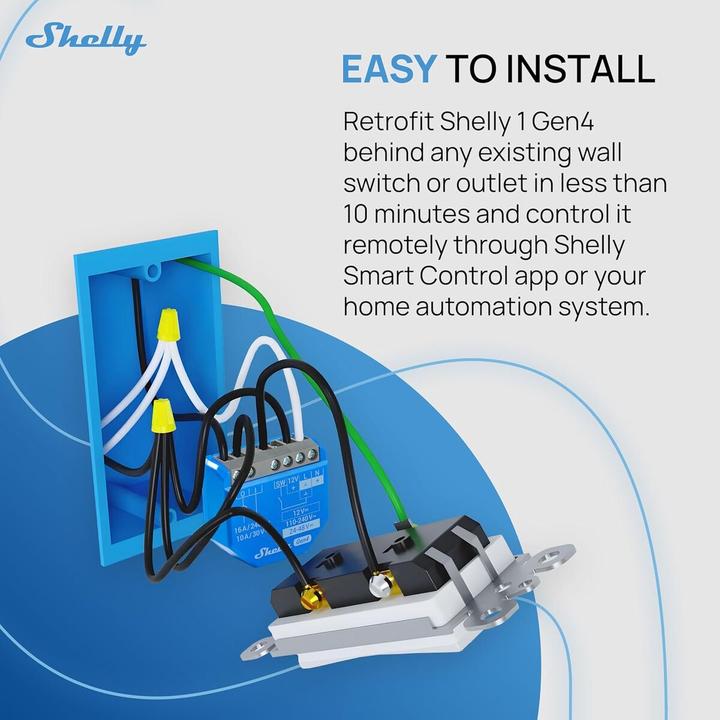

Ultra-compact design: Fits easily into standard electrical sockets - even behind conventional wall switches.

Cloud-free or cloud-connected: Control your devices via the Shelly Cloud App or stay local with MQTT, HTTP or Home Assistant.

Multi-platform compatibility: Works seamlessly with Google Home, Amazon Alexa, Samsung SmartThings and more.

Flexible input control: Supports both momentary and toggle switches for maximum customisation.

Enhanced security: With strengthened device encryption and improved OTA update protocols.

Specifications

Power supply: 110-240V AC ±10%, 50/60Hz or 12V DC

Maximum load: 16A / 3500W

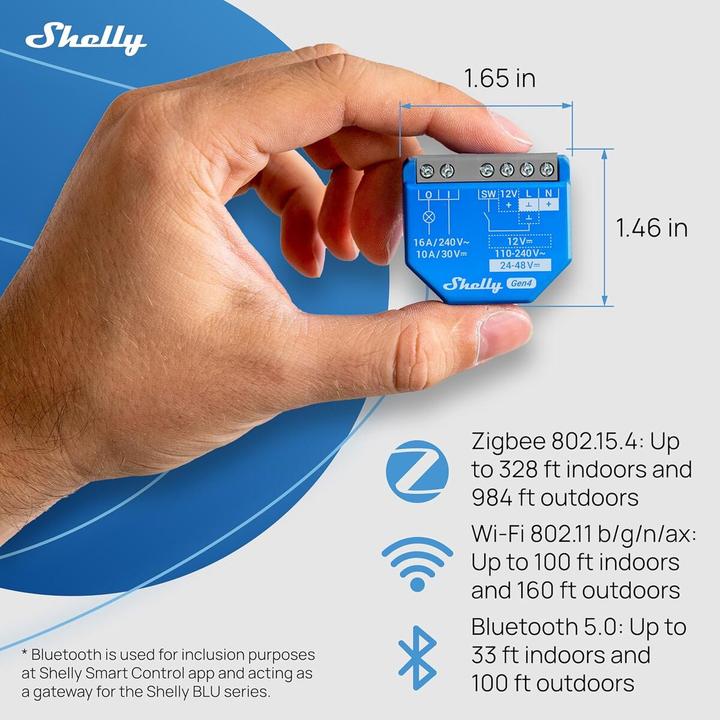

Dimensions: 38mm x 33mm x 17mm

Wireless: 802.11 b/g/n Wi-Fi, 2.4GHz

Operating temperature: 0°C to 40°C

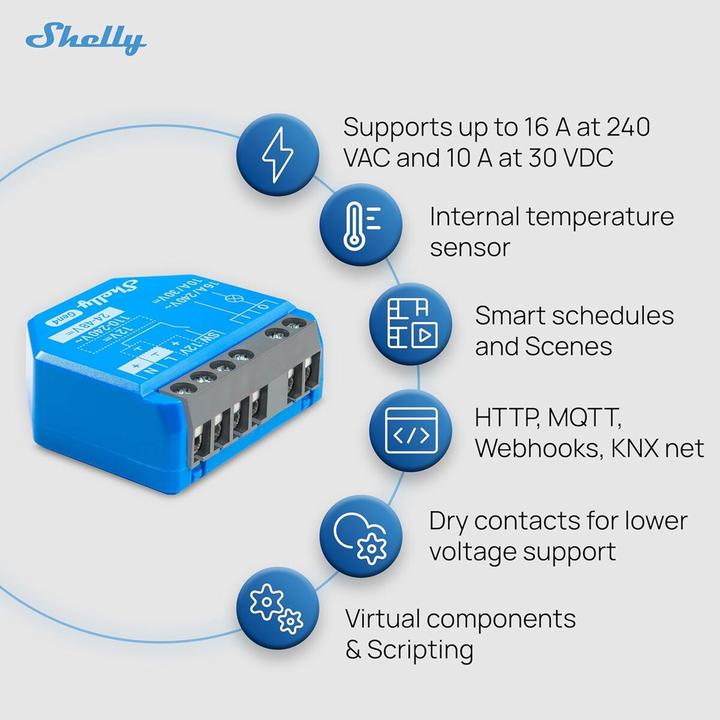

Dry contact relay: Yes - perfect for garage doors, gates and low voltage systems

Supports: MQTT, HTTP, webhooks, home assistant, REST API

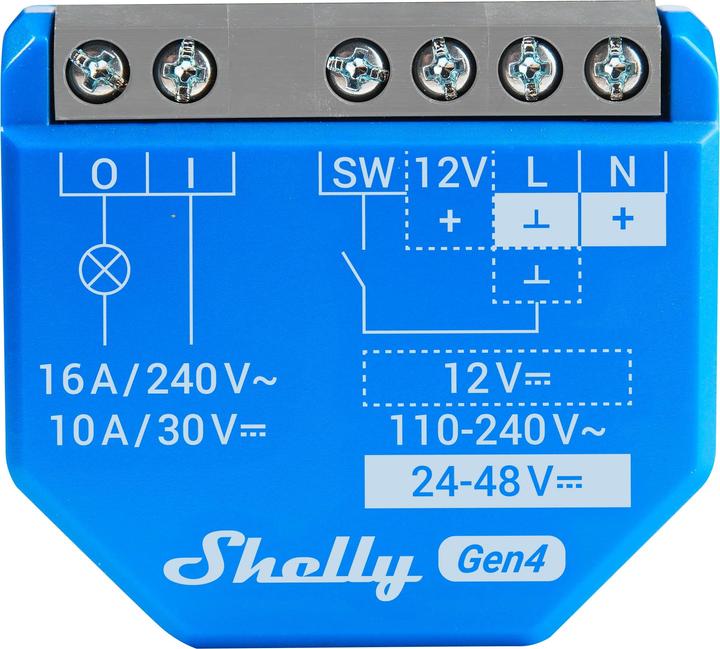

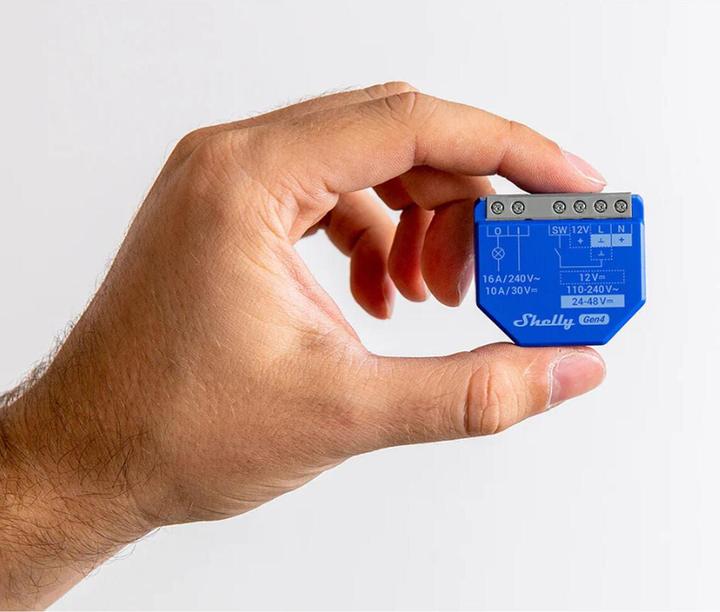

Actual product image Shelly 1 Gen4 (Switch actuator)

Key specifications

Actuator type

Nominal voltage

Mounting type

Smart Home Systems

A smart home system is a central platform or solution that connects smart devices and enables them to be controlled, automated and monitored.

Smart Home Protocol

A smart home protocol is a technical standard that defines how smart devices communicate with each other and exchange data, whether wireless or wired.

communicating

Items per sales unit

The sales unit is the grouping of article units into a saleable unit, which can be the smallest unit or a grouping for sale to the customer.

1 Gen4

Actuator

30-day right of return

General information

Colour

Material

Actuator properties

Smart home features

Origin

Voluntary climate contribution

Scope of delivery

Product dimensions

Package dimensions

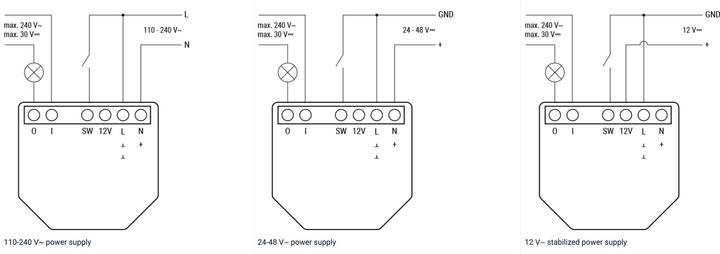

The actuator can be operated with an operating voltage of either 110-240 V AC or 12 V DC.

Flexible power supply

The module switches electrical loads with a maximum current of 16 A or a power rating of 3500 W.

High switching capacity

Due to the permissible operating temperature of 0-40 °C without a specified IP rating, the actuator is primarily intended for protected indoor areas.

Outdoor usage limitations
