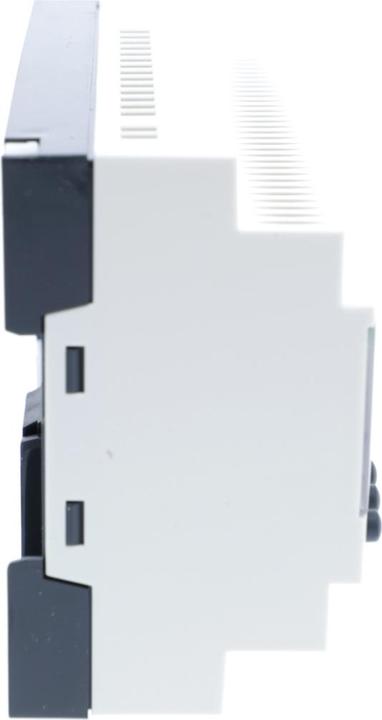

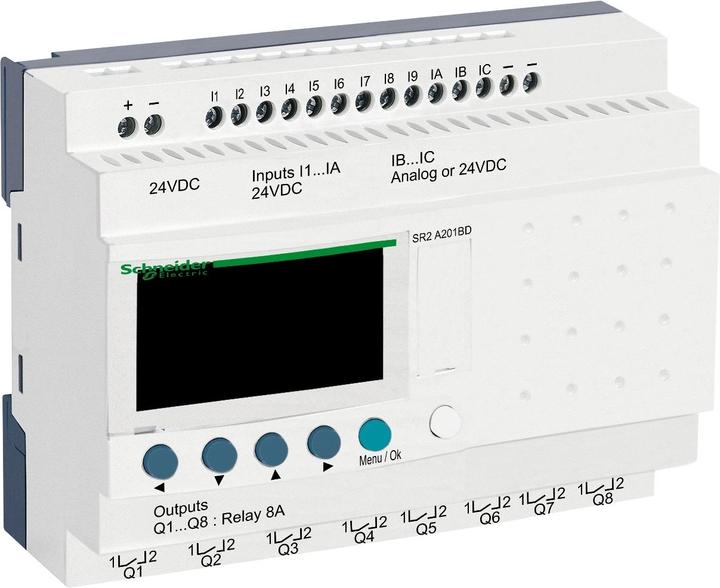

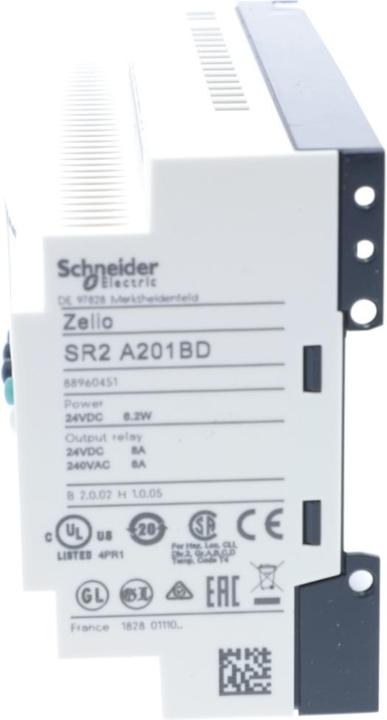

Schneider Electric Zelio process module

Series: Zelio Logic
Supply Voltage: 24 V dc
Output Type: Relay
Number of Outputs: 8
Input Type: Analog, discrete
Number of Inputs: 12

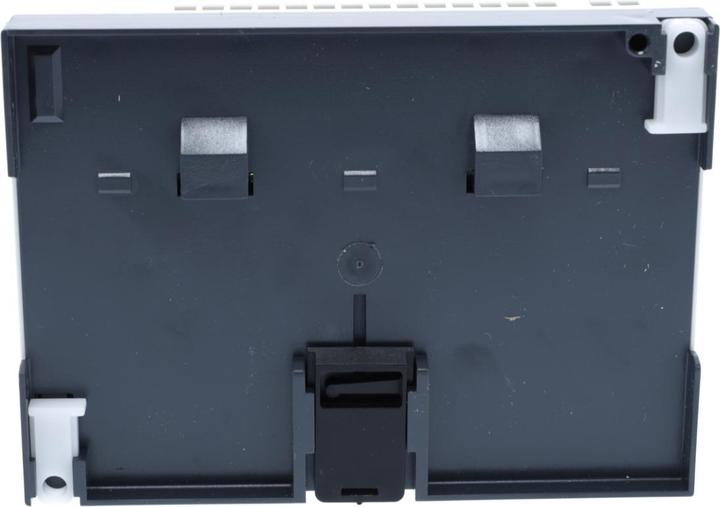

Mounting Type: DIN rail
Width: 107.6 mm
Length: 124.6 mm
Dimensions: 124.6 x 107.6 x 59.5 mm
Programmable Interface: Computer, operator device
Module Type: Logic control module
Maximum Operating Temperature: +55 °C

Zelio Logic Smart Relays – compact. Zelio Logic Smart Relays are designed for use in small automated systems and are utilized in industrial and commercial applications. The relays come with 10 or 26 I/O depending on the model and can feature up to 40 expanded I/O. Programming and Software: Easy programming can be done independently using the buttons on the front of the relay or on a PC using "Zelio Soft" software. Programming via a PC can be done either using LADDER language or in Function Block Diagram (FBD) language. Memory: The Zelio Logic Smart Relays feature memory buffering that allows programs to be copied to other Smart Relays. The memory enables the storage of a backup copy of the program before replacing the product, and for relays without a display or buttons, the copy program is automatically transferred upon power-up. LCD display with backlighting, DIN rail or panel mounting, includes real-time clock, 4 analog output channels, 10 ms cycle time, 10 years buffering (EEPROM memory), screw terminal connections, protection class IP20.
