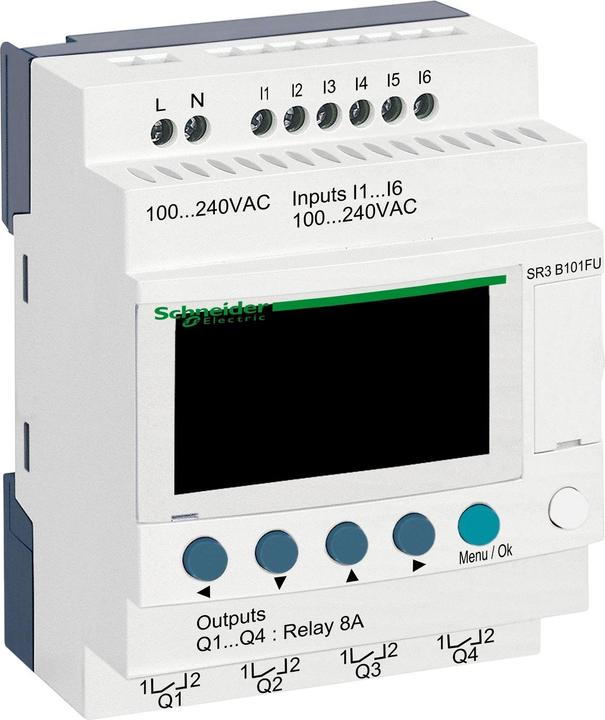

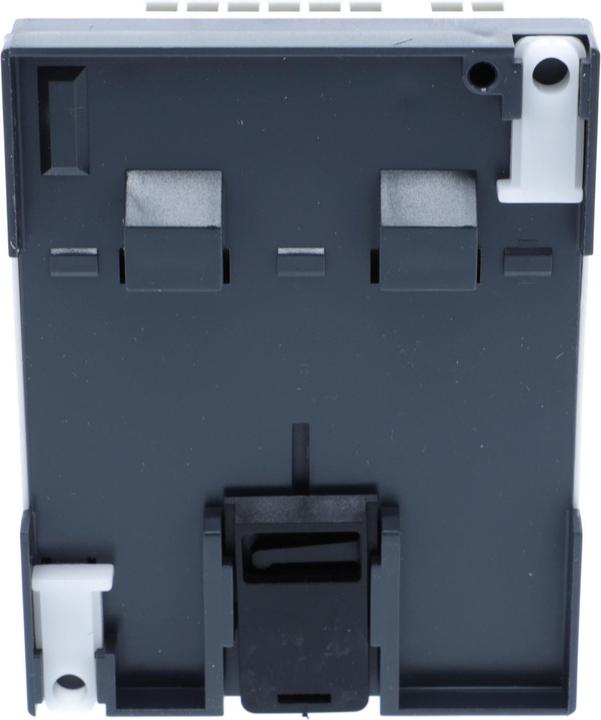

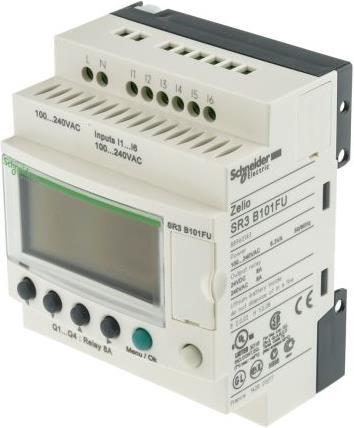

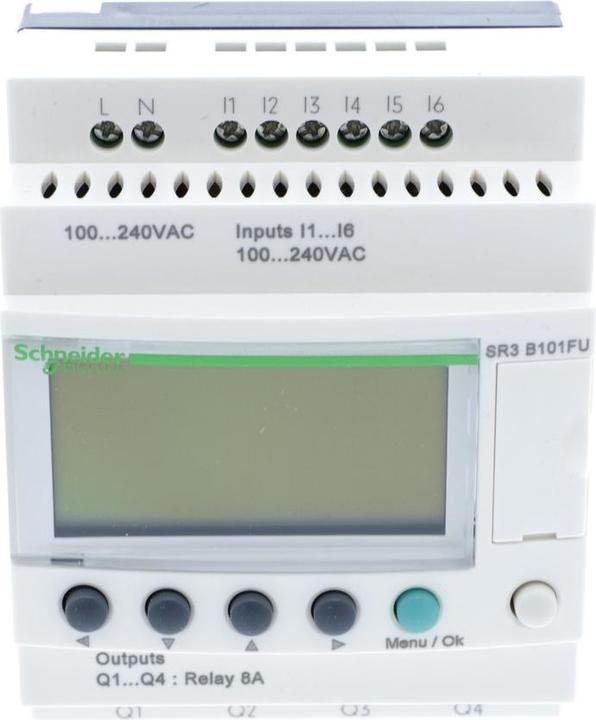

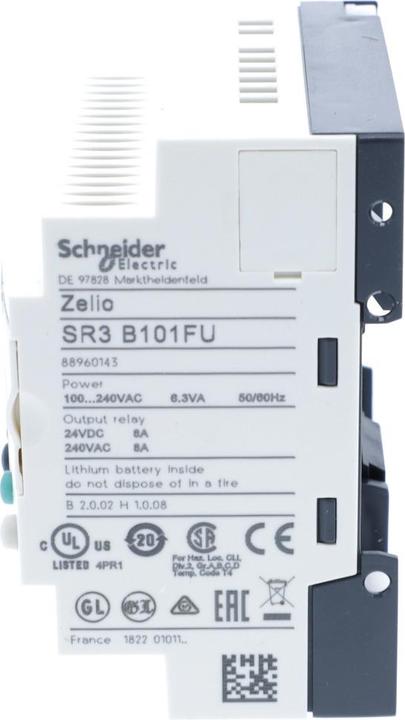

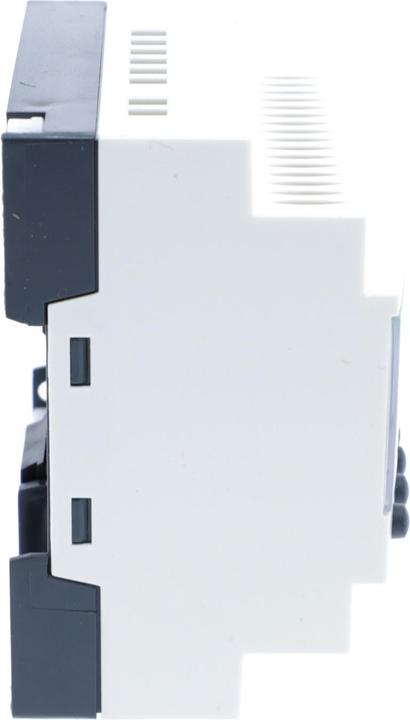

Schneider Electric Zelio process module

Series: Zelio Logic
Supply Voltage: 100 to 240 Vac
Output Type: Relay
Number of Outputs: 4
Input Type: Discrete
Number of Inputs: 6
Mounting Type: DIN Rail
Width: 90 mm
Length: 72 mm
Dimensions: 72 x 90 x 59.5 mm
Programmable Interface: Computer, Operator Panel
Module Type: Logic Control Module
Maximum Operating Temperature: +55 °C

Zelio Logic Smart Relays – Modular. Zelio Logic Smart Relays are designed for use in small automated systems and are utilized in industrial and commercial applications. The relays come with 10 or 26 I/O depending on the model and can feature up to 40 extended I/O. Programming and Software: Simple programming can be done independently using the buttons located on the front of the relay or on a PC using Zelio Soft software. Programming via a PC can be done in either LADDER language or Function Block Diagram (FBD) language. Memory: The Zelio Logic Smart Relays have a memory buffering feature that allows programs to be copied to other Smart Relays. The memory enables the storage of a backup copy of the program before replacing the product. For relays without a display or buttons, the copy program is automatically transferred upon power-up. LCD display with backlighting, DIN rail or panel mounting, includes real-time clock, 4 analog output channels, 10 ms cycle time, 10 years buffering (EEPROM memory), screw terminal connections, protection class IP20.
