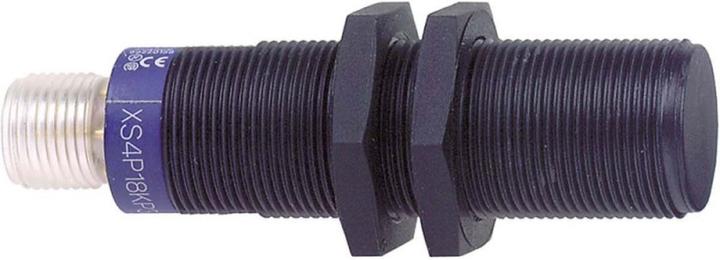

Schneider Electric XS4-Indu. Sew. M18, L70mm, PPS, Sn XS4P18MA230K

TE Sensors Proximity switch inductive XS4P18MA230K Manufacturer :TE Sensors Designation :Proximity switch inductive M18, Sn8mm Type :XS4P18MA230K Sensor length :70 mm Sensor diameter :18 mm Mechanical installation condition for sensor :not flush Switching distance :8 mm Suitable for safety functions :no Switching function version :NO contact Switching output version :2-wire Electrical connection version :1/2 inch plug connector Number of semiconductor outputs with signalling function :1 Type of actuation :metallic target Interface version :without Interface design for safety-related communication :without Housing design :cylinder, thread Coating housing :other Cascadable :no SIL to IEC 61508 :without Performance level to EN ISO 13849-1 :without Max. output current at safe output :200 mA Max. output current at safe output :200 mA Supply voltage :24..240 V Rated control supply voltage Us at AC 50 Hz :24..240 V Rated control supply voltage Us at AC 60 Hz :24..240 V Rated control supply voltage Us at DC :24...240 V Voltage type :AC/DC Switching frequency :2000 Hz With monitoring function of downstream devices :no Enclosure material :Plastic Flameproof :no Explosion protection category for gas :none Explosion protection category for dust :none Immunity to magnetic fields :interference-resistant against direct and alternating magnetic fields TE Sensors proximity switch inductive XS4P18MA230K: Further details XS4 inductive proximity switch in cylindrical M18 design, length 70mm, plastic housing PPS, switching distance Sn 8mm, power supply 24-240V AC/DC, plug connector 1/2 inch-20 UNF. EAN: 3389110919356.
