Schneider Electric XS4-Indu. Sew. M18, L62mm, PPS, Sn XS4P18MB230

TE Sensors proximity switch XS4P18MB230
Manufacturer: TE Sensors
Designation: Proximity switch inductive
Type: XS4P18MB230
Sensor length: 61.8 mm
Sensor diameter: 18 mm
Mechanical installation condition for sensor: Not flush
Switching distance: 8 mm
Suitable for safety functions: No
Switching function version: NC contact
Switching output version: 2-wire
Type of electrical connection: Cable radial
Type of actuation: Metal target
Type of interface: None
Type of interface for safety-related communication: None
Type of housing: Cylinder, thread
Coating of housing: Other
Cascadable: No
SIL to IEC 61508: None
Performance level to EN ISO 13849-1: None
Max. output current at safe output: 200 mA
Supply voltage: 24..240 V
Rated control supply voltage Us at AC 50 Hz: 24..240 V
Rated control supply voltage Us at AC 60 Hz: 24..240 V
Rated control supply voltage Us at DC: 24...240 V
Voltage type: AC/DC
Switching frequency: 2000 Hz
With monitoring function of downstream devices: No
Housing material: Plastic
Flameproof: No
Explosion protection category for gas: None
Explosion protection category for dust: None
Immunity to magnetic fields: Interference-resistant against direct and alternating magnetic fields

TE Sensors proximity switch XS4P18MB230: further details

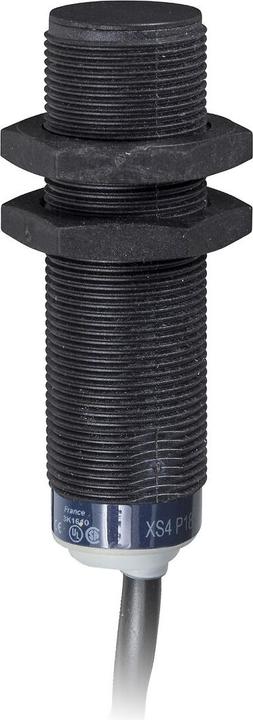

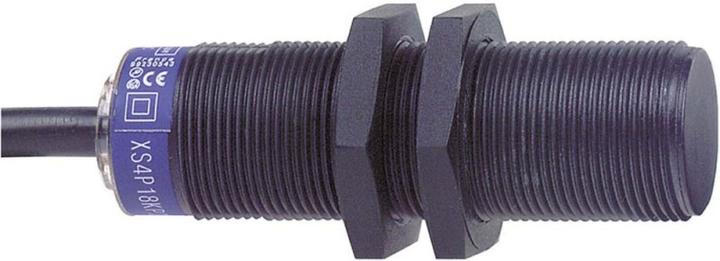

XS4 inductive proximity switch in cylindrical M18 design, length 62 mm, plastic housing PPS, switching distance Sn 8 mm, power supply 24-240 V AC/DC, 2 m connection cable.
