Product details

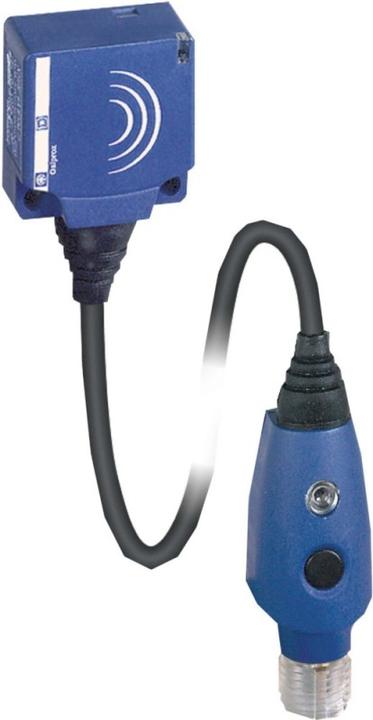

TE Sensors proximity switch inductive XS9E111A2L01M12 Manufacturer :TE Sensors Designation :Proximity switch inductive analogue,2L,24VDC, M12 Type :XS9E111A2L01M12 Width of sensor :26 mm Height of sensor :40 mm Length of sensor :26 mm Sensor diameter :12 mm Mechanical installation condition for sensor :flush Switching distance :10 mm Suitable for safety functions :no Switching function version :NO contact Switching output version :2-wire Electrical connection version :M12 plug connector Number of semiconductor outputs with signalling function :1 Type of actuation :metallic target Interface version :without Interface design for safety-related communication :without Housing design :rectangular Housing coating :other Cascadable :no SIL to IEC 61508 :without Performance level to EN ISO 13849-1 :without Max. output current at safe output :20 mA Max. output current at safe output :20 mA Supply voltage :24 V Rated control supply voltage Us at DC :12...24 V Voltage type :AC/DC Switching frequency :1000 Hz With monitoring function of downstream devices :no Housing material :Plastic Flameproof :no Explosion protection category for gas :none Explosion protection category for dust :none Immunity to magnetic fields :interference-resistant against magnetic DC field TE Sensors proximity switch inductive XS9E111A2L01M12: further details XS9 inductive proximity switch design 26x26x13, plastic housing PBT, switching distance Sn 10mm, power supply 24V DC, 0.15m connection cable + plug connector M12. EAN: 3389110356038.
