Schneider Electric Proximity switch inductive XS108B3NAL2

TE Sensors Inductive Proximity Switch XS108B3NAL2

Manufacturer: TE Sensors
Description: Inductive proximity switch
Sensing distance: 2.5 mm
Suitable for safety functions: no
Switching function type: Normally open
Output type: NPN/NPN
Electrical connection type: Radial cable
Number of semiconductor outputs with signaling function: 1
Number of safe semiconductor outputs: 1
Actuation type: Metallic target
Housing design: Cylinder, threaded
Housing coating: Nickel-plated
Cascadable: no
Max. output current at safe output: 200 mA
Supply voltage: 12..24 V
Voltage type: AC/DC
Switching frequency: 2500 Hz
Housing material: Metal
Pressure resistant: no
Explosion protection category for gas: none
Explosion protection category for dust: none
Interference immunity against magnetic fields: immune to magnetic static fields

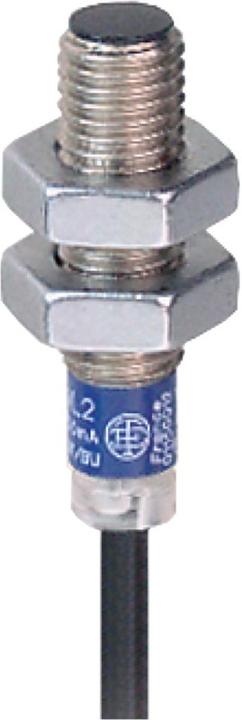

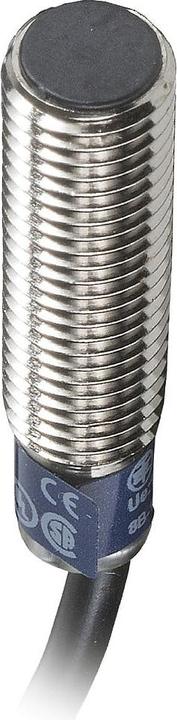

This OsiSense XS cylindrical (M8 thread) inductive proximity sensor features a PPS sensing surface and a nickel-plated brass housing. It has a sensing distance of 2.5 mm, normally open NPN output, and is pre-wired (2 m cable). It operates with a supply voltage of 12 to 24 VDC. This universally applicable cylindrical inductive proximity sensor with thread is flush mountable and has a larger detection range. Thanks to its external thread and double nuts, it can be directly mounted on a surface or bracket and is CSA and UL certified.
