Schneider Electric Off Delay Timer Relay

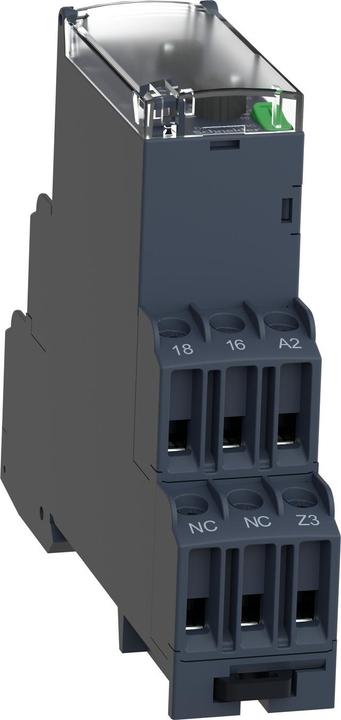

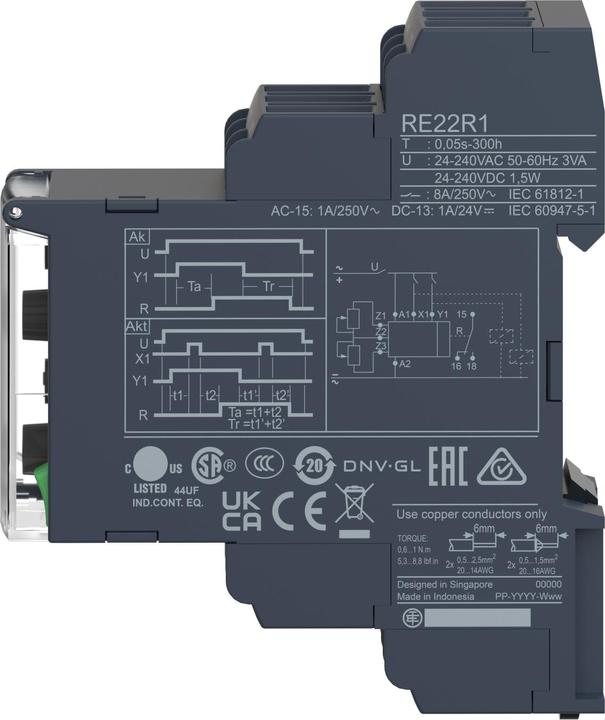

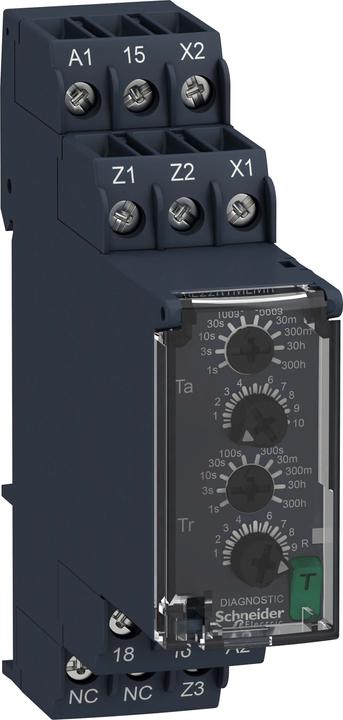

Harmony Time. Electronic time relay for controlling automation applications with a width of 22.5 mm for mounting on a DIN rail. It features a time function for asymmetric blinking (with individually adjustable times), impulse or pause starting, as well as the ability to sum contact interruptions. The time range spans from 0.05 s to 300 h. A relay changeover contact at the output can handle loads of up to 8 A. Settings are made via control elements on the front, which can be protected against changes under a transparent cover. With a illuminated scale pointer, the adjustment of the potentiometers is clearly visible even from a distance. The front diagnostic switch allows the output relay to be activated for testing the overall application, especially during long time functions. Closing the transparent cover automatically resets the diagnostic switch. LED indicators provide information about the status. The wide voltage power supply (24-240 VAC/DC) allows for universal use. Connection is made via screw terminals.
