Schneider Electric MTN6260-7760

Schneider Electric SpaceLogic KNX Touch MTN6260-7760

Manufacturer: Schneider Electric
Designation: SpaceLogic KNX Touch IP 7 inch Smart Screen
Type: MTN6260-7760
Bus system KNX: No
Bus system KNX radio: No
Bus system radio bus: No
Bus system LON: No
Bus system Powernet: No
Other bus systems: Without radio
Bidirectional: Yes
Composition: Control element with frame
Design: Control panel
Mounting type: Surface-mounted
Designation field: Yes
Display: Colour
Touch function: Yes
Other interfaces: Other
With bus coupling: No
Material: Plastic
Material quality: Thermoplastic
Colour: Black
Protection class (IP): IP30

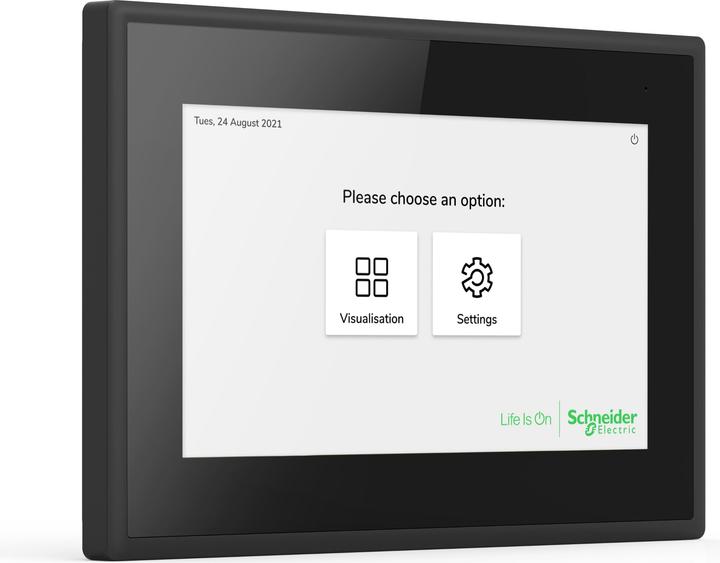

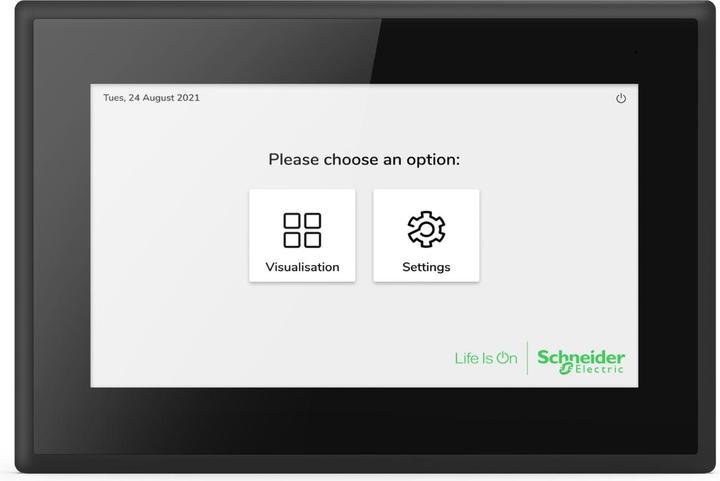

The SpaceLogic KNX Touch IP 7 inch is a touchscreen for displaying visualizations from the Wiser for KNX or spaceLYnk logic controllers. The screen can be installed in both residential and commercial buildings and in new or existing KNX installations. The touch panel can display the widget-based touch visualization or the PC/tablet visualization and offers the possibility to display realistic graphics. It can also display the new Wiser KNX app if the user wants to control their KNX installation in a similar way to their smartphone. The entire interaction with the touch panel is very simple and efficient, adapted to the needs of the modern concept of smart homes and buildings. It can be installed both horizontally and vertically in portrait or landscape format. The touch panel is equipped with an integrated application that makes configuration quick and easy. Thanks to the Wi-Fi connectivity, the installation of the touch panel is easier and offers freedom in the choice of installation location. An over-the-air update (OTAU) function available in the touch panel keeps the solution up to date and secure. The touch panel can be surface-mounted wherever a 24V cable is available for the power supply.
