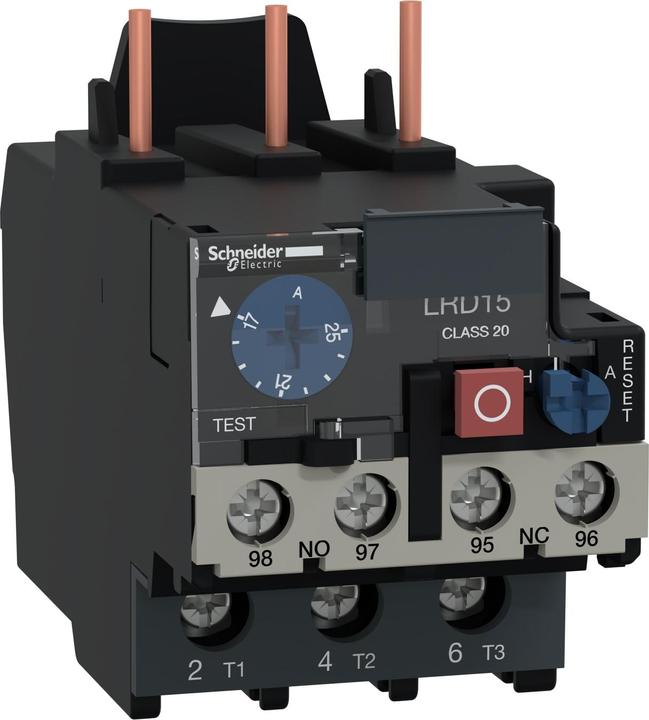

Schneider Electric Motor protection relay, 17-25A, 1S+1Ö, class LRD1522

1Ratings
Delivered between Wed, 15.4. and Fri, 17.4.
Only 3 pieces in stock at third-party supplier
Supplied by
Conrad CH
free shipping

Number of poles2

Product details

Schneider Electric Motor Protection Relay LRD1522

Manufacturer: Schneider Electric
Designation: Motor Protection Relay 1S, 1Ö
Type: LRD1522
Adjustable Current Range: 17 to 25 A
Max. Rated Operating Voltage: 690 V
Mounting Type: Direct Mounting
Connection Type Main Circuit: Screw Connection
Number of Auxiliary Contacts as Normally Open: 1
Number of Auxiliary Contacts as Normally Closed: 1
Tripping Class: Class 20
Reset Function Input: No
Automatic Reset Function: Yes
Button Reset Function: Yes

Motor protection relay for 0.06 to 75 kW. The TeSys LRD thermal overload relays are extremely reliable and cover the entire motor range up to 150 A. They feature manual-automatic reset and are available with various terminal options. When combined with TeSys D, they form an extremely compact starter.

Key specifications

Electric current output
25 A
Output current type
AC
Number of poles
2x

General information

Item number
30105332
Manufacturer
Schneider Electric
Category
Relays
Manufacturer no.
LRD1522
Release date
25.4.2023

Relay properties

Electric current output
25 A
Output current type
AC
Switching function
Changer
Number of openers
1x
Number of closers
1x
Number of poles
2x

Origin

Country of origin
France

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

CO₂ emissions
29.26 kg
Climate contribution
CHF 0.70

Scope of delivery

Scope of delivery
1 pc.
