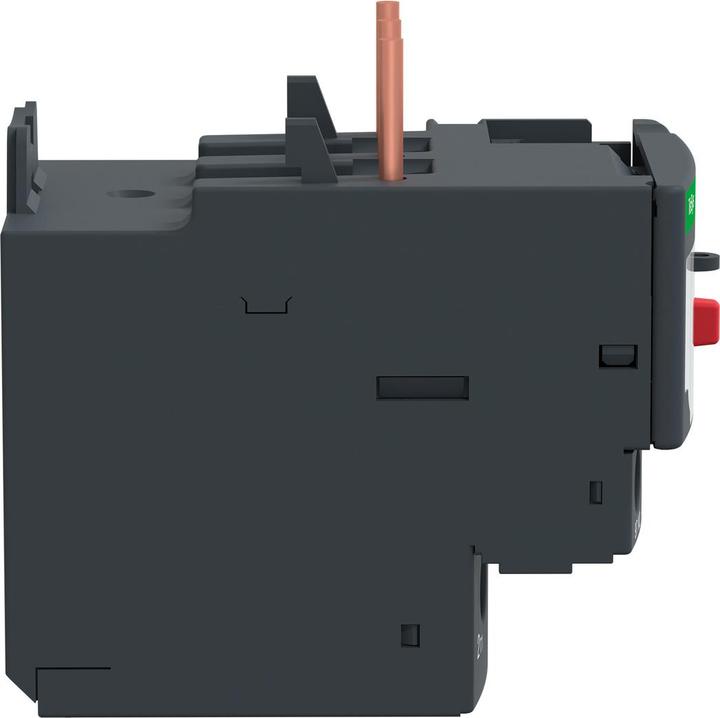

Schneider Electric Motor protection relay 13A

FLC Motor power: 9 to 13 A
Rated contact current: 13 A
Contact configuration: 3P
Product series: TeSys
Rated contact voltage: 690 V AC
Mounting type: Direct contactor
Series: LRD1
Contact configuration: Normally open/normally closed contact
Number of auxiliary contacts: 2
Reset type: Automatic, manual
Width: 45 mm
Operating temperature range: -20 to +60 °C

This is a three-pole thermal overload relay designed to protect AC circuits from overload, phase failure, long start-up times, and permanently blocked motors. It features a setting dial for adjustable relays, a test button, a stop button, manual/automatic reset, and a trip indicator. The cover is designed for sealing and includes one normally closed and one normally open contact as auxiliary contacts. It can be mounted directly under three-pole contactors or independently on DIN rails. The insulation voltage is 600 V, with a breakdown resistance of 6 kV.
