Product details

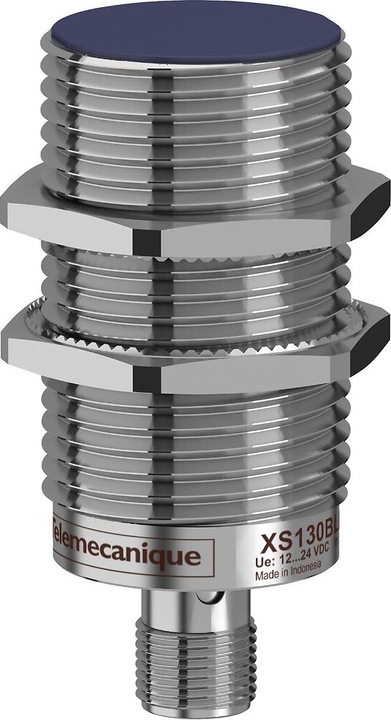

Schneider Electric inductive sensor XS130BHPAM12
Manufacturer: Schneider Electric
Designation: Inductive sensor 30 PNP NO 12-24V
Type: XS130BHPAM12
Width of sensor: 0 mm
Height of sensor: 30 mm
Length of sensor: 68 mm
Sensor diameter: 30 mm
Mechanical installation condition for sensor: Other
Switching distance: 15 mm
Suitable for safety functions: No
Switching function version: NO contact
Switching output version: PNP
Electrical connection version: M12 plug connector
Number of semiconductor outputs with signaling function: 1
Type of actuation: Other
Interface version: Without
Interface version for safety-related communication: Without
Housing design: Cylinder, thread
Coating housing: Nickel-plated
Cascadable: No
SIL to IEC 61508: Without
Performance level to EN ISO 13849-1: Without
Max. output current at safe output: 10 mA
Supply voltage: 12-24 V
Rated control supply voltage Us at AC 50 Hz: 0 V
Rated control supply voltage Us at AC 60 Hz: 0 V
Rated control supply voltage Us at DC: 12-24 V
Voltage type: DC
Switching frequency: 200 Hz
With monitoring function of downstream devices: No
Enclosure material: Metal
Flameproof: No
Explosion protection category for gas: None
Explosion protection category for dust: Without
Immunity to magnetic fields: Immunity to DC magnetic field
Further details: Proximity switch inductive M30 NC PNP M12, 3-wire connection, flush mounting, increased switching distance. EAN: 3389119641111.
